- Product name:high pressure grinding roll tungsten carbide stud manufacturer
- Application:high pressure grinding roll
- Material:100% virgin tungsten carbide
- Grade:YG6C/YG8C/YG11C/YG15C
- Certification:ISO9001:2008,ISO9001:14001
- Service:OEM & ODM
- Trial order:Acceptable
- Payment:L/C, T/T etc
- Shipment:by sea or by air
- Delivery:within 20 workdays after payment done
- Place of Origin:CN;HUN
- Brand Name:Rixin /Mingri
- Model Number:carbide stud-6

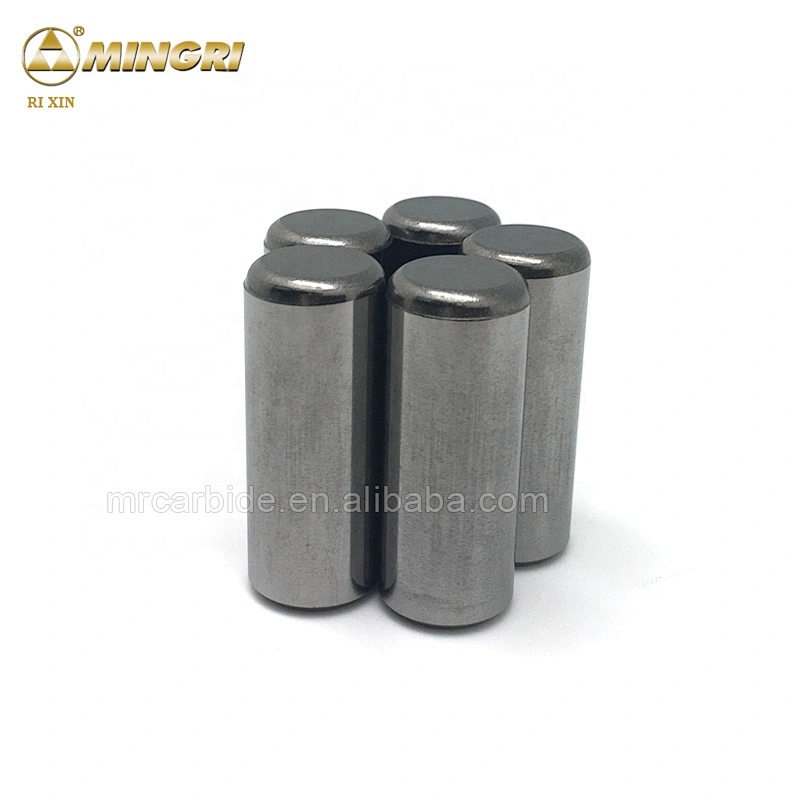

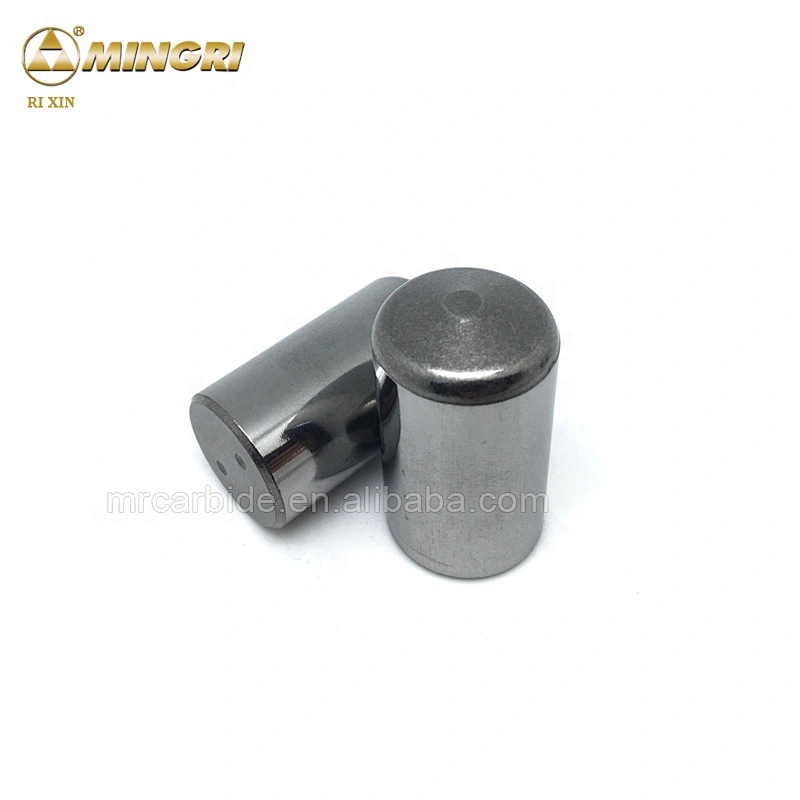

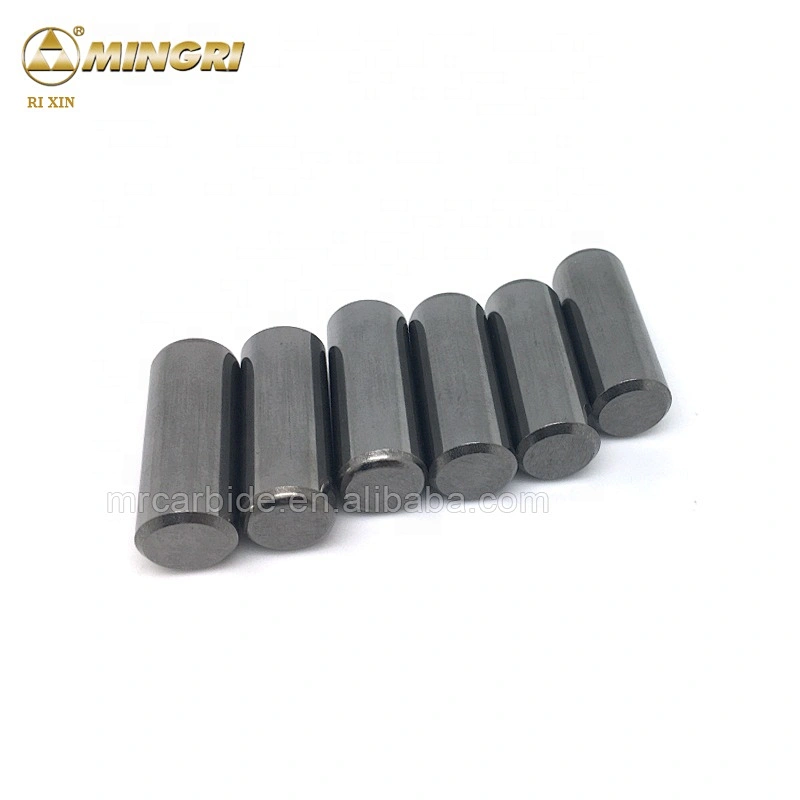

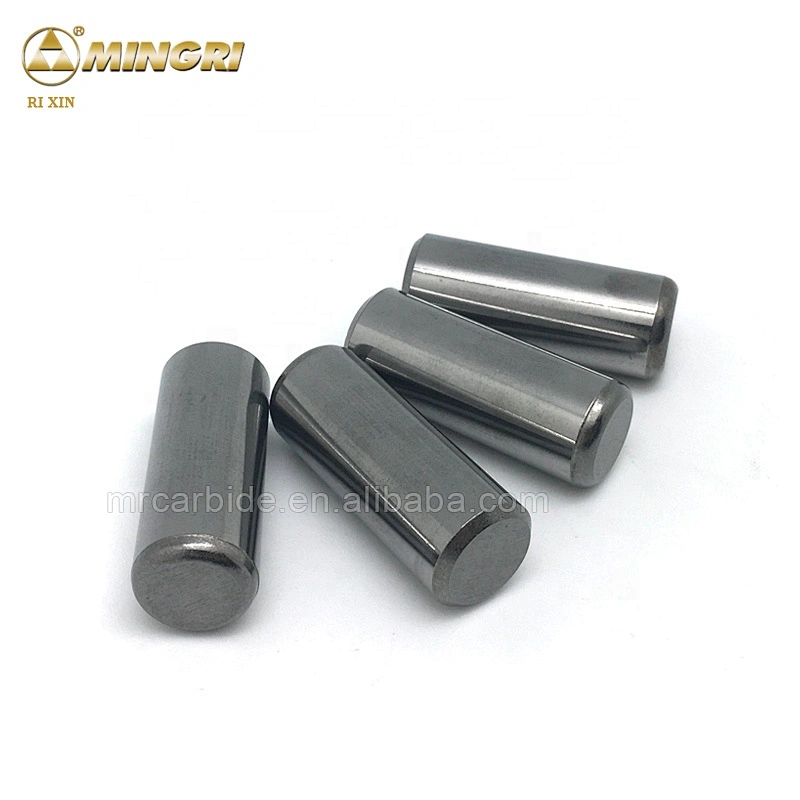

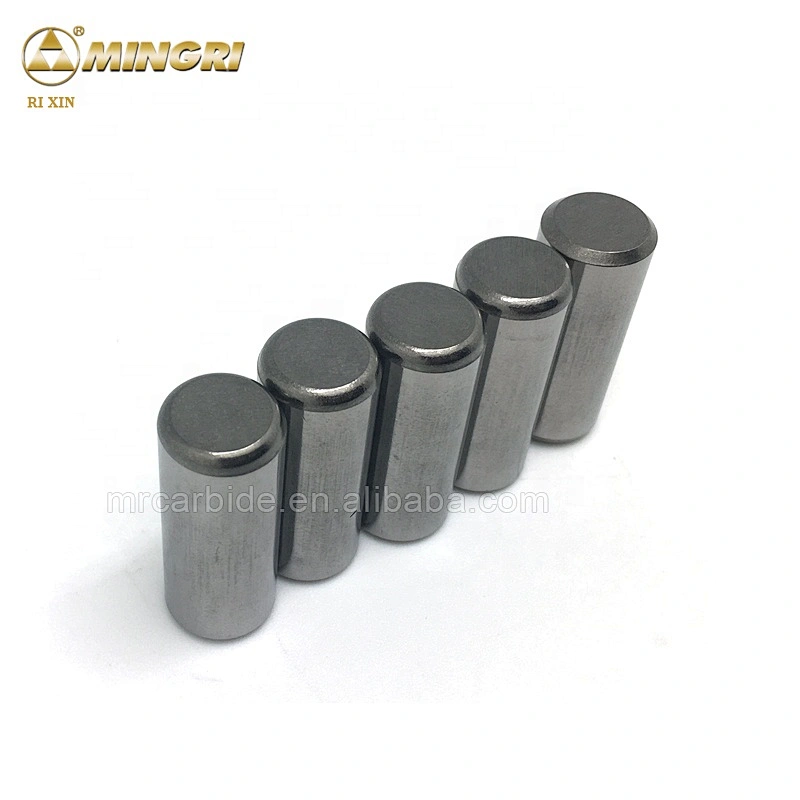

cemented carbide stud high pressure grinding roller machine for breaking cement raw meal YG15C
Are we a powerful manufacturer for cemented carbide products?
Is there any type or grade of cemented carbide that you need?
How to get one-on-one service?
Let’s find answers

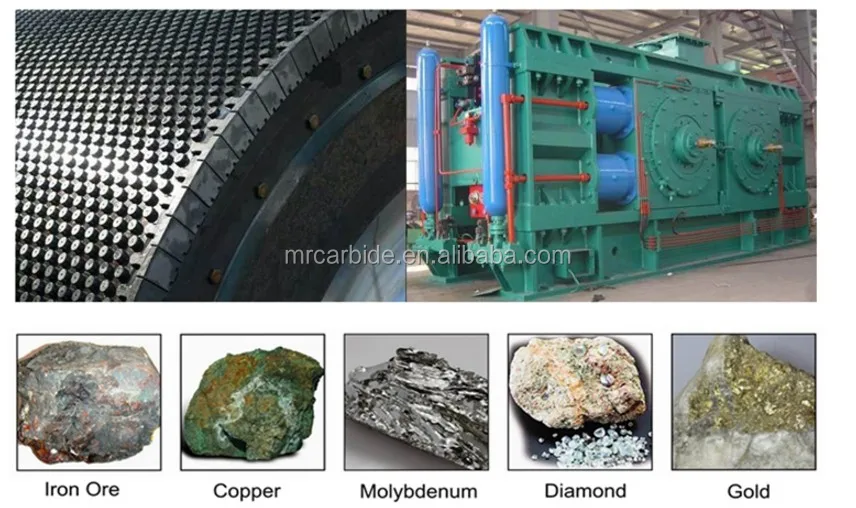

Application of cemented carbide stud high pressure grinding roller machine for broken iron ore RX15
High Pressure Grinding Roller is an energy-efficient crushing equipment of new technologies, widely used in grinding cement clinker,limestone,bauxite,iron ore.. High performance of carbide stud extends the life of High Pressure Grinding Roller. Zhuzhou Mingri provide quality carbide studs with good wear resistance and high compressive strength, can satisfy the requirements of different conditions.
Our Advantages:
1.Hemispherical top, protect the studs from being destroyed by stress concentration.
2.Round edges, protect the stubs being damaged during production, transportation, installment and using.
3.HIP sintering ensure good compactness and high toughness for the products.
4.Special technology to eliminate the surface stress after surface grinding, and increase the surface hardness at the same time.
5.Grease used on surface of the products to avoid oxidization.
Grades below are exclusive grades we developed for rolling machine. Good wear resistance and high strength are suitable for metal smashing with high working efficiency. Lifetime of carbide stud is over 8000-10000 hrs iron ore and 25000hrs for cement.
Grades of Tungsten carbide tire studs/carbide tire pins/carbide tire stud spikes
| Grade | Physical Properties | Chemical Composition(%) | ||||
Hardness (HRA) | Bending Strength (>=N/mm²) | Density (g/cm³) | Coercivity (kA/m) | Cobalt | Carbon | |
| YG15C | 85.0~86.5 | 2500 | 13.90~14.10 | 4.5~6.5 | 14.7~15.3 | 4.90~5.50 |
| YG20 | 86.0~87.5 | 2450 | 13.40~13.60 | 8.0~11.0 | 19.7~20.4 | 4.50~4.80 |
| YG15 | 87.0~88.5 | 2800 | 13.95~14.15 | 7.0~10.0 | 14.1~14.8 | 4.95~5.60 |
| RX650 | 87.8~90.0 | 2950 | 13.95~14.15 | 8.0~10.5 | 14.5~14.9 | ----- |
| RX20 | 85.8~87.2 | 2600 | 13.87~14.17 | 5.8~8.0 | 14.8~15.2 | ----- |
Other grades may be offered by customers' requirements.

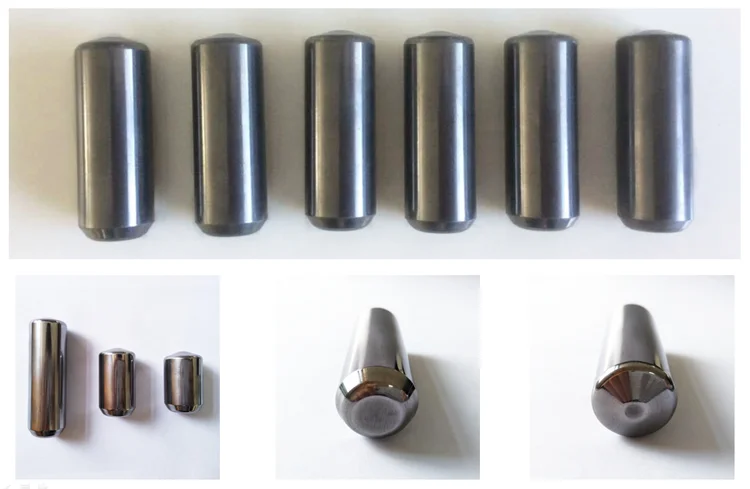

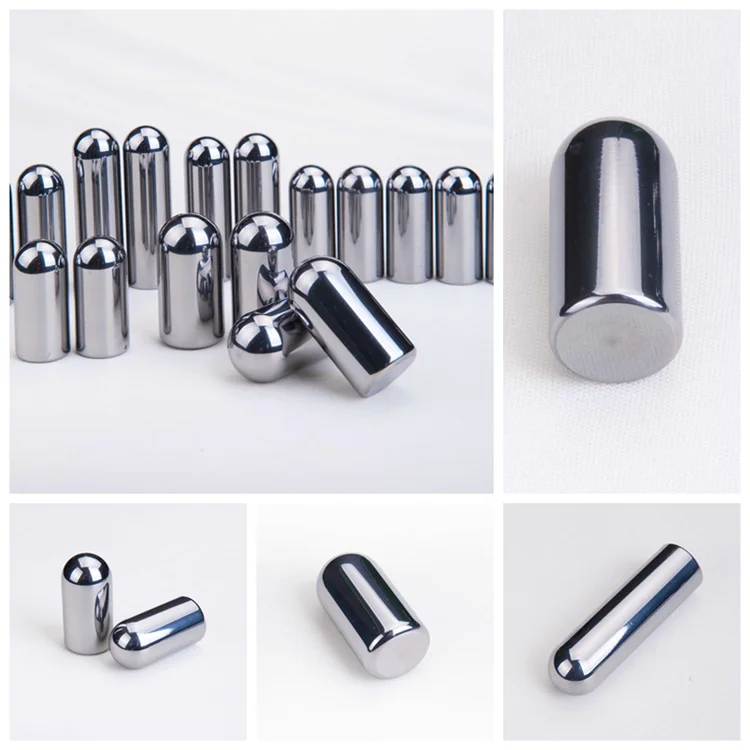

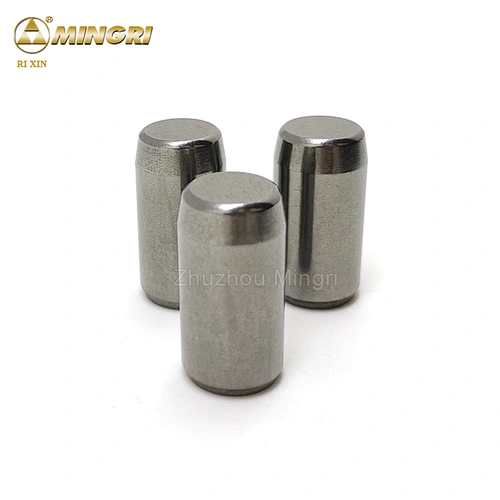

Pictures of Tungsten carbide tire studs/carbide tire pins/carbide tire stud spikes
Next please choose the types that you want

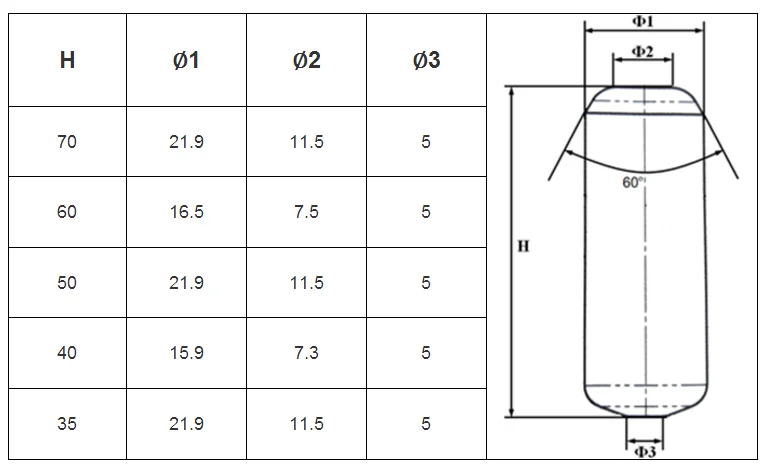

Product types of Tungsten carbide tire studs/carbide tire pins/carbide tire stud spikes
All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.
Enterprise certifications
As one of the most professional manufacturers of tungsten carbide products in China, Zhuzhou Ming Ri Cemented Carbide Co., Ltd supplies a wide variety of high quality products for customers
worldwide with management principle of"stable quality & reliable cooperation".
We passed ISO9001:2000 in 2003 and keep improving the quality everyday. We have been always trying our best to provide our customers with high quality, the best price and satisfactory services.
Why choose us?
Hello,konw more details about sending an effective inquiry email
is convenient for you and save time for everyone.

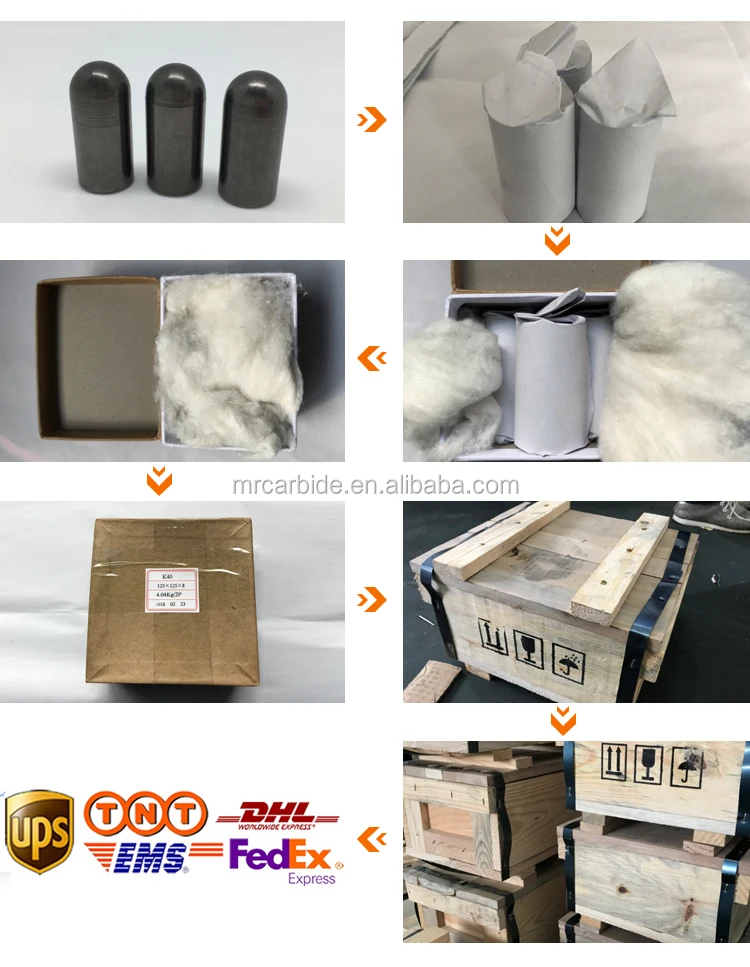

| Packing | Carton and inner plastic box. |
| Shipping | UPS,TNT,EMS,Fedex,DHL,or as you request. |
Zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of 2001 with the investment of RMB 40 million. We have up-to-date production machine line and a lot of technicians.
Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten carbide hometown , convenient transportation, from changsha airport just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours. A favorable peripheral environment for cemented carbide manufacturing provides a natural barrier. Convenient traffic for tomorrow's internationalization laid a wide road.
We specialize in various of tungsten carbide products. Our products are sold to the UK, Europe, Japan, Korea, Taiwan area and Southeast Asia.
We strive for long-term business relationships with all customers, and look forward to being your first choice for your source of carbide.
