- Name:high hardness concrete milling machine cemented carbide tips pins
- Material:100% Virgin Tungsten Carbide
- Usage:tool parts
- Grade:YG8
- Size:Depends on you
- keyword:bush hammer carbide tips
- Application:brazed on round litchi mill
- Certificate:ISO9001:2008
- Advantage:18 Years' Experience
- Color:Hip Sintering
- Place of Origin:CN;HUN
- Brand Name:Rixin
- Model Number:carbide tip-2

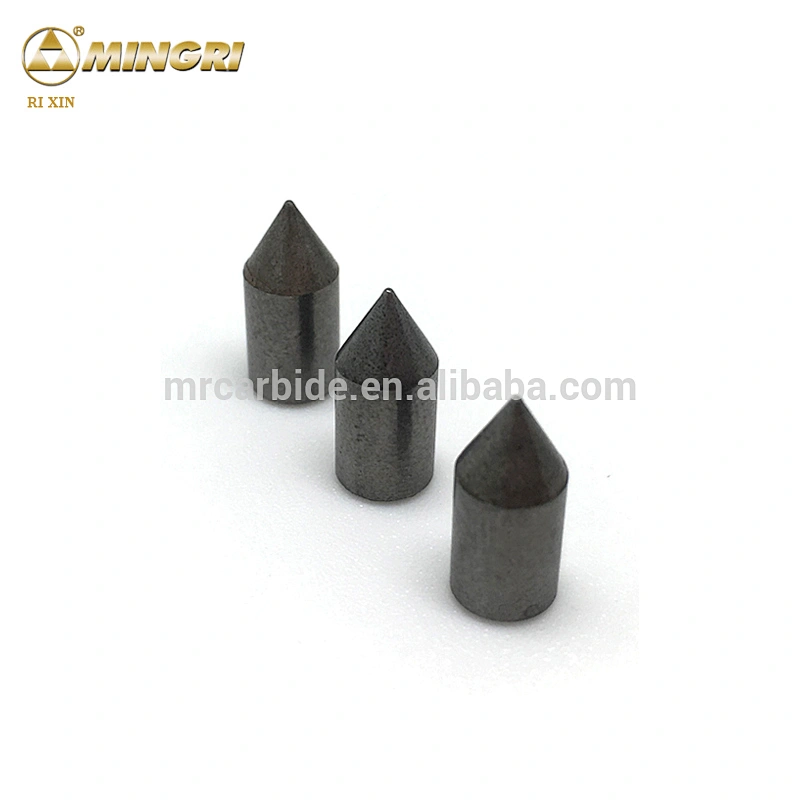

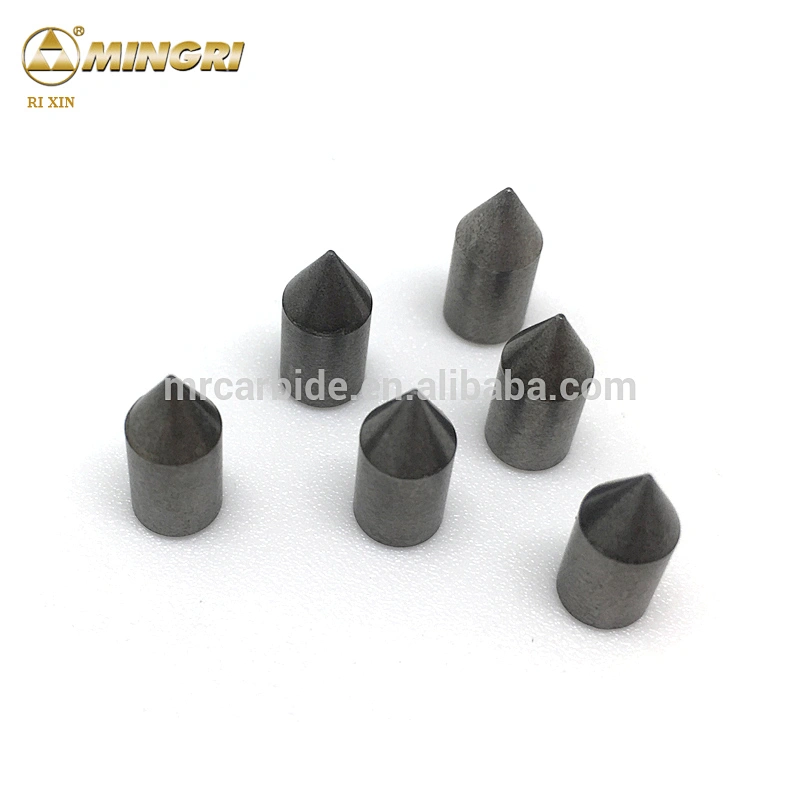

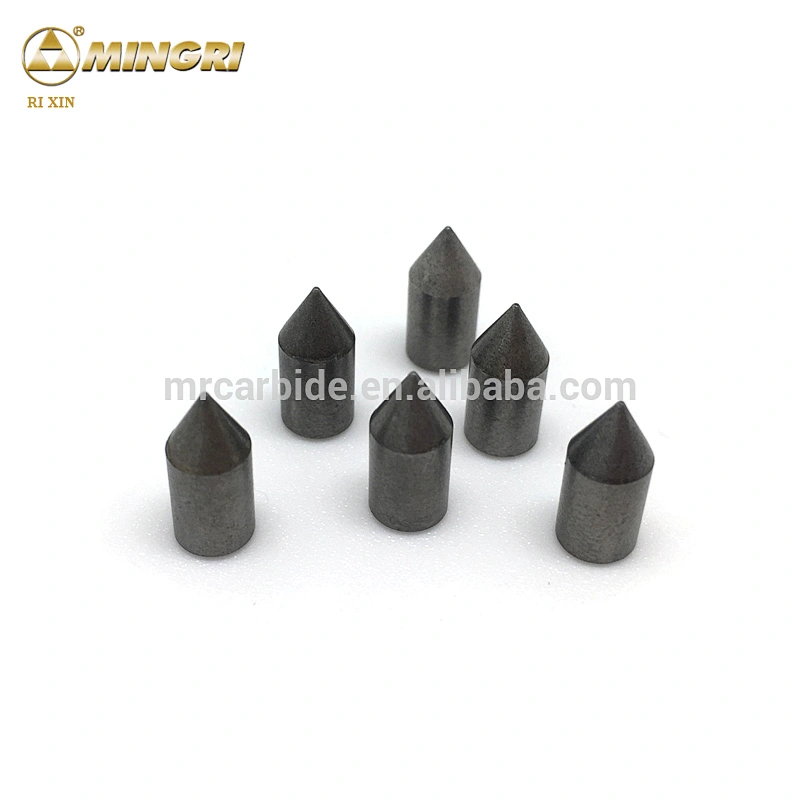

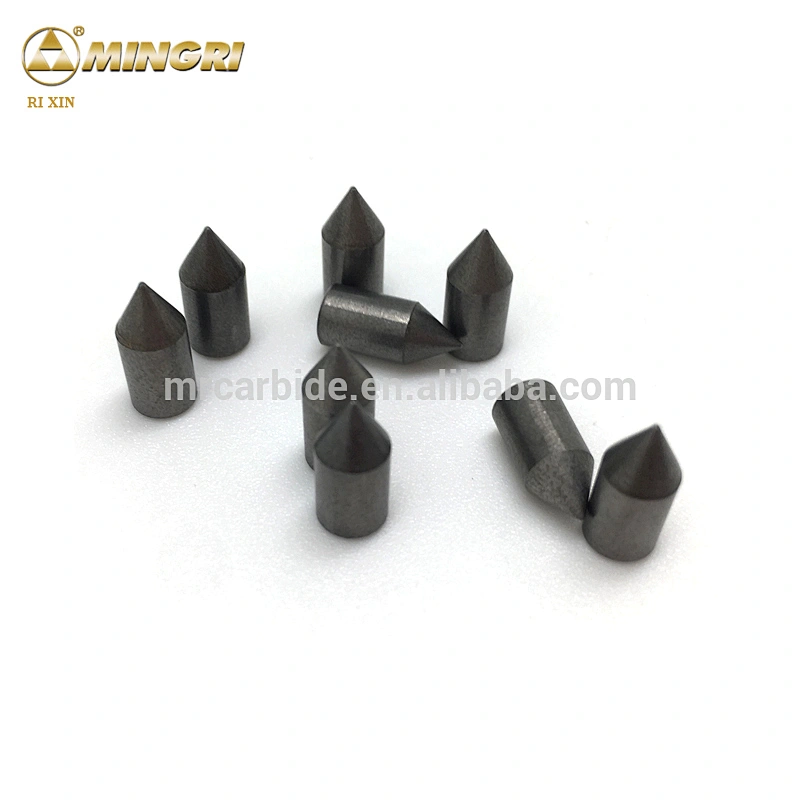

high hardness concrete milling machine cemented carbide tips safe pins
| Grade | Co(%) | Density(g/cm3) | HRA | T.R.S (MPa) |
| YG6 | 6 | 14.85-15.0 | 90.5 | 2400 |
| YG8 | 8 | 14.65-14.8 | 89.8 | 2800 |
| YG10X | 10 | 14.3-14.5 | 91 | 2500 |
| Specification | Diameter | Length | V(mm3) |
| MD3070 | 3.0 | 7.0 | 40.9 |
| MD3575 | 3.5 | 7.5 | 57.4 |
| MD3675 | 3.6 | 7.5 | 60.1 |
| MD4575 | 4.5 | 7.5 | 84.8 |
| MD4585 | 4.5 | 8.5 | 101 |
| MD5011 | 5.0 | 11 | 170 |
| MD5272 | 5.2 | 7.2 | 97.5 |
zhuzhou long lifetime concrete milling machine tungsten carbide tips
Widely used in stone litchi surface grinding head,concrete milling machine.
1. About raw materials and powder:
Soon after the order is confirmed, bush hammer carbide tips will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine.
2. About pressing:
Before mass production, we need to do a trial pressing and sintering for bush hammer carbide tips, and we check the appearances and the sizes of bush hammer carbide tips samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production;
3. About Furnace:
1).How many furnaces?
10 sets of vacuum sintering furnace and 1set of HIP
10 sets of sintering furnace and one set of HIP in the factory ensure the best quality and production capacity.
4. About cleaning/tumbling :
1). clean/tumble bush hammer carbide tips to make the products look more beautiful.
2). bush hammer carbide tips can be ground and sharp according to customers’ order tolerance requirement.
5 About laboratory:
1.How do you produce samples for control?
We sample each batch RTP into pressing and sintering, only when certificated by the laboratory, the RTP can be put into mass production.
Packing and delivery of brazed on Bush Hammer for Concrete Litchi Surface Grinding Carbide pins tips
step 1, wrapped bush hammer carbide tips in paper to avoid bush hammer carbide tips to broke
step 2, put the bush hammer carbide tips in inner small carton box
step 3, put the inner box into outter carton and fill the carton with foamed plastic
step 4, wrap the carton with packaging tape
step 5, you can choose any delivery way such as DHL,TNT,UPS ect.
230 workers, 8000 m2non-dust workshop, 18 years experience , 10000 sets mould, 5 workshop included grinding powder workshop, pressing workshop, sintering workshop, processing workshop, mould production workshop, production capacity 50tons/month, well-known brand ”Ri Xin” has registered in Europe for 6 years , ISO, CE&FDA certificated, one hour reach Shanghai port, this is how we keep superior quality and competitive offers for global valued customers.
We specialize in various of tungsten carbide products. Our products are sold to the UK, Europe, Japan, Korea, Taiwan area and Southeast Asia.
We strive for long-term business relationships with all customers, and look forward to being your first choice for your source of carbide
Main Products
Our main products cover cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, also we can make all kinds of customized proposal to meet customers’ requirement.
