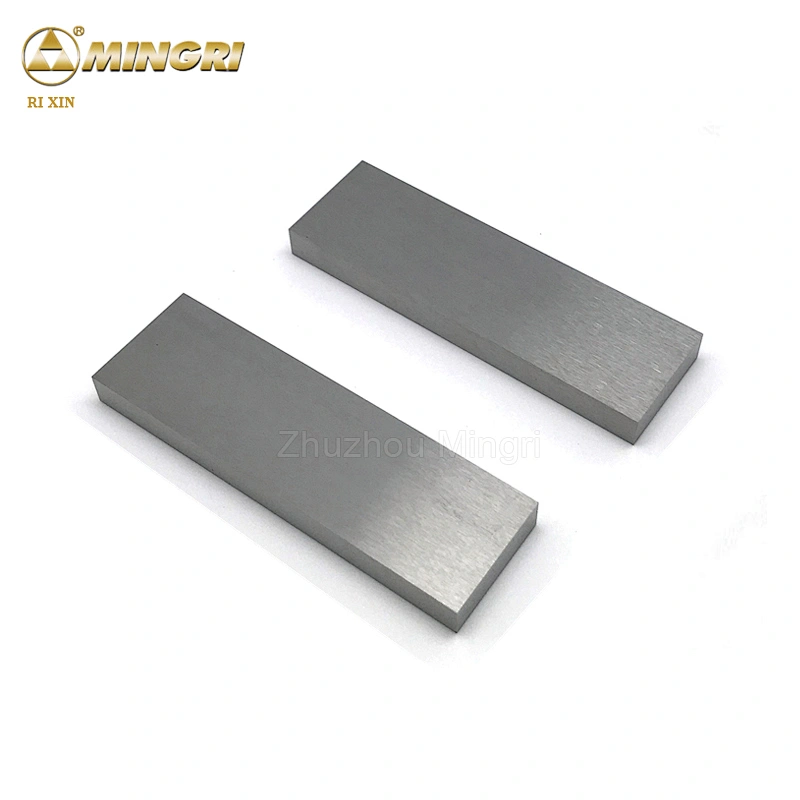

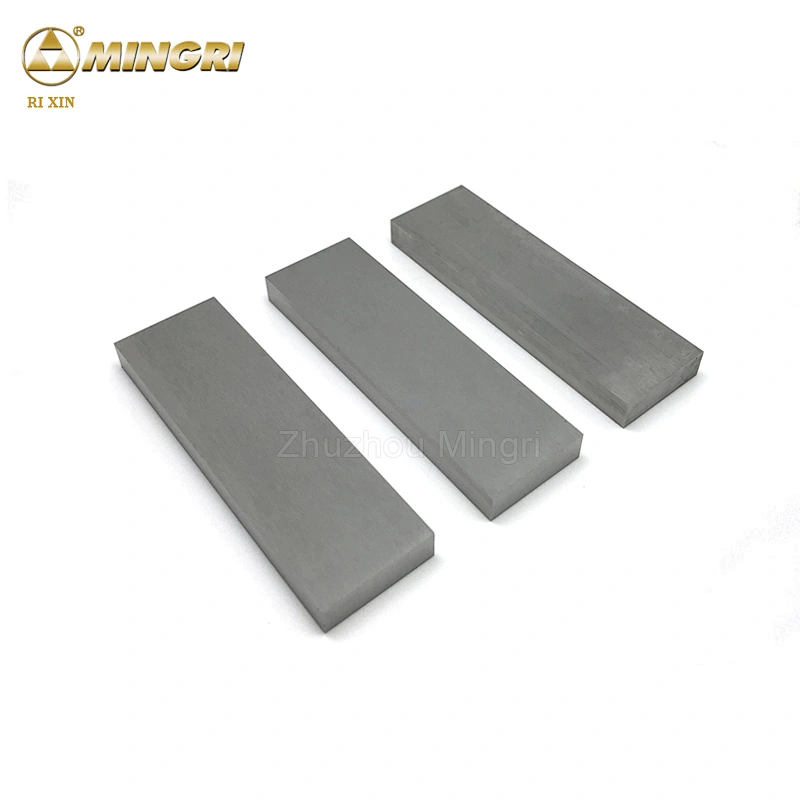

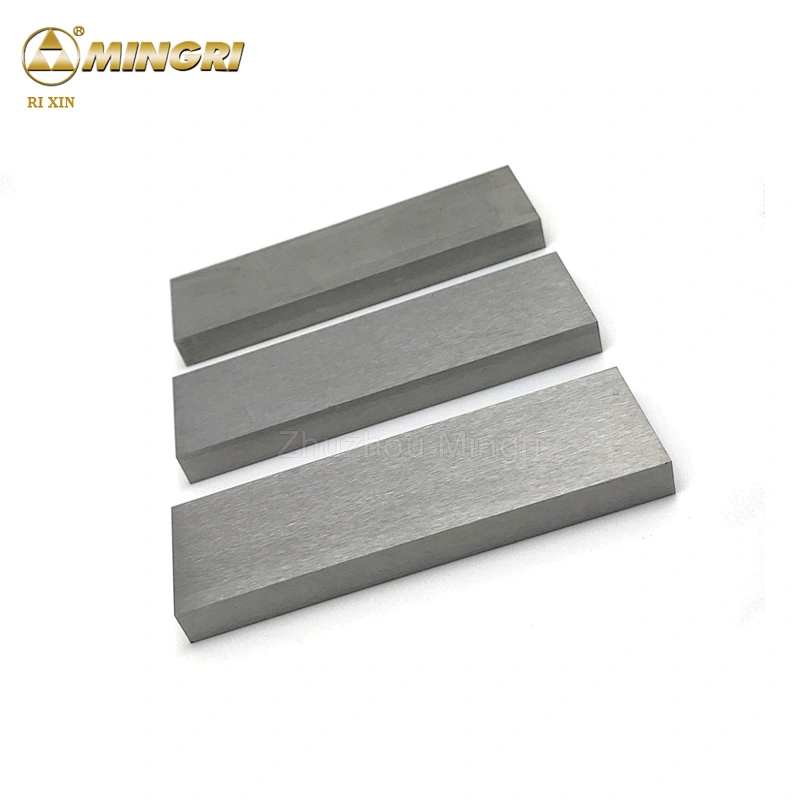

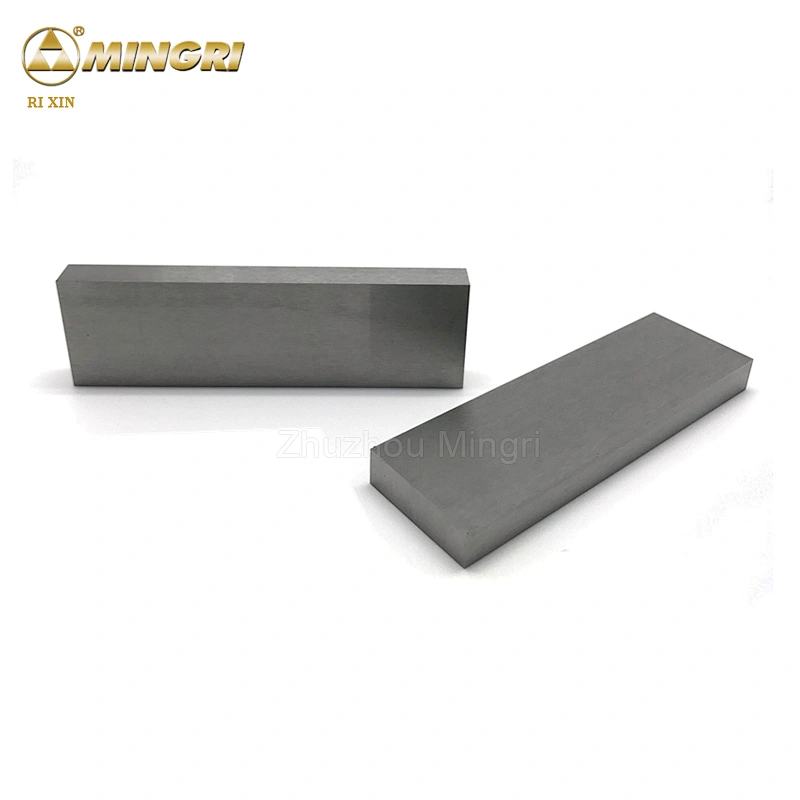

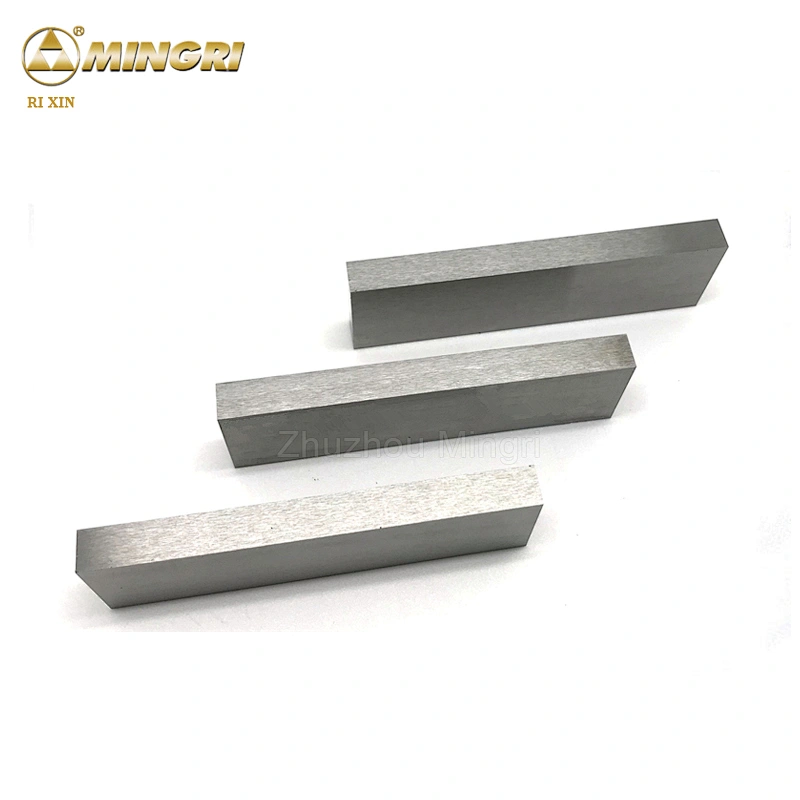

High Quality Tungsten Carbide K15 carbide plate/tungsten carbide sheet blanks

High Quality Tungsten Carbide K15 carbide plate/tungsten carbide sheet blanks

Model NO.: carbide plate-3
Delivery: FOB

Quantity:

Product Description

Product name:carbide plate
Application:cutting tools or molds
Certification:ISO9001:2008,ISO9001:14001
Service:OEM & ODM
Trial order:Acceptable
Rough blank:available
Material:virgin tungsten carbide
Payment:L/C, T/T etc
Shipment:by sea or by air
Delivery:within 20 workdays after payment done
Place of Origin:CN;HUN
Brand Name:rixin
Model Number:carbide plate-3

Grade and application

Grade	Density	T.R.S	Hardness	Performance & application recommended	Approx grade in China
Grade	g/cm3	MPa	HRA	Performance & application recommended	Approx grade in China
YM4A	14.9	1850	92	Fine grade alloy, with good wear resistance, used for processing blades,wear resistance parts etc.	YG4A
YM8	14.7	2400	89.5	High bending strength, wear resistance lower than MK6A, used for processing blades,wear resistance parts etc.	YG8
YM15	14.5	2500	87.5	Used for punch dies,stamping dies and wear resistance parts.	YG15
YM20	13.5	2800	85.5	High bending strength, used for step dies and other stampings dies.	YG20

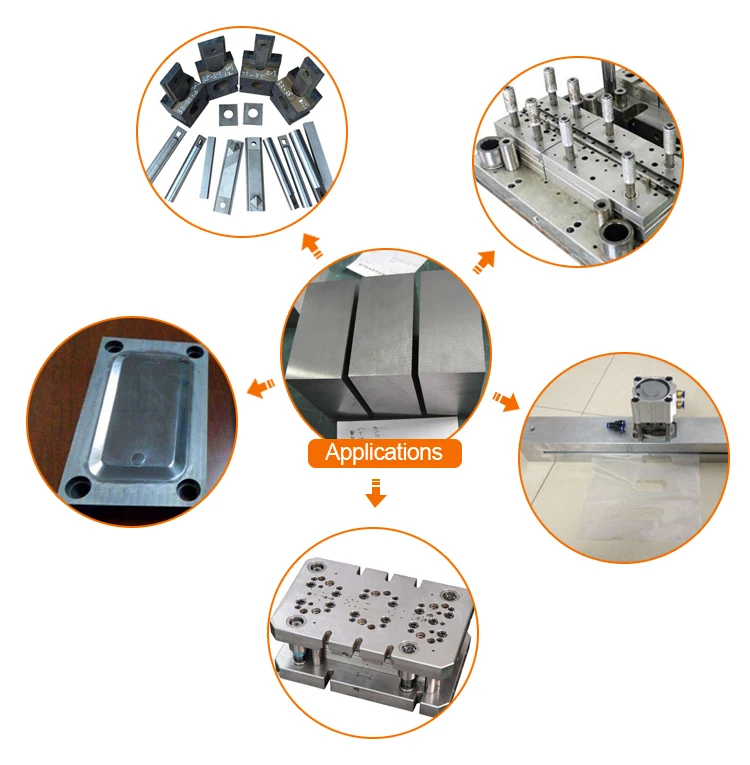

Tungsten Carbide Plates Application

1.Used for heat-resistant parts, wear-resistance parts, anti-shielding parts, anti-corrosion parts.

2.Used for making progressive press tools and progressive dies of high velocity ram machine.

3.Used for making connectors in electron industry, IC industry and semiconductor

4.Used for armature, stator, LED lead frame, EI silicon steel sheet and punching mould for hardware and standard parts.

Product Description

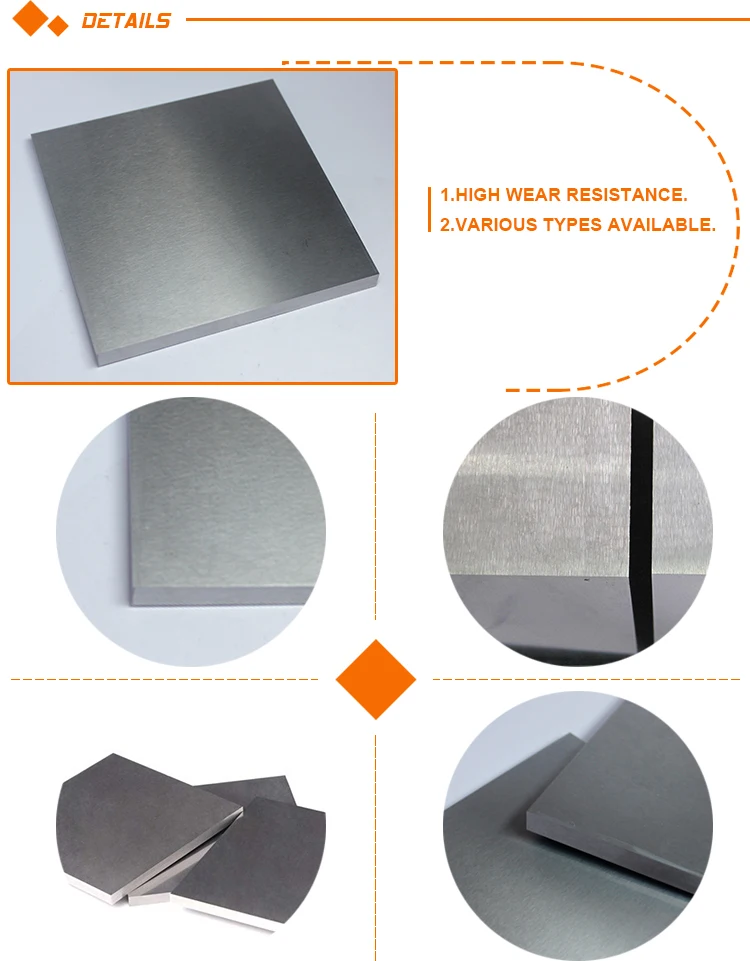

Tungsten Carbide Plates Features

1. 100% virgin tungsten carbide materials.

2. Sintering and ground surface.

3. Composition: WC+Co, WC+TiC+TaC+Co.

4. ISO9001:2015 vertified professional manufacturer over 20 years.

5. OEM and ODM are accepted as well.

Next please choose the types that you want

Product types of boron carbide plate

L	W	S
200	200	10-45
150	150	10-45
150	130	10-45
150	100	10-45
150	80	10-45
120	120	10-45
100	100	10-50
100	50	10-50
100	45	10-50
80	55	10-50
80	40	10-40
70	35	5-40
45	25	5-20
35	19	5-20
20	20	5-20
18	13	5-20
...	...	...

All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.

How to ensure the high quality standard?

Do you want to know the details?

Please follow......

Progress&test

Product Description of High density hard alloy wear resistant cemented tungsten carbide plates

---- Making connectors in electron industry, IC industry and semiconductor

---- Heat-resistant parts, wear-resistance parts, anti-shielding parts, anti-corrosion parts.

---- Making progressive press tools and progressive dies of high velocity ram machine.

---- Armature, stator, LED lead frame, EI silicon steel sheet and punching mould for hardware and standard parts.

To offer you a correct and fast quotation, your details in the following questions about the carbide you needed will help a lot:

1. carbide grade

2. carbide type and application

3. detailed dimensions(it is better to have a technical carbide drawing)

4. carbide surface treatment

5. other requirements

Once your inquiry reached us, a competitive quotation will reach you in 24 hours.

Enterprise certifications

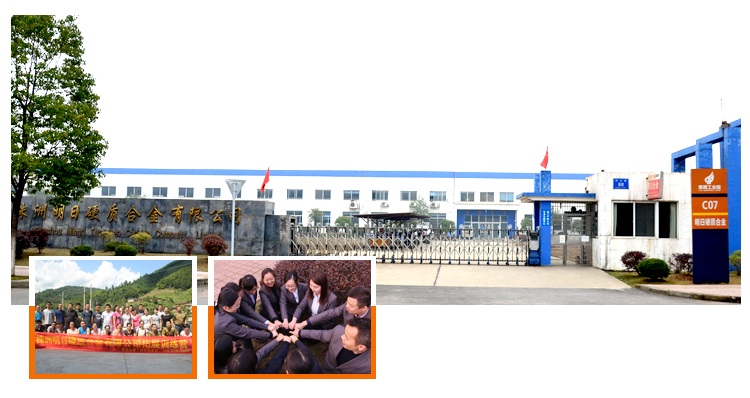

As one of the most professional manufacturers of tungsten carbide products in China, Zhuzhou Ming Ri Cemented Carbide Co., Ltd supplies a wide variety of high quality products for customers

worldwide with management principle of"stable quality & reliable cooperation".

We passed ISO9001:2000 in 2003 and keep improving the quality everyday. We have been always trying our best to provide our customers with high quality, the best price and satisfactory services.

Why choose us?

1.Zhuzhou Mingri has the richest molds stock of cold forging dies.

2.Over 19 years of stable relationship with our customers.

3.The most advanced tooling house.

4.The largest production capacity and fastest delivery.

5.The most reliable testing machines for all specifications.

6.The best and reliable after service.

Packing	Carton and inner plastic box.
Shipping	UPS,TNT,EMS,Fedex,DHL,or as you request.

Verified Information

The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >>

We passed ISO9001:2015and keep improving the quality everyday. We have been always trying our best to provide our customers with high quality, the best price and satisfactory services.
