- Product name:cemented carbide thread milling inserts for milling cutters
- Application:Cutting, Machining
- Certification:ISO9001:2008,ISO9001:14001
- Service:OEM & ODM
- Trial order:Acceptable
- material grade:YM6, YM8, YM6X etc.
- surface treatment:sand blast ,polishing,mirror surface
- Payment:L/C, T/T etc
- Shipment:by sea or by air
- Delivery:within 20 workdays after payment done
- Place of Origin:CN;HUN
- Brand Name:Rixin
- Model Number:carbide brazing tip-2

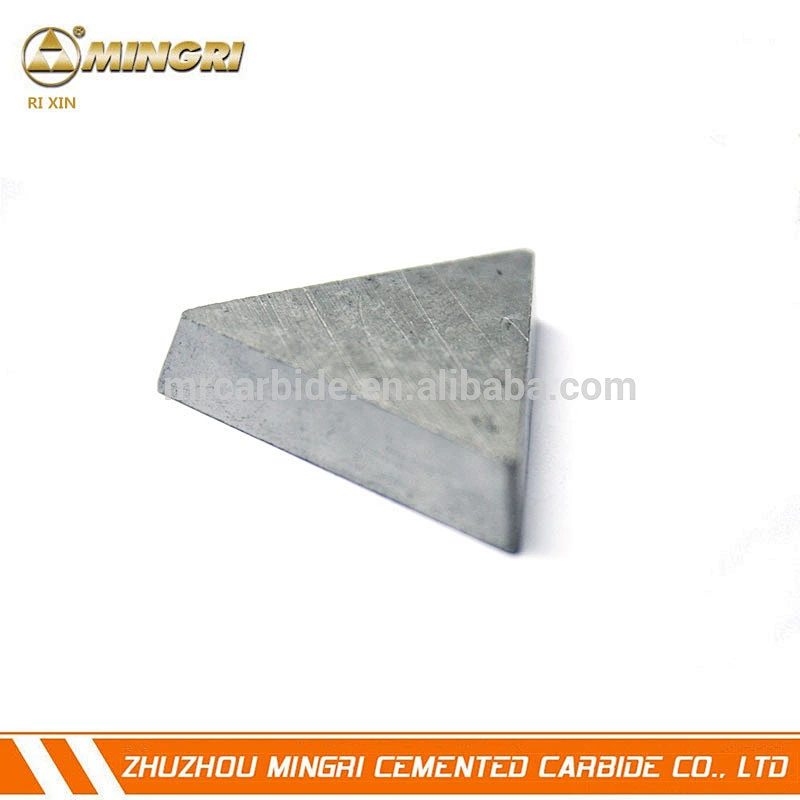

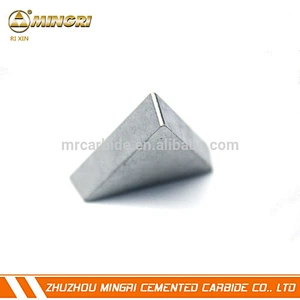

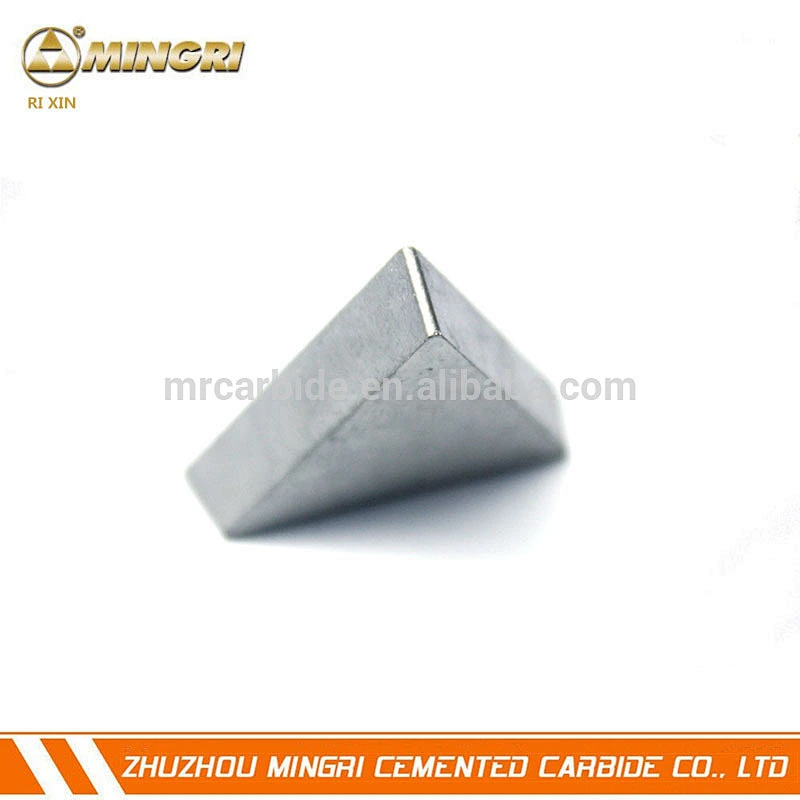

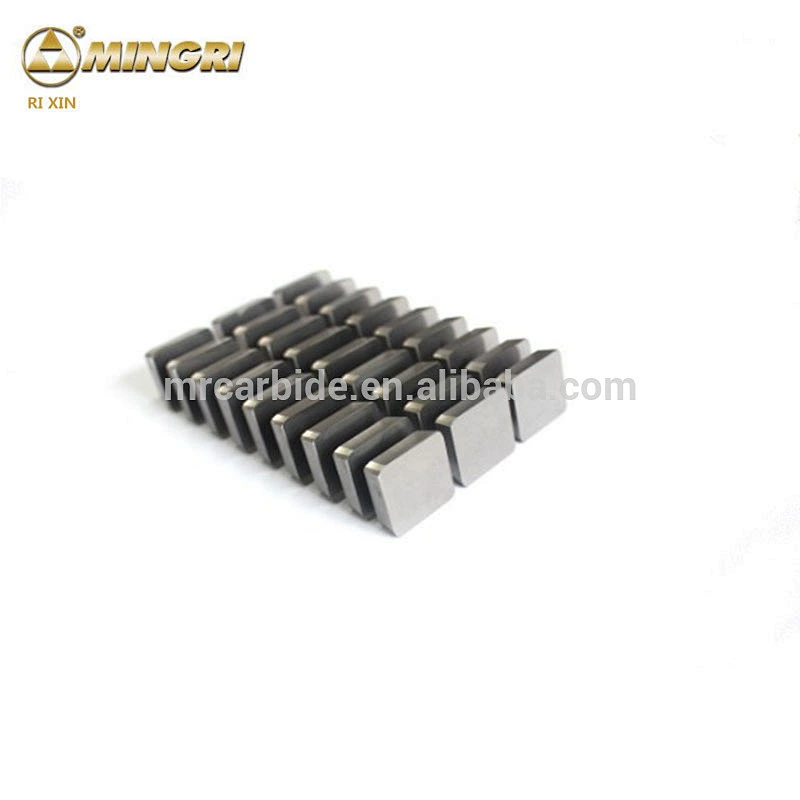

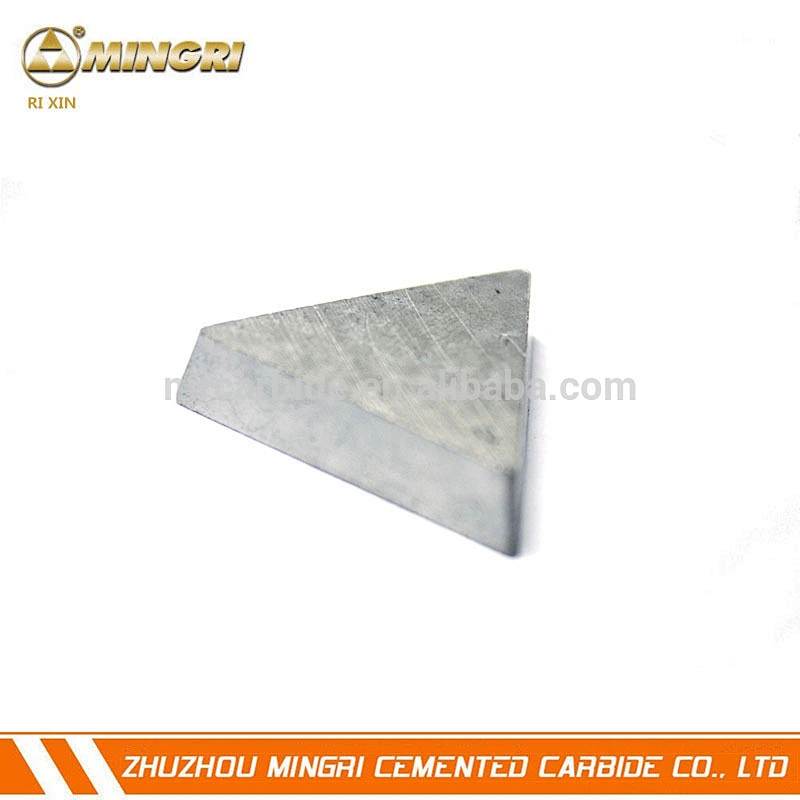

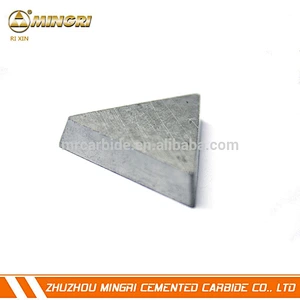

zhuzhou manufacturer Tungsten Carbide Insert cutter tips blank for CNC Machining
Are we a powerful manufacturer for cemented carbide products?
Is there any type or grade of cemented carbide that you need?
How to get one-on-one service?
Let’s find answers
Grades of cemented carbide thread milling inserts for milling cutters
| Grade | ISO Code | Density | Hardness | T.R.S | Applications recommended |
| g/cm3 | HRA | MPa | |||
| YM3 | K05 | 15.1 | 92 | 1400 | Suitable for finishing of cast iron and nonferrous metal. |
| YM6X | K10 | 14.95 | 91.5 | 1800 | The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
| YM6 | K15 | 14.95 | 90.5 | 1900 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YM8 | K20 | 14.8 | 89.5 | 2200 | |
| YW1 | M10 | 13.1 | 91.6 | 1600 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
| YW2 | M20 | 13 | 90.6 | 1800 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
| YT15 | P10 | 11.4 | 91.5 | 1600 | Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
| YT14 | P20 | 11.6 | 90.8 | 1700 | Suitable for the finishing and semi-finishing of steel and cast steel. |
| YT5 | P30 | 12.9 | 90.5 | 2200 | Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
| Other grades of cemented carbide blanks for milling blades may be offered by customers' requirements | |||||
Application of cemented carbide thread milling inserts for milling cutters
Tungsten carbide mining blades is used in geological prospecting and coal mining tools. It is also can used as excavating tools for Tunneling, quarrying, mining and construction.In addition, it can be applied as drill accessories for rock drilling machine and deep hole-drilling tools.
Next please choose the types that you want
Product types of cemented carbide thread milling inserts for milling cutters
| Type A(Type B,C,D,E Wait for your inquiry) | Unit:mm | ||||||
 | Type | Dimensions (mm) | |||||
| L | t | S | r | a° | |||
| A5 | 5 | 3 | 2 | 2 | - | ||
| A6 | 6 | 4 | 2.5 | 2.5 | - | ||
| A8 | 8 | 5 | 3 | 3 | - | ||
| A10 | 10 | 6 | 4 | 4 | 18 | ||
| A12 | 12 | 8 | 5 | 5 | 18 | ||
| A16 | 16 | 10 | 6 | 6 | 18 | ||
| A20 | 20 | 12 | 7 | 7 | 18 | ||
| A25 | 25 | 14 | 8 | 8 | 18 | ||
| A32 | 32 | 18 | 10 | 10 | 18 | ||
| A40 | 40 | 22 | 12 | 12 | 18 | ||
| A50 | 50 | 25 | 14 | 14 | 18 | ||
More types can be customized by customer's request.
How to ensure the high quality standard?
Do you want to know the details?
Please follow......
Enterprise certifications
As one of the most professional manufacturers of tungsten carbide products in China, Zhuzhou Ming Ri Cemented Carbide Co., Ltd supplies a wide variety of high quality products for customers
worldwide with management principle of"stable quality & reliable cooperation".
We passed ISO9001:2000 in 2003 and keep improving the quality everyday. We have been always trying our best to provide our customers with high quality, the best price and satisfactory services.
Why choose us?
1.Zhuzhou Mingri has the richest molds stock of cold forging dies.
2.Over 14 years of stable relationship with our customers.
3.The most advanced tooling house.
4.The largest production capacity and fastest delivery.
5.The most reliable testing machines for all specifications.
6.The best and reliable after service.
Hello,konw more details about sending an effective inquiry email
is convenient for you and save time for everyone.
| Packing | Carton and inner plastic box. |
| Shipping | UPS,TNT,EMS,Fedex,DHL,or as you request. |
Zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of 2001 with the investment of RMB 40 million. We have up-to-date production machine line and a lot of technicians.
Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten carbide hometown , convenient transportation, from changsha airport just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours. A favorable peripheral environment for cemented carbide manufacturing provides a natural barrier. Convenient traffic for tomorrow's internationalization laid a wide road.
We specialize in various of tungsten carbide products. Our products are sold to the UK, Europe, Japan, Korea, Taiwan area and Southeast Asia.
We strive for long-term business relationships with all customers, and look forward to being your first choice for your source of carbide.
