- Product Name:cutting corrugated paper round knife tungsten carbide blades knife
- Application:corrugated slitter scorer machine
- Material:Tungsten carbide + cobalt
- Surface:grinding and polishing to mirror
- Working life:7-9 millions meters
- Thickness tolerance:±0.01 mm
- ID tolerance:+0.01 mm
- Packaging:rubber protector of cutting edge + bubble bag + carton case
- HRA:85-93
- Keywords:tungsten carbide blade
- Place of Origin:CN;HUN
- Brand Name:Mingri
- Model Number:270*168.3*1.5

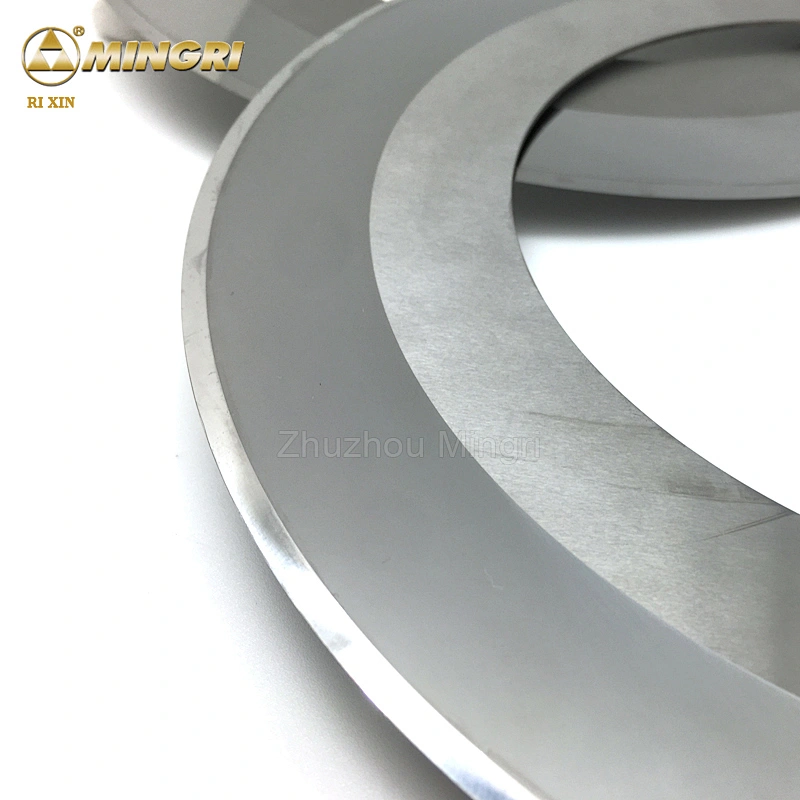

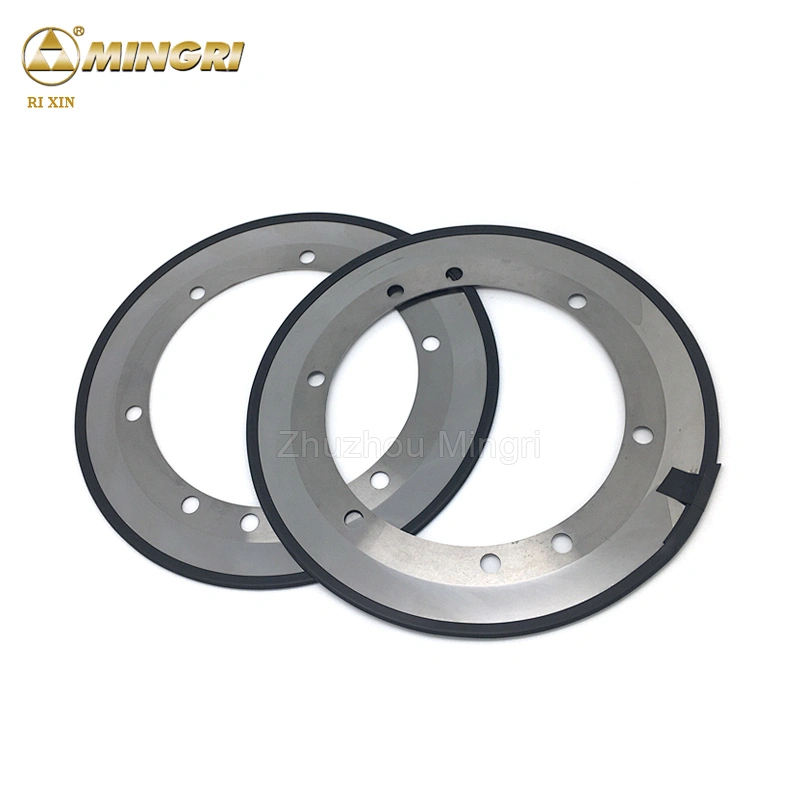

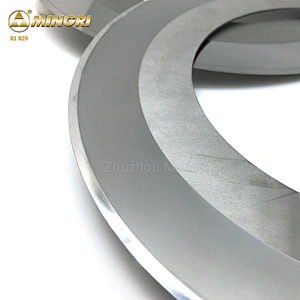

cutting corrugated paper round knife tungsten carbide blades knife
Description ofcutting corrugated paper round knife tungsten carbide blades knife
Our blades are used for corrugated carton slitter scorer machine,cardboard slotting machine,carton printing machine etc.They can be made by tungsten carbide with long life working time.We have all standard size and also can customized as customers' requirements.
In addition,we can provide the grinding wheel for the blade,slotting blade and others blade used for carton ,tobacco machinery.
| Materials | Tungsten Carbide YG10X, YG13X, OEM | |||
| Thickness | 0.2-6mm or customized | |||
| Flatness | 0.003mm | |||
| Type of edge | single edge, double edge | |||
| HRA | 85-93 | |||
| Straightness | <0.1 | |||
| Surface roughness | Ra0.2 | |||
| Laser engraving | Done as requirement | |||
| Package | 4 pcs/set,Simple packing/Plastic box packing/Blister packing | |||
| Main Size | OD(mm) | ID(mm) | Thickness(mm) | Cutting Edge |
| 300 | 112 | 1.4 | double | |
| 280 | 168 | 1.4 | double | |
| 265 | 112 | 1.3 | double | |
| 260 | 168 | 1.4 | double | |
| 260 | 140 | 1.4 | double | |
| 240 | 132 | 1.2 | double | |
| 230 | 110 | 1.3 | double | |
| 140 | 46 | 0.5 | single | |
| 100 | 16 | 0.3 | single | |
| 85 | 16 | 0.25 | single | |
| 60 | 19 | 0.27 | single | |
| Size | Can be customized according to customer requirements | |||
| Advantages | 1, High quality raw materials. | |||
| Application | For paperboard/paper/cardboard/carton/Tobacco machine to cut. | |||
Order Process:
1. Sending/Getting Inquiry
2. Quotation based on details
3. Information Confirmed
4. Process Feedback
5. 30-100% T/T Deposit Payment. Paypal or Western Union is acceptable.
6. Shipping Notice
7. Getting the balance payment via T/T or LC at sight (in case of big order volume)
8. Shipment
9. After Sales
Packing and delivery of cutting corrugated paper round knife tungsten carbide blades knife
Generally we will take care of your machine packages well like picture show.

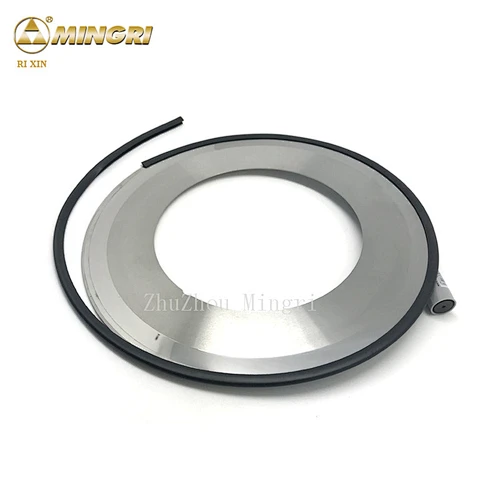

1. Rubber protector for cutting edges, blade in bubble pack, carton case.Max 10 pcs blades in one carton case
2. Exterior packaging: carton or wooden case
3. Other packaging upon your reques.
Good relationsjip with the Logistics company. UPS,TNT,FEDEX,DHL, are availible.

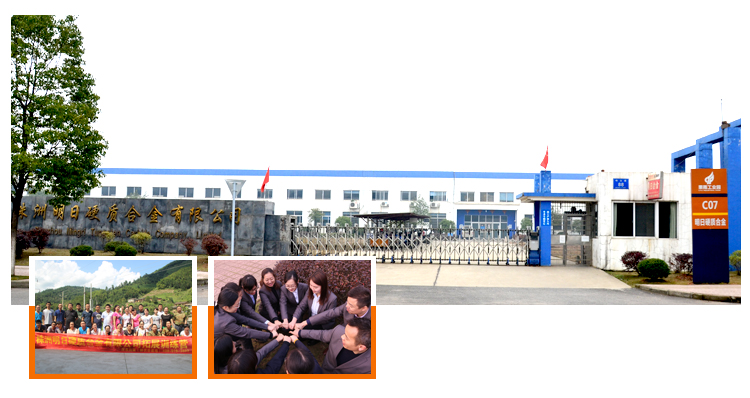

Zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of 2001 with the investment of

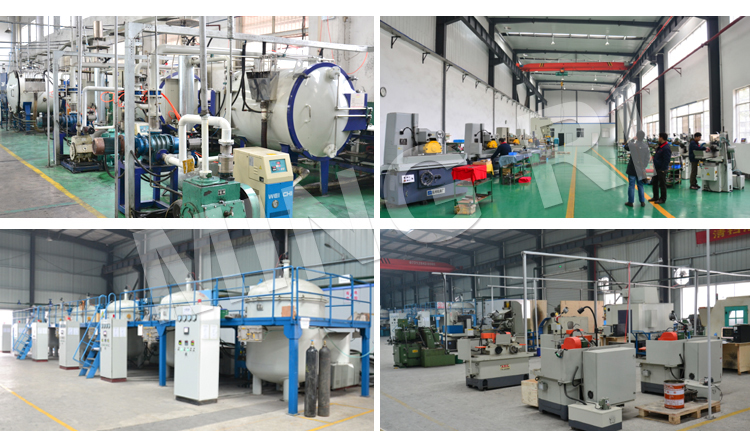

RMB 40 million. We have up-to-date production machine line and a lot of technicians.
Located in Zhuzhou, Hunan Province – the Tungsten Carbide Base of China. Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001.With the investment of more than 200 million and area of 35000m2.With professional technicians, advanced equipments and experts with national awards as the full-time consultants.
As one of the most professional manufacturers of tungsten carbide products in China, Zhuzhou Mingri Cemented Carbide Co., Ltd supplies a wide variety of high quality products for customers worldwide with management principle of"stable quality & reliable cooperation".
Customer Feedback Of cutting corrugated paper round knife tungsten carbide blades knife
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.
Any detailed information needed, please feel free to contact us! We will reply to you as soon as possible!
