- Product name:Tungsten carbide slitter
- Keyword:Tungsten carbide slitter
- Size:OD240 * ID32 * T1.2
- Grade:MR030
- Surface:Polish
- Certificate:ISO 9001:2000
- Condition:New
- Shape:Round with 2 holes
- Material:Hard Metal Alloy
- Application:corrugated paper cutting etc.
- Place of Origin:CN;HUN
- Brand Name:RIXIN
- Model Number:carbide blade - 02

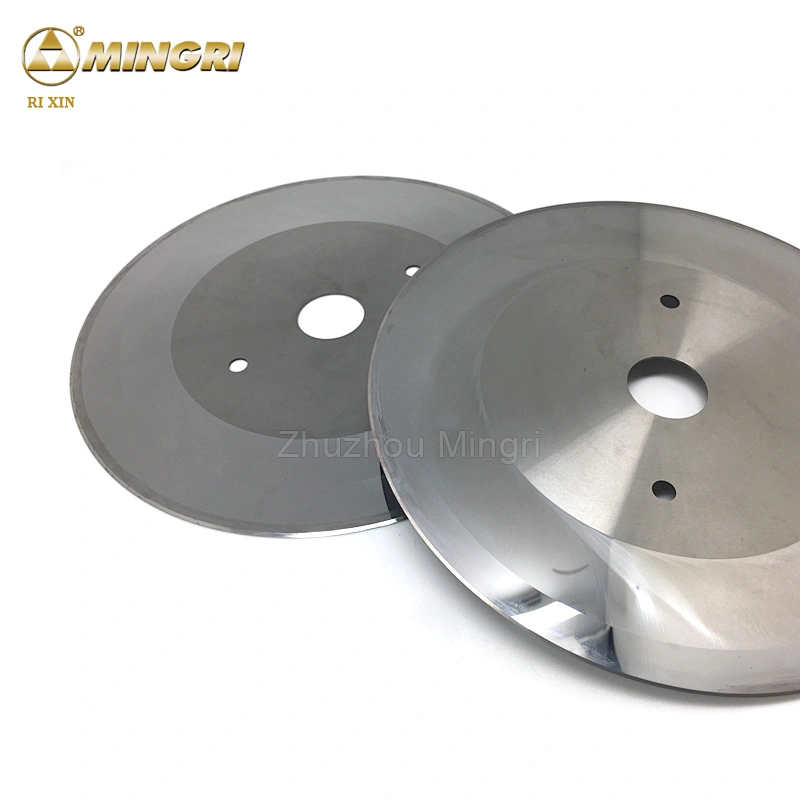

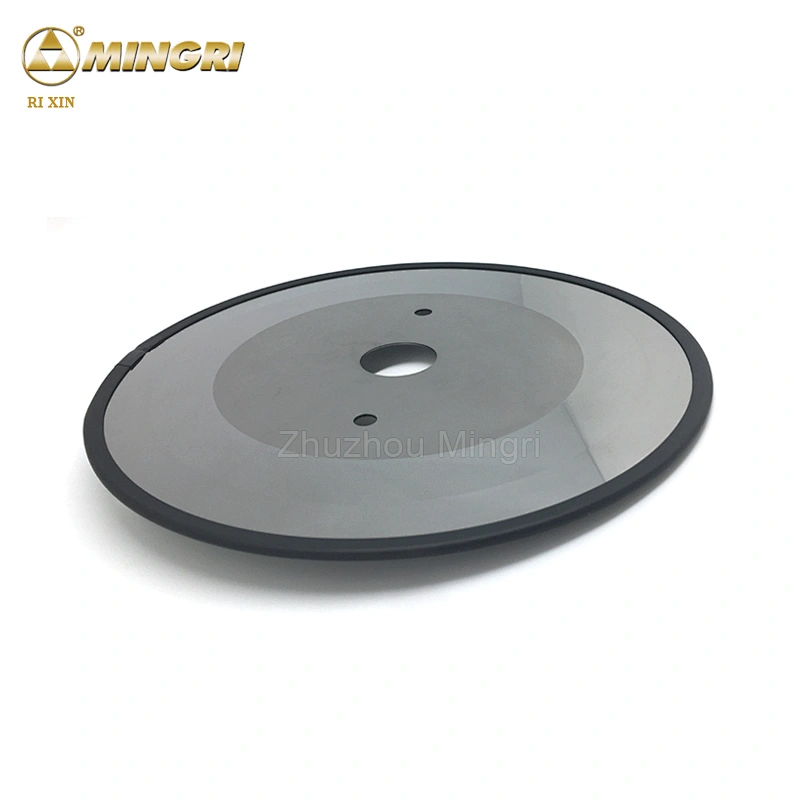

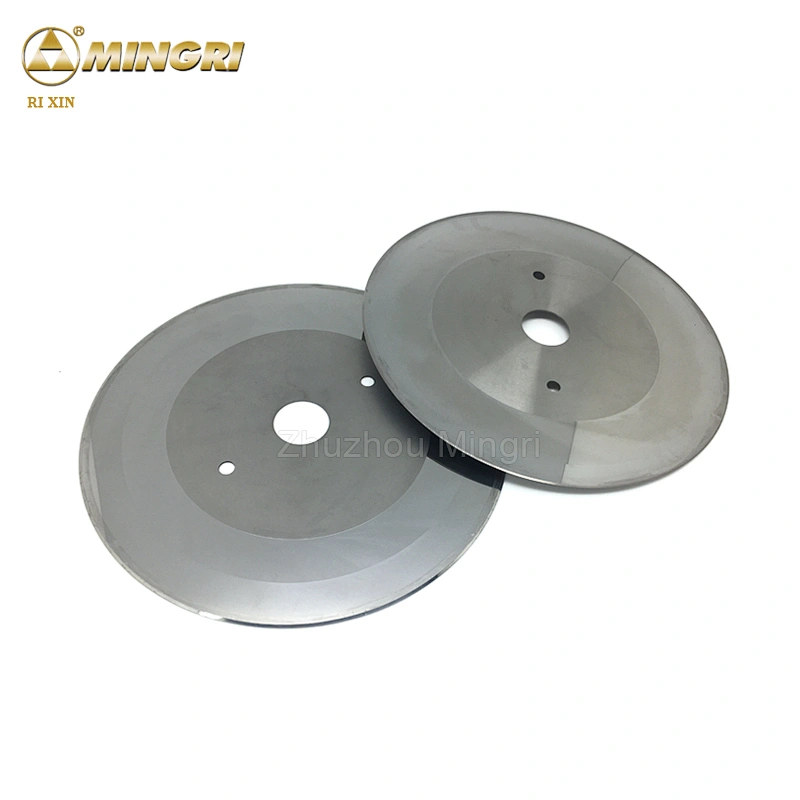

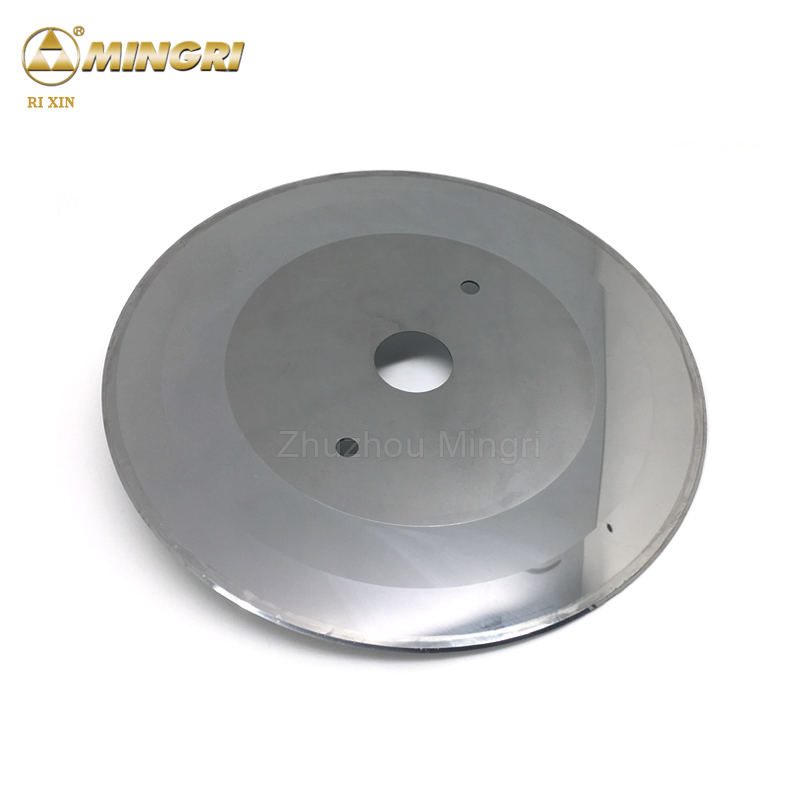

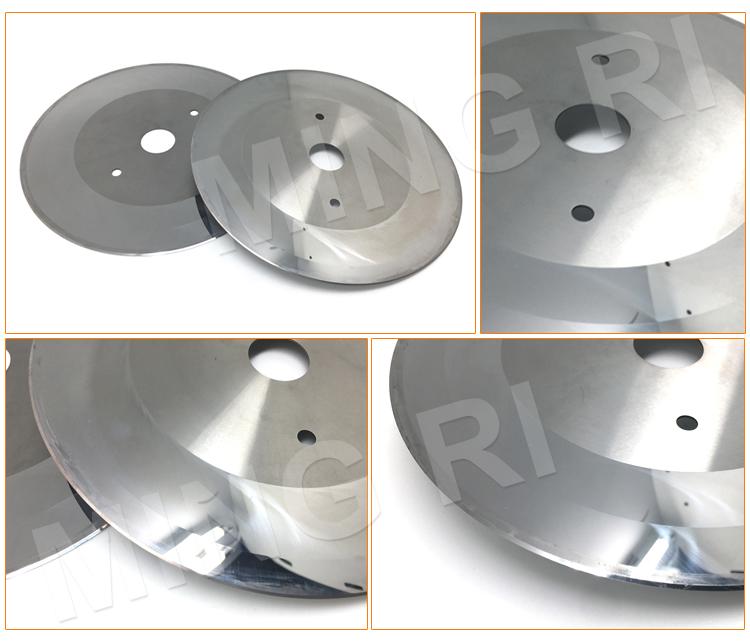

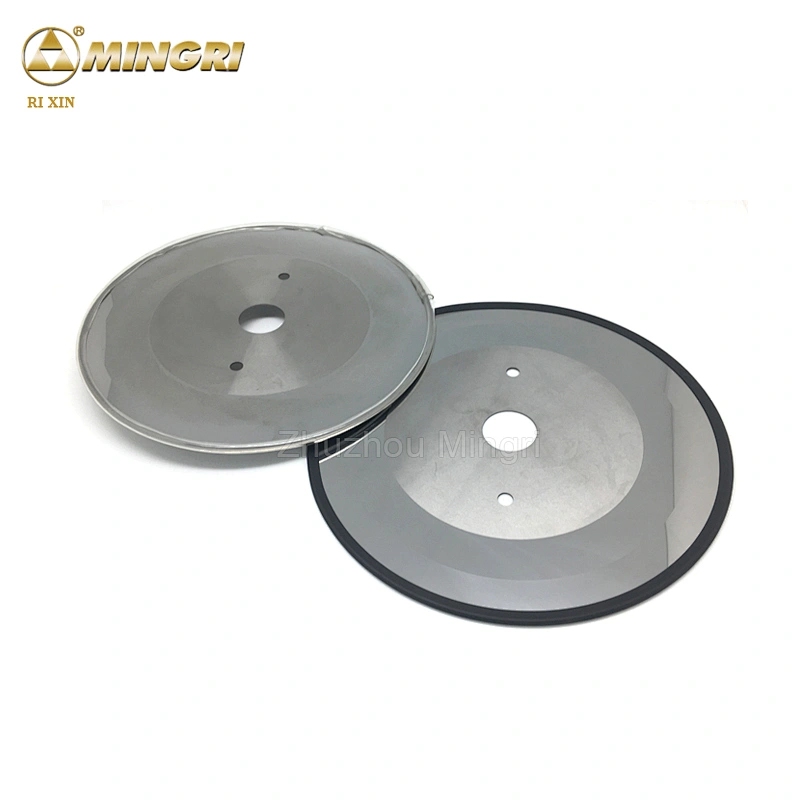

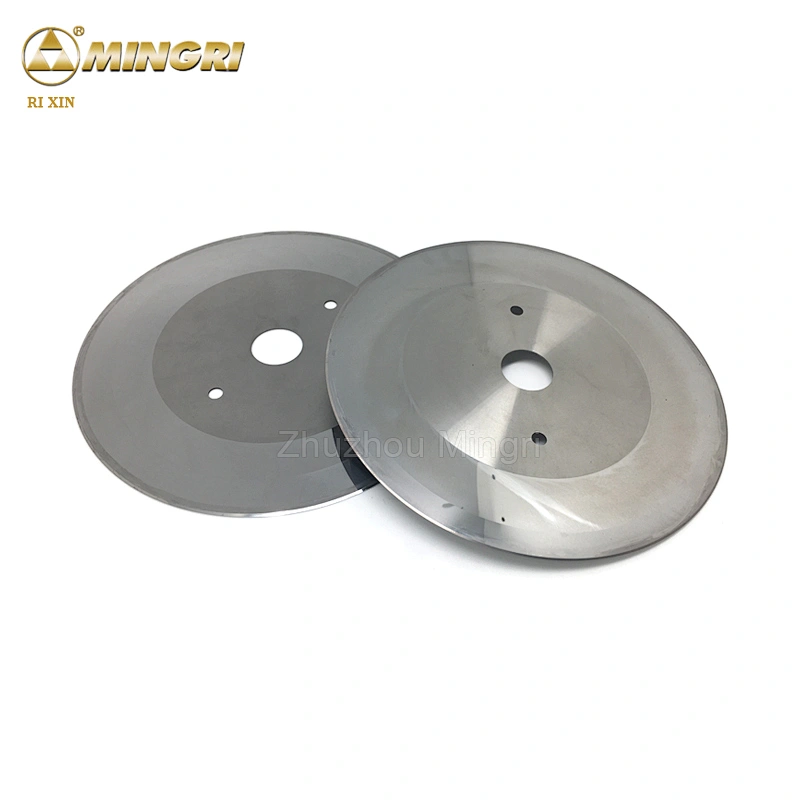

OD240 * ID32 * T1.2 with 2 holes BHS machine corrugated board tungsten carbide slitter
1 continuous production of tungsten carbide slitter over 18 years
2 total production quantity of carbide slitter up to 800 tons
3 widely exported to Europe,America,Australia, Brazil, India, Russia etc
4 We, Mingri CARBIDE, promise you the 100% raw material.
5 We, Mingri CARBIDE, quotation your order with 24 hours
6 We, Mingri CARBIDE , accept your order as per your requirements
| Name | tungsten carbide slitter |
| Material | tungsten carbide |
| Usage | corrugating paperWood/Plastic/Food/Leather/Fabric/metallurgy etc |
| Service | OEM & ODM |
| Delivery | depend on the quantity |
| Packing | Heat-sealed plastic bag |
Grade | Grain size | Density | T.R.S | Hardness | Suitable for cutting |
g/cm3 | ≥ N/mm2 | HRA | |||
MR020 | ultrafine grain | 14.5 | 3300 | 91.5±0.5 | domestic machine to cut corrugated board, chemical fiber,leather,sheet metal,battery |
MR030 | ultrafine grain | 14.1 | 3500 | 90.5±0.5 | foreign machine to cut corrugated board |
| item | Common sizes OD*ID*T(mm) | Holes | Available for machine |
| 1 | Ø240*Ø32*1.2 | 2 holes*Ø8.5 | BHS |
| Acceptable for customers' design | |||

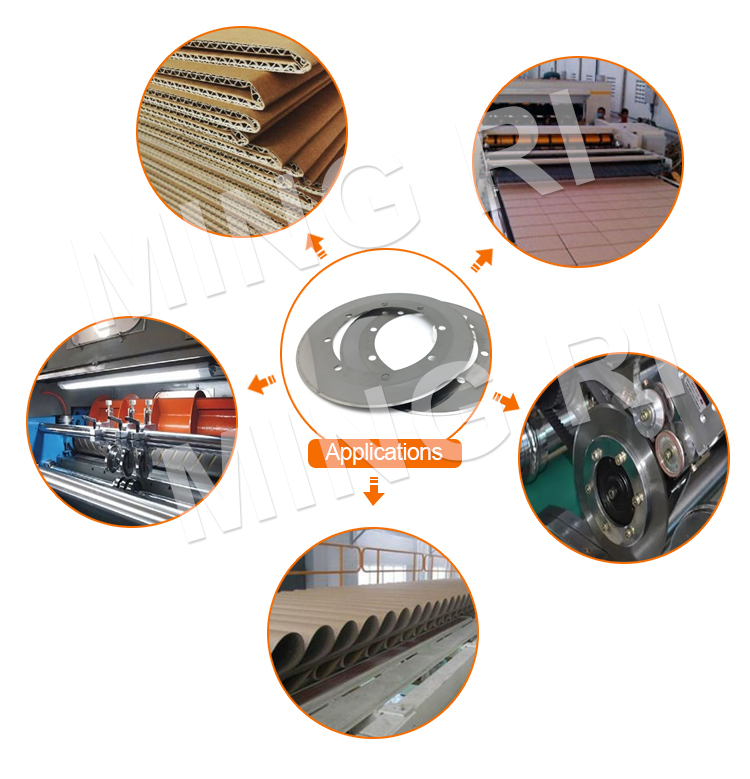

tungsten carbide slitter is mainly used for cutting paper, rubber, plywood, hardwood, PCB, PVC, stainless steel, high manganese steel and PCB, PVC electronic circuit boards and other materials.
tungsten carbide slitter products require high precision, no glitches, maximum abrasion resistance.
we are using HIP sintered and fine grinding, polishing plating to reduce frictions when cutting, improved the accuracy and speed slitting greatly, tool life extended.

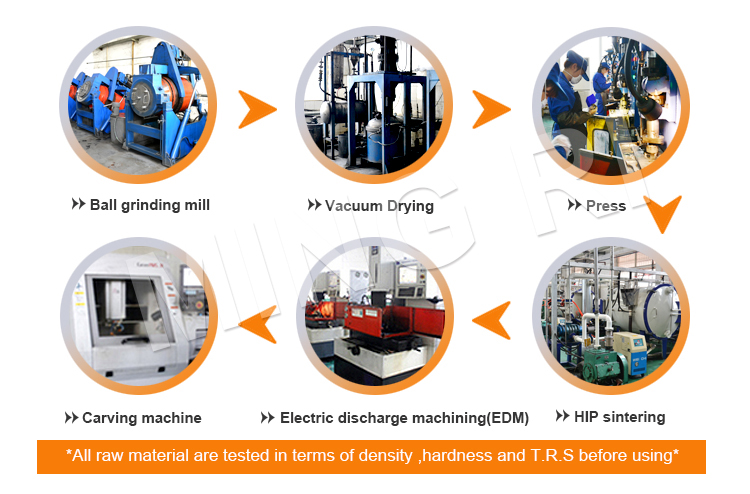

1, Soon after the order is confirmed, tungsten carbide slitter products will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine
2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of tungsten carbide slitter samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production
3, Bulk production ,press the raw materials to shape blanks,and all tungsten carbide slitter blanks must be passed by semi finished inspection,
4, Then sinter blanks to finish (HIP) and finished products inspection, we have 12 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.
5, 1). cleaning/tumbling is to make the tungsten carbide slitter look more beautiful.
2).The tungsten carbide slitter can be ground according to customers’ order tolerance requirement
1. our worker will make sure your tungsten carbide slitter clean before package.
2. rubber strip wrap sharp cutting edge to avoid edge broken.
3. put into plastic bag and styrofoam box to keep tungsten carbide slitter steady when express deliver
4. add plastic foam into inner box for the whole tungsten carbide slitter for sweet protection.
5. we will make export standard strong cartonn or plywood case package according to your needs.
Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten carbide hometown , convenient transportation, from changsha airport just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours. A favorable peripheral environment for cemented carbide manufacturing provides a natural barrier. Convenient traffic for tomorrow's internationalization laid a wide road.
We specialize in various of tungsten carbide products. Our products are sold to the UK, Europe, Japan, Korea, Taiwan area and Southeast Asia.
Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal carbide cutter knife is properly good before dispatch and can achieve your expection. You will be able to use the tungsten carbide slitter immediately after received tungsten carbide slitter .
Besides, you will be able to get free training advice towards our tungsten carbide slitter in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
1. We joined Alibaba Trade Assurance to make sure the buyer’s benefit. If can’t meet the details in the contract, 100% of your payment will be returned.
2. As a professional manufacturer, we have 18 years factory experience for tungsten carbide slitter . We are devoting to the research and manufacturing of many different type and size.
3. You can see from the below picture that many customers visited our exhibition booth, more and more customers in the world are using our tungsten carbide slitter , we received many good feedbacks or reviews from lots of countries.
