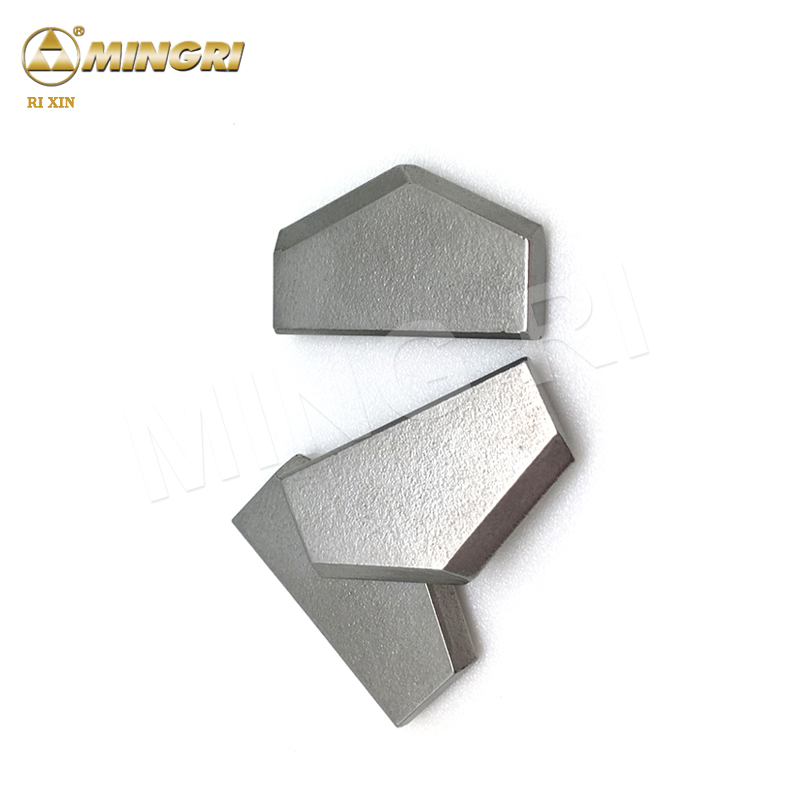

- Product Name:tungsten carbide two heads tips
- Application:SDS-PLUS electric hammer drill bit
- Material:100% Virgin Tungsten Carbide
- Keyword:tungsten carbide two heads tips
- Color:Silver
- Feature:High Speed.Straight Smooth Edge
- Density:14.7 g/cm3
- Hardness:89.8 HRA
- T.R.S:2800 MPa
- Surface:Sand Blasting
- Place of Origin:CN;HUN
- Brand Name:Ri Xin
- Model Number:carbide drill tips-3
- Alloy Specification:YG8
- Particle:Medium

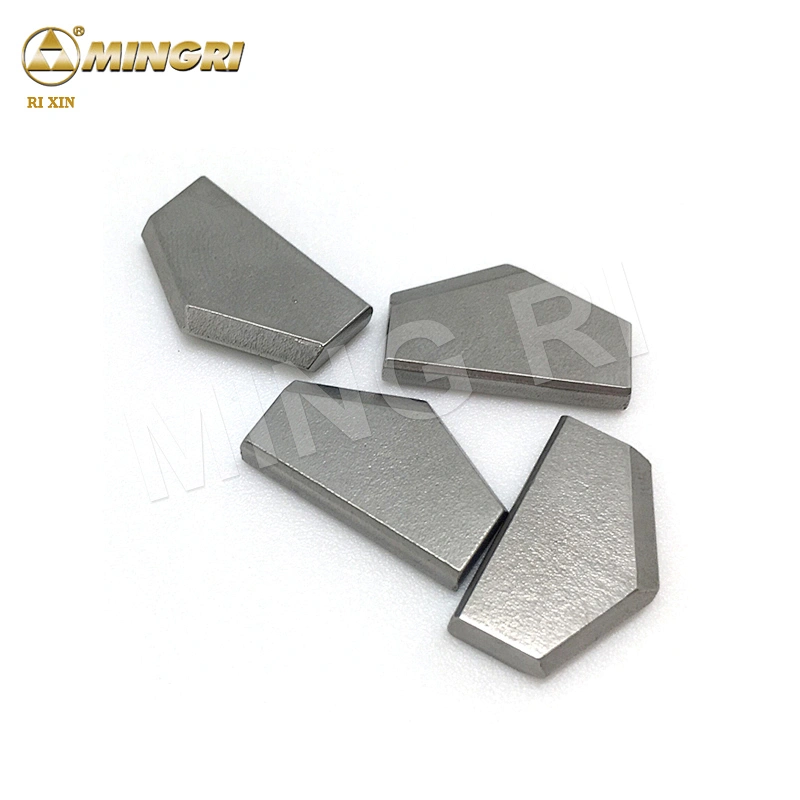

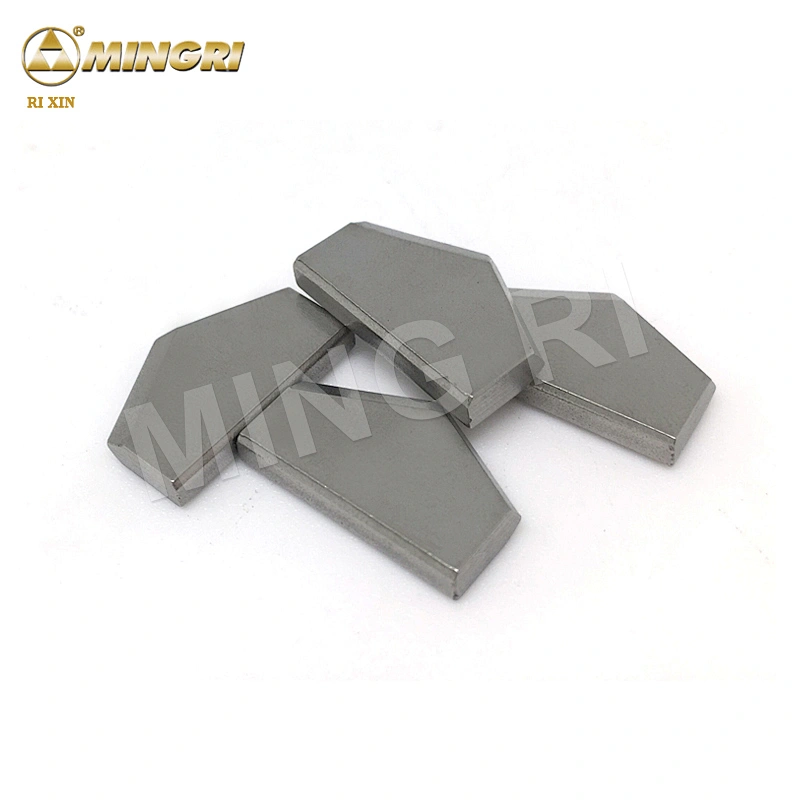

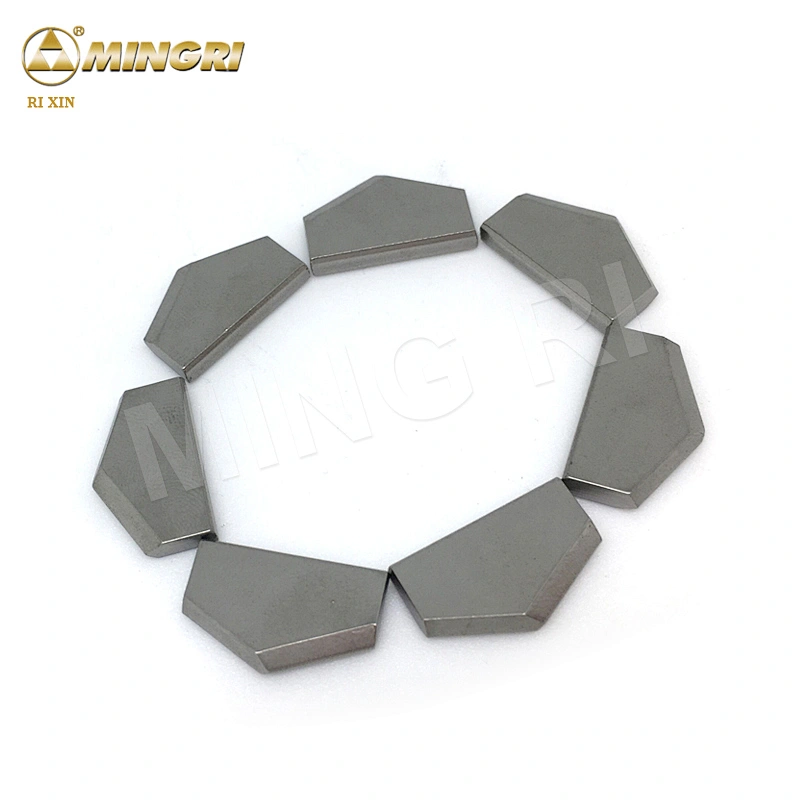

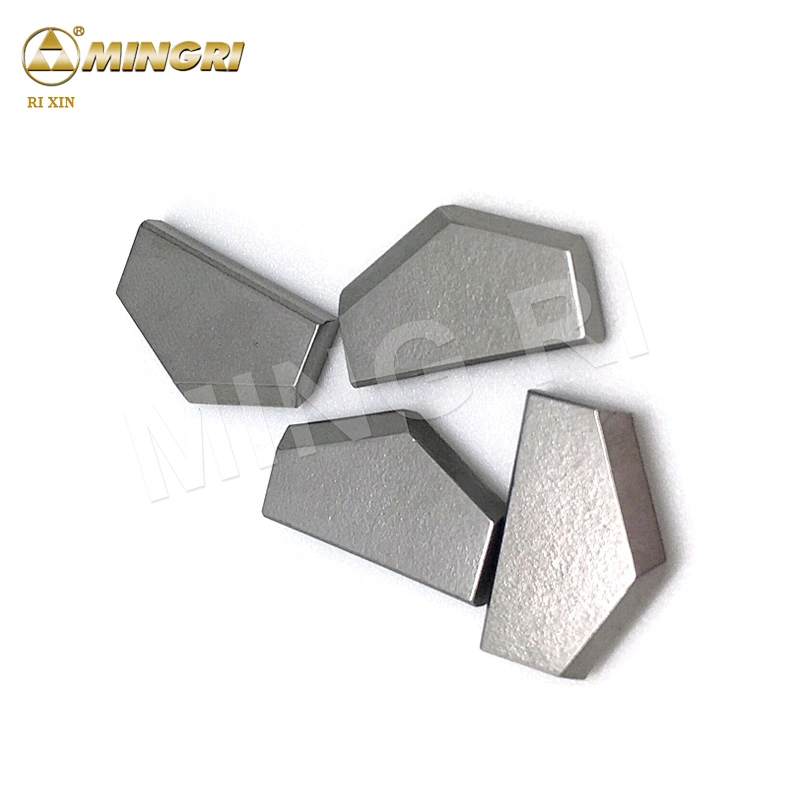

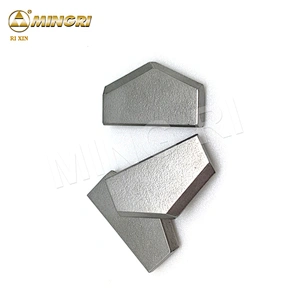

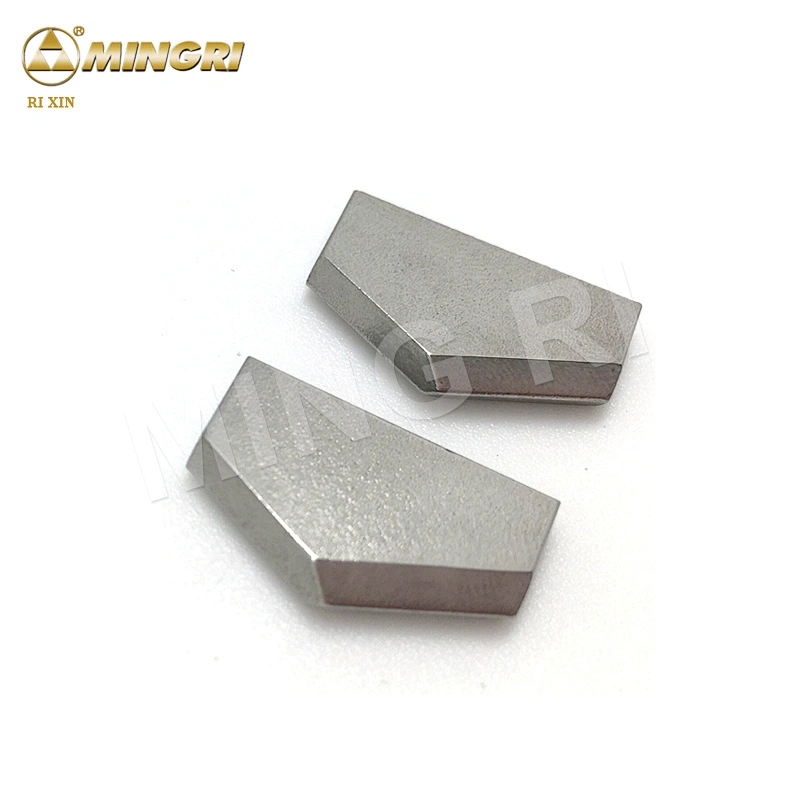

hammer drill bit sds-plus Tungsten carbide two heads tips
1. Focusing on manufacturing tungsten carbide two heads tips over 18 years.
2. Specialist manufacturer equipped with advanced processing machines and over 160 technicians
3. Over 50 tons/month productivity to assure sustainable supply of tungsten carbide two heads tips
4. Owing mould workshop to design & produce moulds for nonstandard products, and with mould stocks over 10 thousand sets for different products.
5. Full ability to accept OEM & ODM orders
6. Stringent quality control and quality consistency.

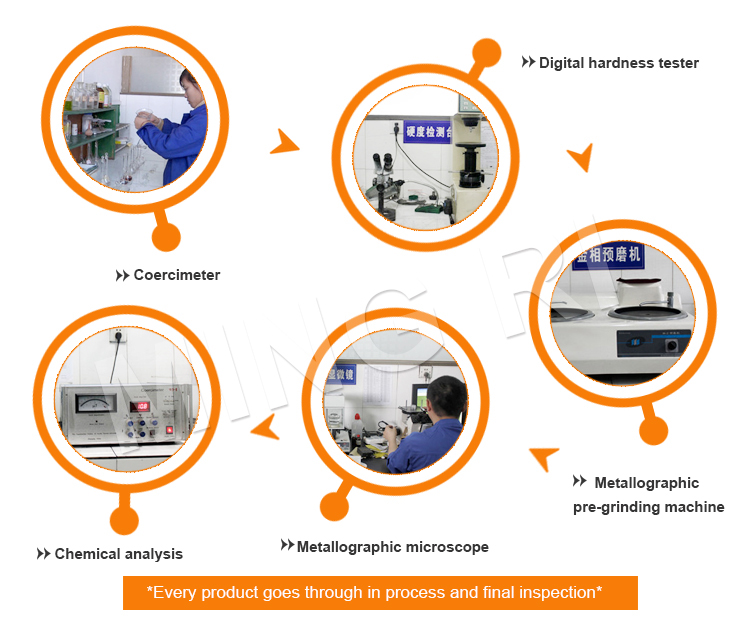

7. Professional mechanical & chemical inspecting labs to control the quality of raw material and inspect physical & mechanical properties of finished tungsten carbide two heads tips
Grade | g/cm3 | TRS | Hardness | Performance & application recommended |
MPa | HRA | |||
YG4C | 15.1 | 1800 | 90 | Mainly used as small buttons for percussion bits to cut soft and medium hard formations. |
YG6 | 14.95 | 1900 | 90.5 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
YG8 | 14.8 | 2200 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
YK15 | 14.6 | 2450 | 87.6 | Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations. |
YK20 | 14.4 | 2500 | 86.8 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
YK25 | 14.4 | 2550 | 87.2 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations. |
YG11C | 14.4 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
YG13C | 14.2 | 2850 | 86 | Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations. |
YG15C | 14 | 3000 | 85.5 | For oil cone drill bits, for medium soft and medium-hard rocks. |

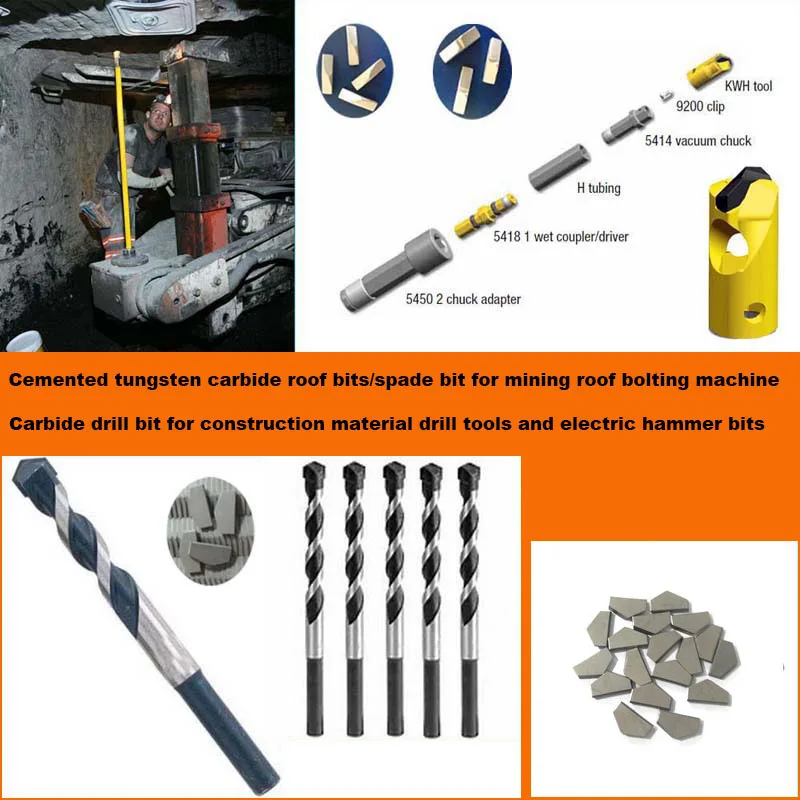

1, tungsten carbide two heads tips are brazed on percussion drill or electric drill or pneumatic drill to drill wall, ground, mining ect.
2, widely used for electric drill in special condition, also used for electric dill or pneumatic drill for building,geology and coal mining
3, tungsten carbide two heads tips suitable for harder rock or rock with hard stratum or metallic rock
4, tungsten carbide two heads tips suitable for all kinds of cement drill bits

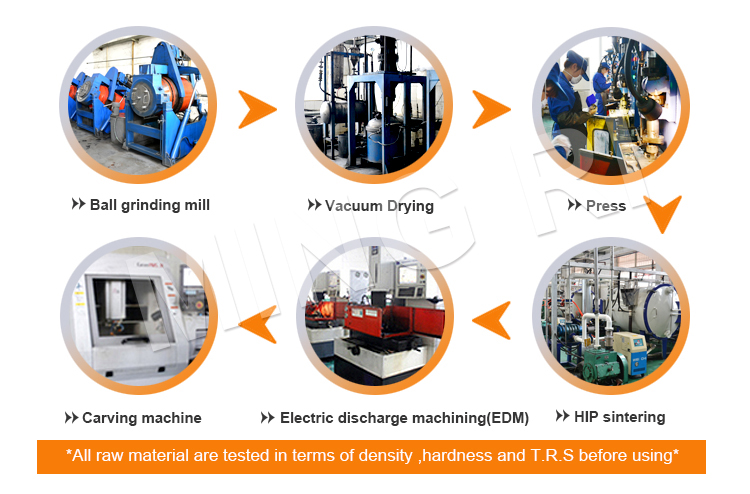

1, Soon after the order is confirmed,tungsten carbide two heads tips will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine
2, Before mass production of tungsten carbide two heads tips, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of the samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production
3, Bulk production ,press the raw materials to shape blanks,and tungsten carbide two heads tips must be passed by semi finished inspection.
4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.

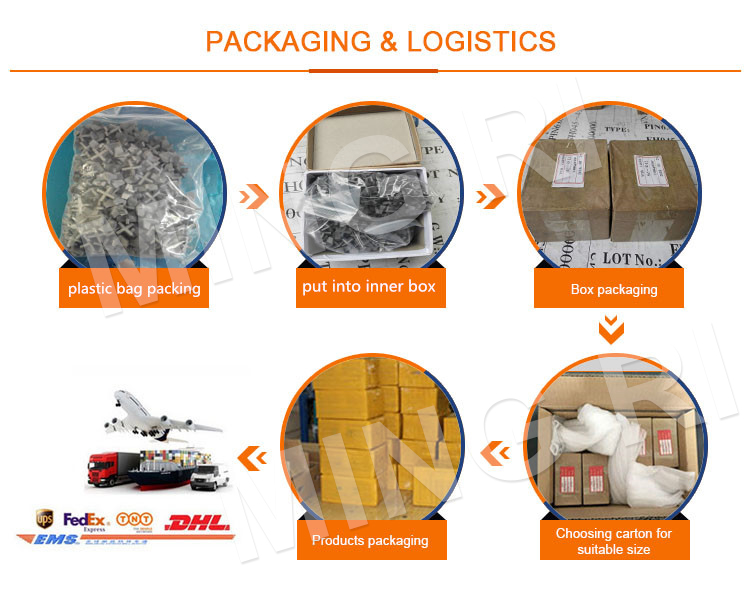

step 1, wrapped tungsten carbide two heads tips in paper to avoid tungsten carbide two heads tips to broke
step 2, put the tungsten carbide two heads tips in inner small carton box
step 3, put the inner box into outter carton and fill the carton with foamed plastic
step 4, wrap the carton with packaging tape
step 5, you can choose any delivery way such as DHL,TNT,UPS ect.

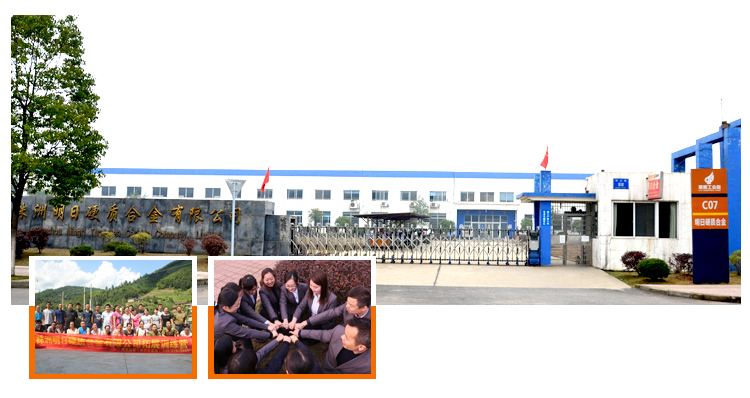

Zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of 2001 with the investment of RMB 40 million. We have up-to-date production machine line and a lot of technicians.
Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten carbide hometown , convenient transportation, from changsha airport just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours. A favorable peripheral environment for cemented carbide manufacturing provides a natural barrier. Convenient traffic for tomorrow's internationalization laid a wide road.
1. We joined Alibaba Trade Assurance to make sure the buyer’s benefit. If can’t meet the details in the contract, 100% of your payment will be returned.
2. As a professional manufacturer, we have 18 years factory experience for tungsten carbide two heads tips. We are devoting to the research and manufacturing of many different type and size.
3. You can see from the below picture that many customers visited our exhibition booth, more and more customers in the world are using our tungsten carbide two heads tips, we received many good feedbacks or reviews from lots of countries.
