- Product name:tungsten carbide tip
- Keyword:tungsten carbide tip
- Material:100% Virgin Tungsten Carbide
- Surface:nickle coated
- Grade:Varies
- Certificate:ISO 9001:2000
- Process:sintered for tungsten carbide drill tips
- Size:diameter 5mm
- Color:Silvery Grey
- Surface finish:sand-blasted finished
- Place of Origin:CN;HUN
- Brand Name:Rixin
- Model Number:carbide drill tip-5

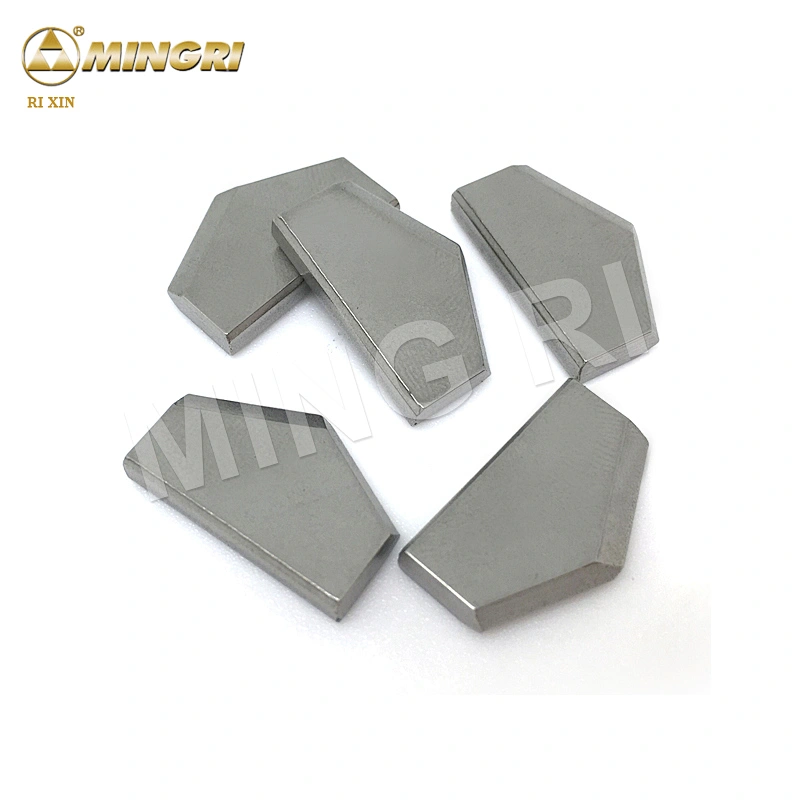

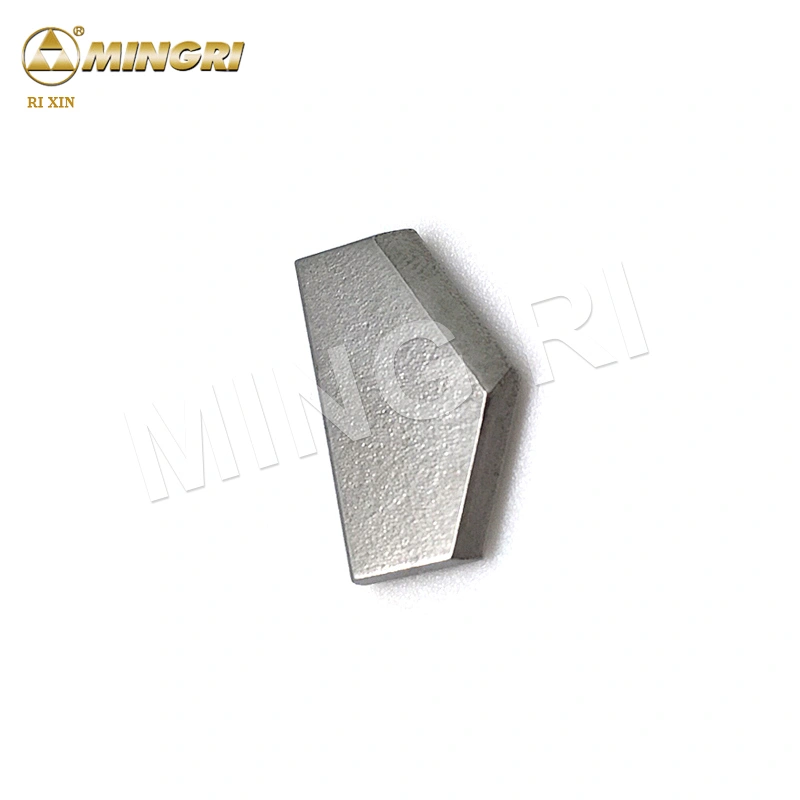

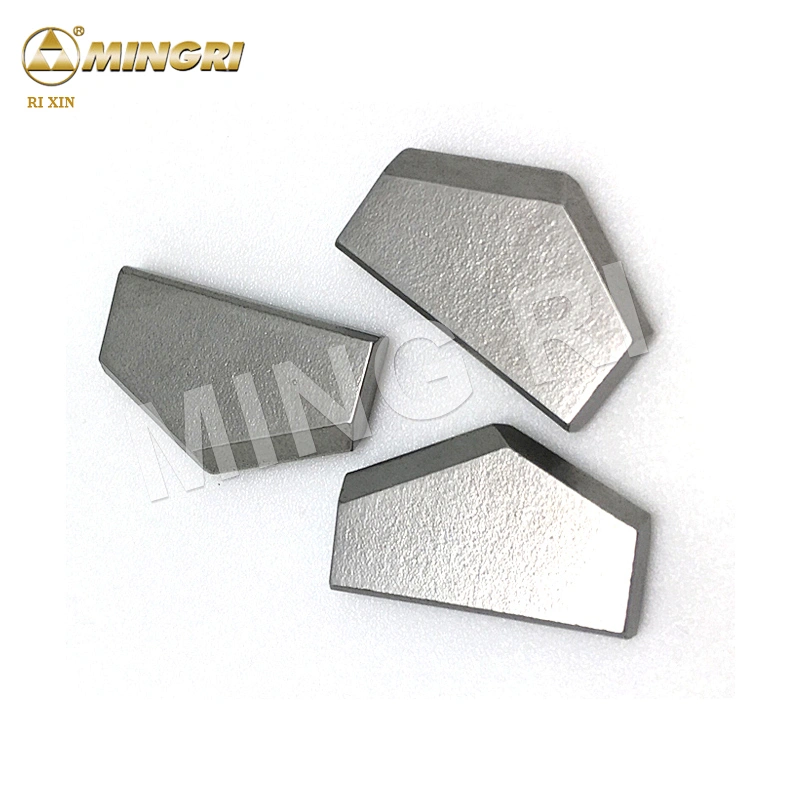

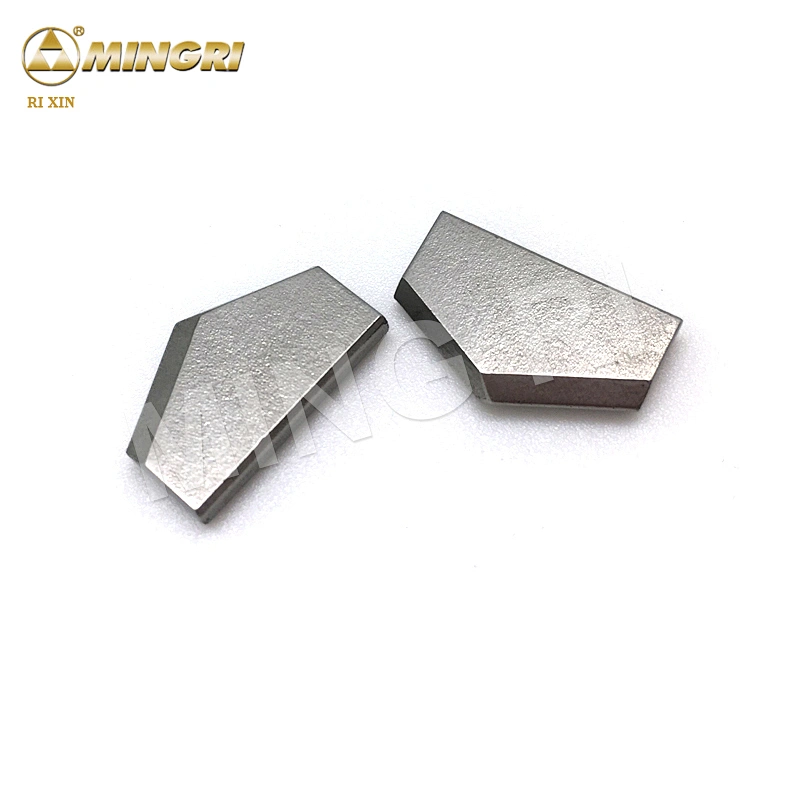

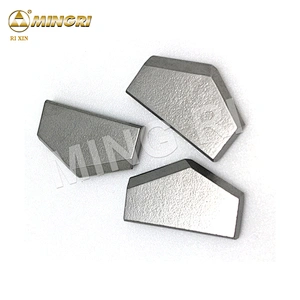

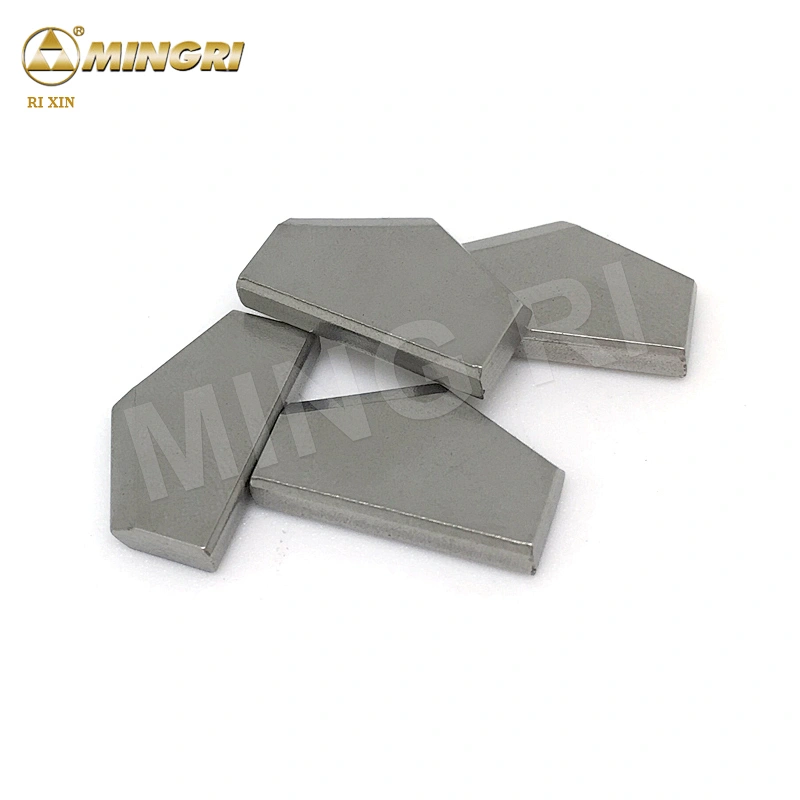

SDS hammer drill bit tungsten carbide tip
1. Direct sale
2. High quality
3. Reasonable price
4. OEM available
5. Samples availble
tungsten carbide tip made by top manufacturer in zhuzhou cemented carbide base are available
Grade | g/cm3 | TRS | Hardness | Performance & application recommended |
MPa | HRA | |||
YG4C | 15.1 | 1800 | 90 | Mainly used as small buttons for percussion bits to cut soft and medium hard formations. |
YG6 | 14.95 | 1900 | 90.5 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
YG8 | 14.8 | 2200 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
YK15 | 14.6 | 2450 | 87.6 | Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations. |
YK20 | 14.4 | 2500 | 86.8 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
YK25 | 14.4 | 2550 | 87.2 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations. |
YG11C | 14.4 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
YG13C | 14.2 | 2850 | 86 | Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations. |
YG15C | 14 | 3000 | 85.5 | For oil cone drill bits, for medium soft and medium-hard rocks. |

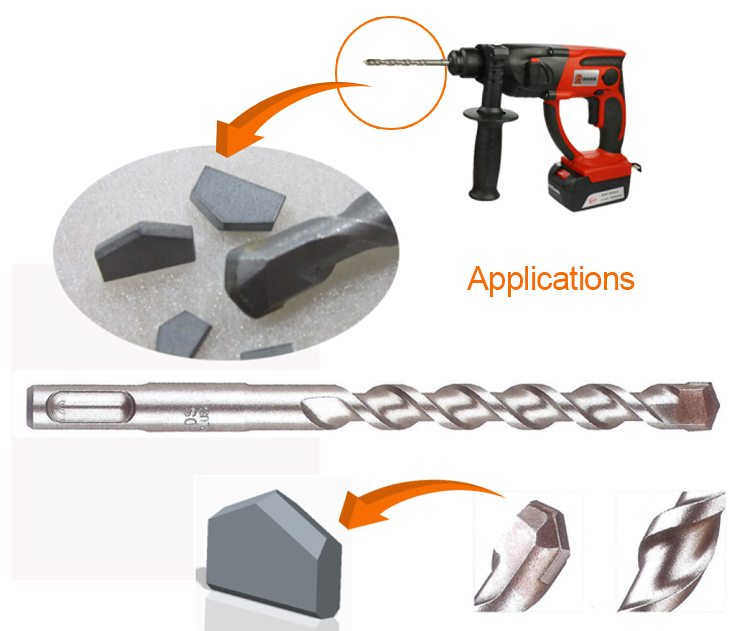

1, tungsten carbide tip are brazed on percussion drill or electric drill or pneumatic drill to drill wall, ground, mining ect.
2, widely used for electric drill in special condition, also used for electric dill or pneumatic drill for building,geology and coal mining
3, tungsten carbide tip suitable for harder rock or rock with hard stratum or metallic rock
4, tungsten carbide tip suitable for all kinds of cement drill bits

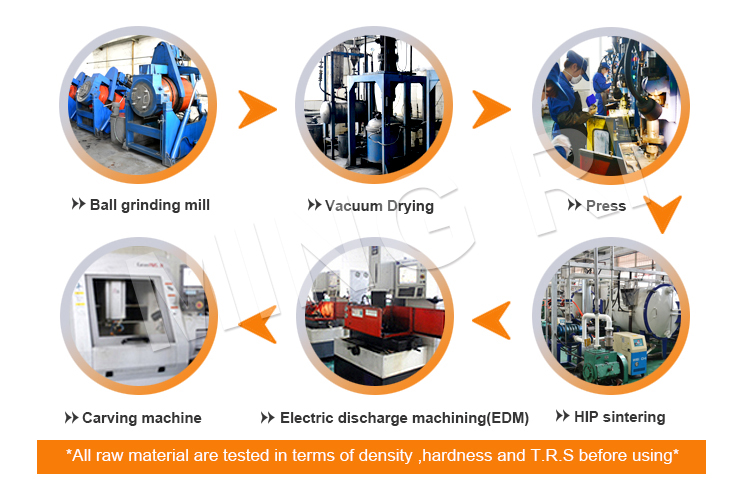

1, Soon after the order is confirmed, tungsten carbide tipproducts will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine
2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of tungsten carbide tipsamples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production
3, Bulk production ,press the raw materials to shape blanks,and all tungsten carbide tip blanks must be passed by semi finished inspection,
4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.
5, 1). cleaning/tumbling is to make the tungsten carbide tip look more beautiful.
2).The tungsten carbide tip can be ground according to customers’ order to a tolerance of +/-0.05
step 1, wrapped tungsten carbide tip in paper to avoid tungsten carbide tip to broke
step 2, put the tungsten carbide tip in inner small carton box
step 3, put the inner box into outter carton and fill the carton with foamed plastic
step 4, wrap the carton with packaging tape
step 5, you can choose any delivery way such as DHL,TNT,UPS ect.

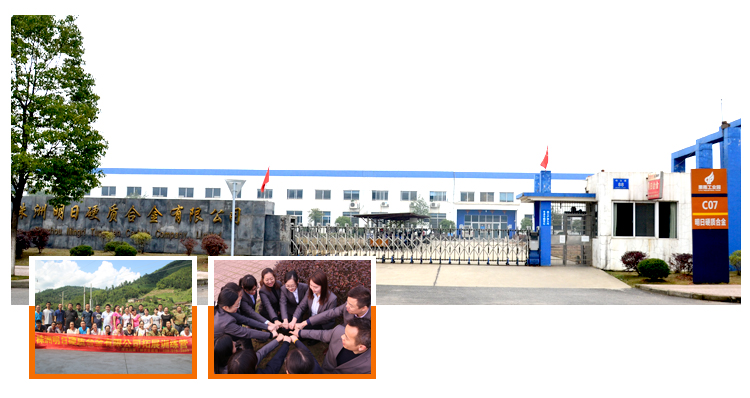

Our company have 230 workers, 8000 m2 non-dust workshop, 18 years experience , 10000 sets mould, 10 workshop included grinding powder workshop, pressing workshop, sintering workshop, processing workshop, mould production workshop, production capacity 50tons/month, well-known brand ”Ri Xin” has registered in Europe for 6 years , ISO, CE&FDA certificated, one hour reach Shanghai port, this is how we keep superior quality and competitive offers for global valued customers.
Our main products cover cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, also we can make all kinds of customized proposal to meet customers’ requirement.
1. We joined Alibaba Trade Assurance to make sure the buyer’s benefit. If can’t meet the details in the contract, 100% of your payment will be returned.
2. As a professional manufacturer, we have 18 years factory experience for tungsten carbide tip. We are devoting to the research and manufacturing of many different type and size.
3. You can see from the below picture that many customers visited our exhibition booth, more and more customers in the world are using our tungsten carbide tip, we received many good feedbacks or reviews from lots of countries.
