- Place of Origin:CN;HUN
- Brand Name:rixin
- Model Number:cemented carbide slitter blades
- Quick Details Type:Tungsten Carbide Disc knives for cutting fiber cement
- Grade:YG6X
- Application:cutting fiber silicate board
- Material:Tungsten carbide + cobalt
- HRA:85-93
- Thickness tolerance:±0.01 mm
- ID tolerance:+0.01 mm
- Working life:7-9 millions meters
- Surface:grinding and polishing to mirror
- Size:Can be customized

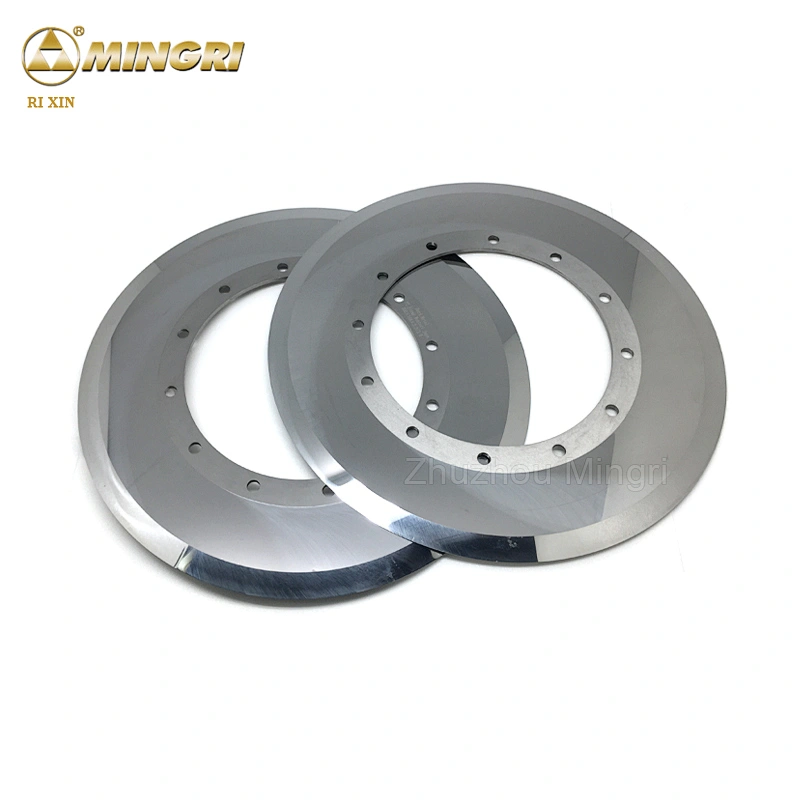

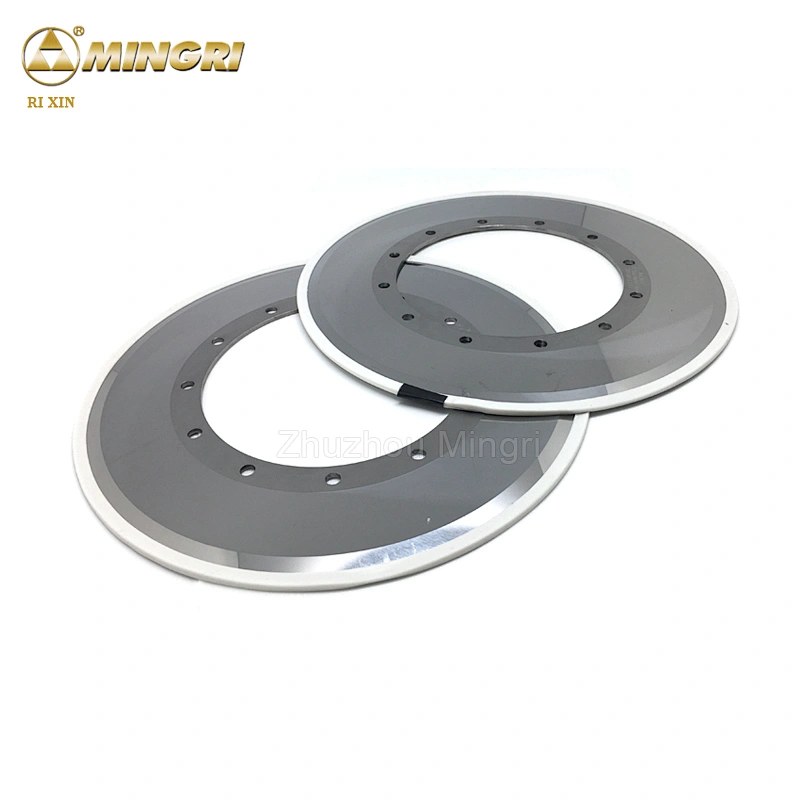

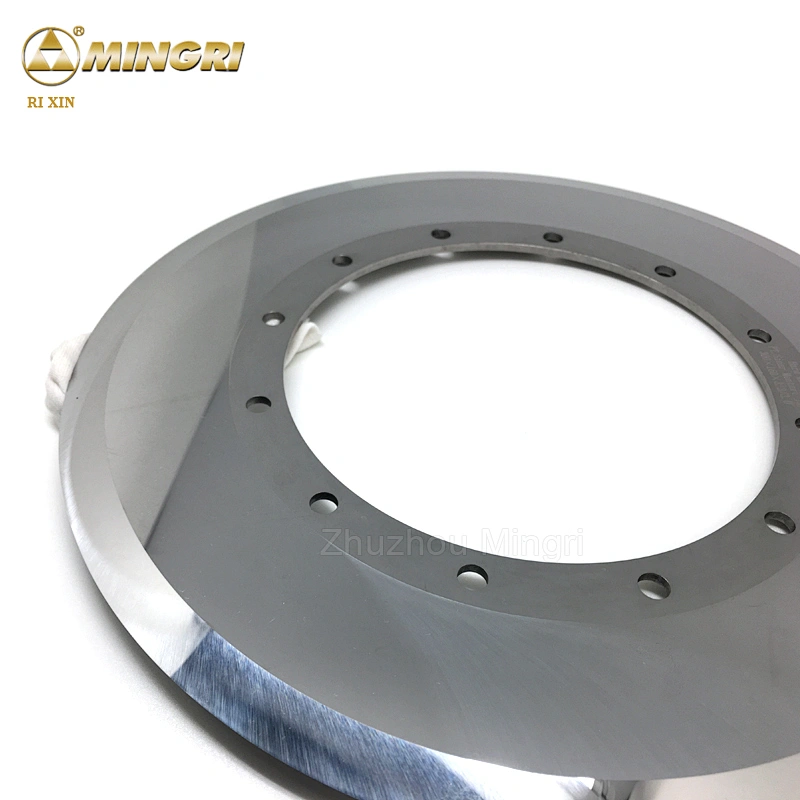

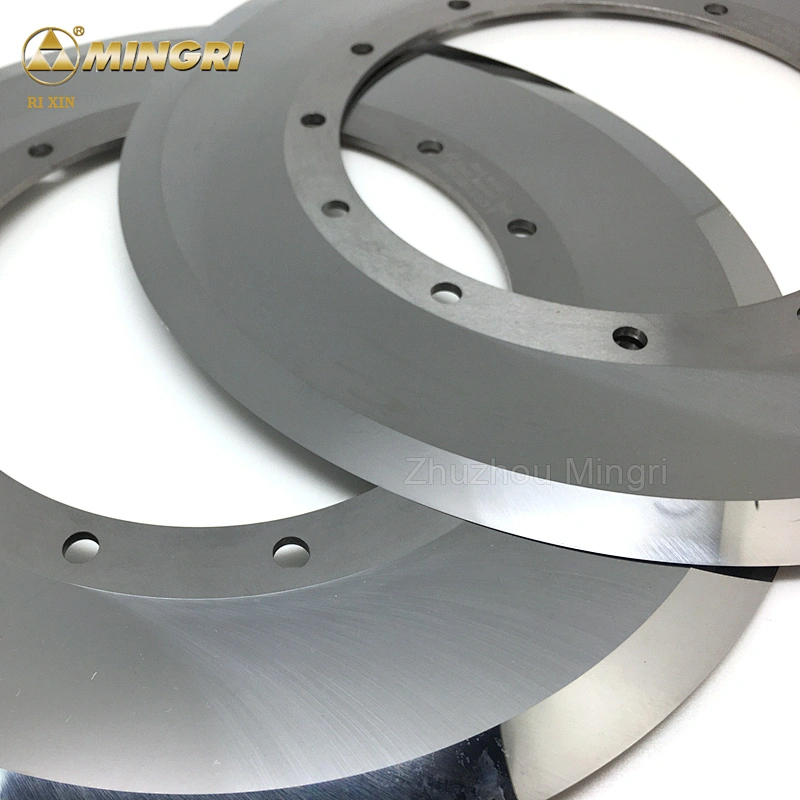

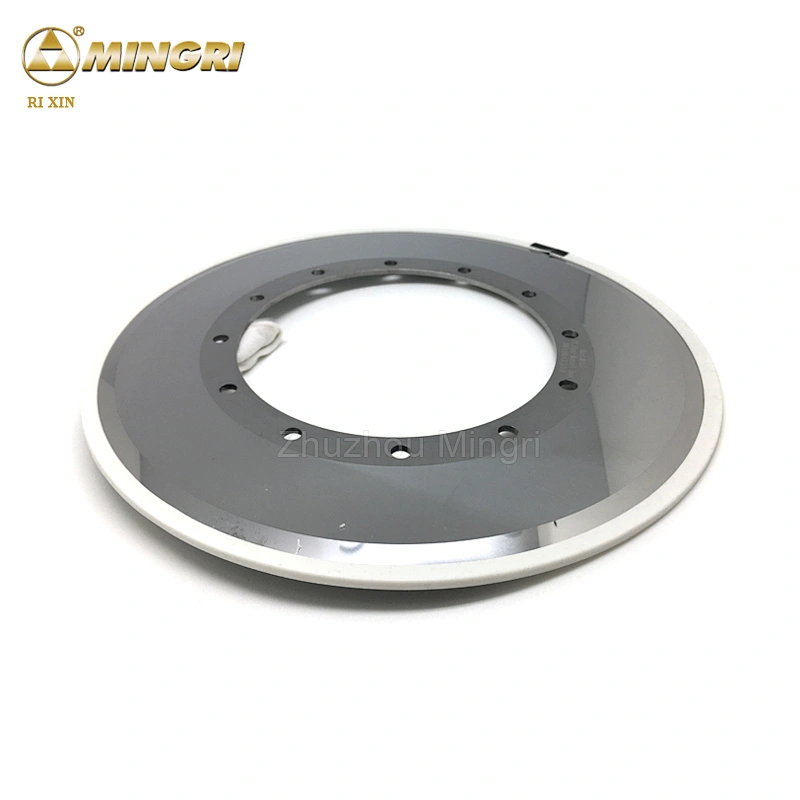

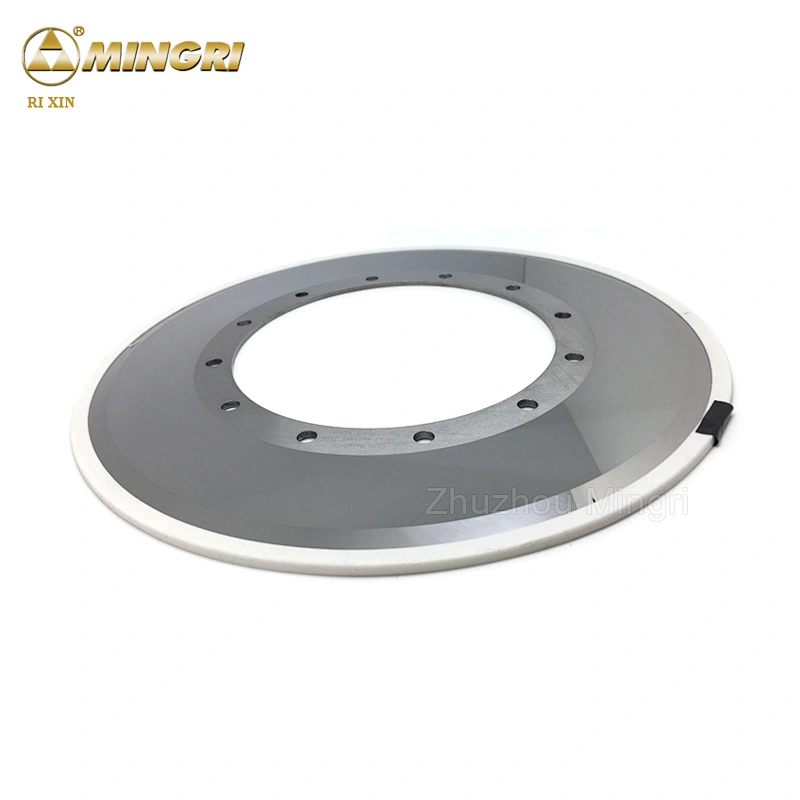

yg6x tungsten carbide circular blade round knives for cutting fiber cement roof
Advantages
1,Focusing on manufacturing tungsten carbide products over 19years.
2,Specialist manufacturer equipped with advanced processing machines and over160 technicians.
3,Over50 tons/month productivity to assure sustainable supply of products
4,Owingmould workshopto design & produce moulds for nonstandardproducts, and with mould
stocks over 10 thousandsets for different products.
5,Full ability to accept OEM & ODM orders.
6,Stringent quality control and quality consistency.
7,Professional mechanical & chemical inspecting labs to control the quality of rawmaterial and inspect physical & mechanical properties of finished products.

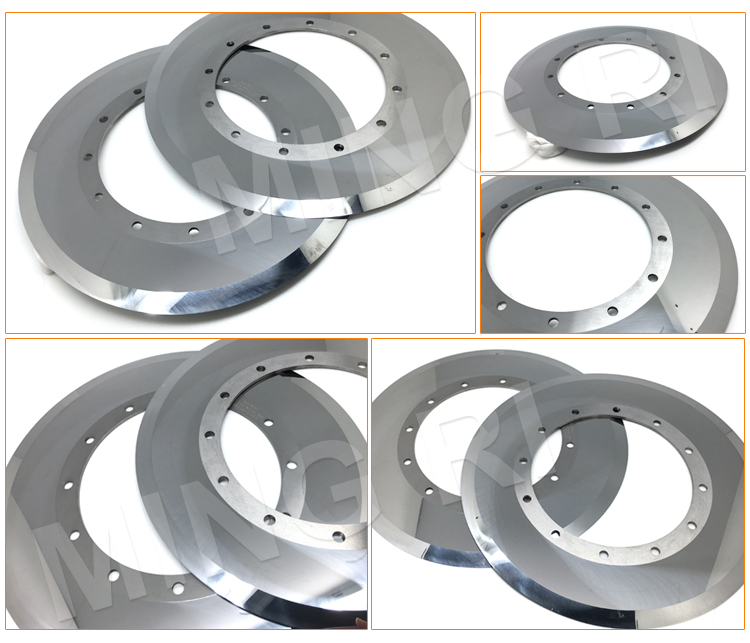

Product Display
Size we provide: Please see the table below
| Grade | Dimension(mm) |
| MR20 | Φ76*Φ25.4*1.2 |
| MR20 | Φ45*Φ8*0.3 |
| MR20 | Φ90*Φ22*1.5 |
| MR20 | Φ100*Φ40*1.0 |
| MR20 | Φ90*Φ25.4*1.2 |
| MR20 | Φ85*Φ32*1.2 |
| MR20 | Φ100*Φ25.4*1.5 |
| MR20 | Φ120*Φ25.4*2.0 |
| MR20 | Φ125*Φ25.4*2.0 |
| MR30 | Φ150*Φ25.4*2.0 |
| MR30 | Φ160*Φ25.4*2.0 |
| MR30 | Φ180*Φ25.4*1.8 |
| MR30 | Φ180*Φ25.4*2.0 |
| MR30 | Φ180*Φ45*2.0 |
| MR30 | Φ41.5*Φ15*8.0 |
| MR30 | Φ160*Φ70*5.0 |
| MR30 | Φ180*Φ25.4*2.5 |
| MR30 | Φ180*Φ25.4*3.0 |
| MR30 | Φ200*Φ25.4*2.0 |
| MR30 | Φ200*Φ25.4*2.5 |
| MR30 | Φ200*Φ25.4*3.0 |
| MR30 | Φ250*Φ25.4*2.0 |
| MR30 | Φ250*Φ25.4*2.5 |
| MR30 | Φ250*Φ25.4*3.0 |
| MR30 | Φ300*Φ25.4*2.0 |
| MR30 | Φ300*Φ25.4*2.5 |
| MR30 | Φ300*Φ25.4*3.0 |
| MR30 | Φ350*Φ25.4*2.5 |
| MR30 | Φ350*Φ25.4*3.0 |
| MR30 | Φ350*Φ25.4*3.5 |
| MR30 | Φ400*Φ25.4*3.0 |
| MR30 | Φ400*Φ25.4*3.5 |
| MR30 | Φ400*Φ25.4*4.0 |
Grade | Grain size | Density | T.R.S | Hardness | Suitable for cutting |
g/cm3 | ≥ N/mm2 | HRA | |||
MR020 | ultrafine grain | 14.5 | 3300 | 91.5±0.5 | domestic machine to cut corrugated board, chemical fiber,leather,sheet metal,battery |
MR030 | ultrafine grain | 14.1 | 3500 | 90.5±0.5 | foreign machine to cut corrugated board |
Production and Inspection

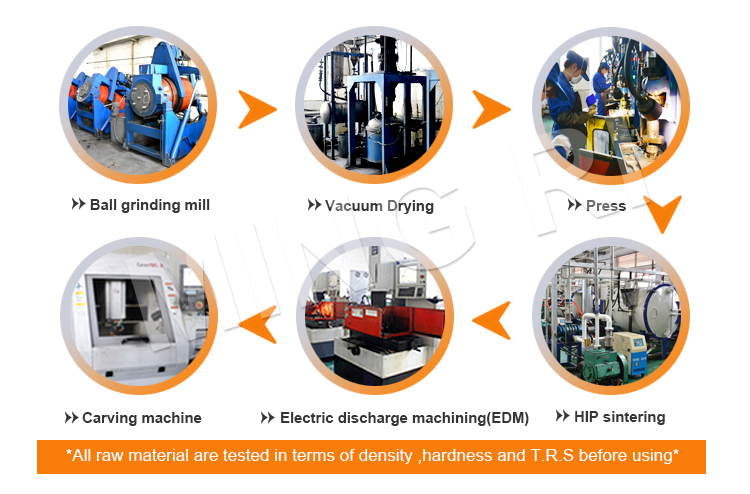

Production
1.WC powder
2.Ball grinding mill
3.Press
4.HIP sintering
5.Electric discharge machining(EDM)
6.Carving machine
All raw material are tested in terms of density ,hardness and T.R.S before using

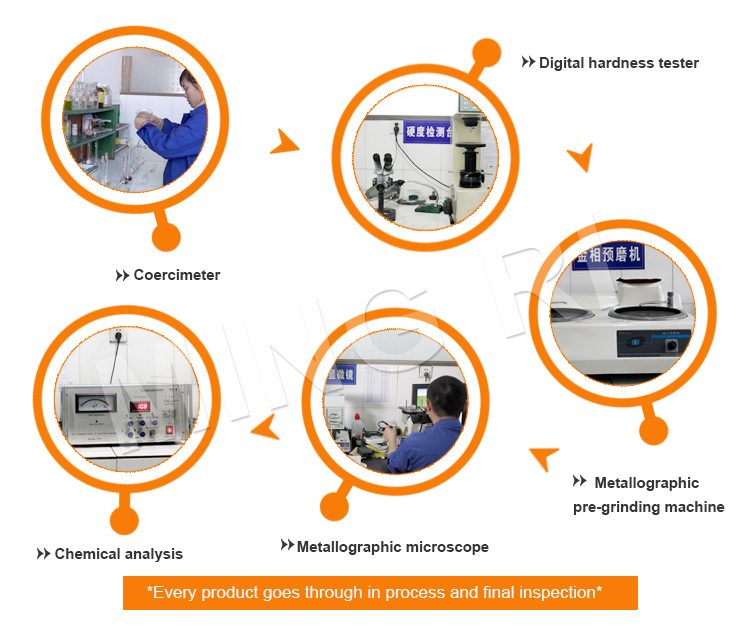

Test
1.Coercimeter
2.Digital hardness tester
3.Metallographic pre-grinding machine
4.Metallographic microscope
5.Chemical analysis
Enterprise certifications
As one of the most professional manufacturers of tungsten carbide products in China, Zhuzhou Mingri Cemented Carbide Co., Ltd supplies a wide variety of high quality products for customers
worldwide with management principle of"stable quality & reliable cooperation".
Packing and delivery:
1. Rubber protector for cutting edges, blade in bubble pack, carton case.
Max 10 pcs blades in one carton case
2.Exterior packaging: carton or wooden case
3.Other packaging upon your request
4.We also have the professional agents shipping our products to the customers.
Zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of 2001 with the investment of
RMB 40 million. We have up-to-date production machine line and a lot of technicians.
Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten carbide hometown , convenient transportation, from changsha airport just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours. A favorable peripheral environment for cemented carbide manufacturing provides a natural barrier. Convenient traffic for tomorrow's internationalization laid a wide road.
