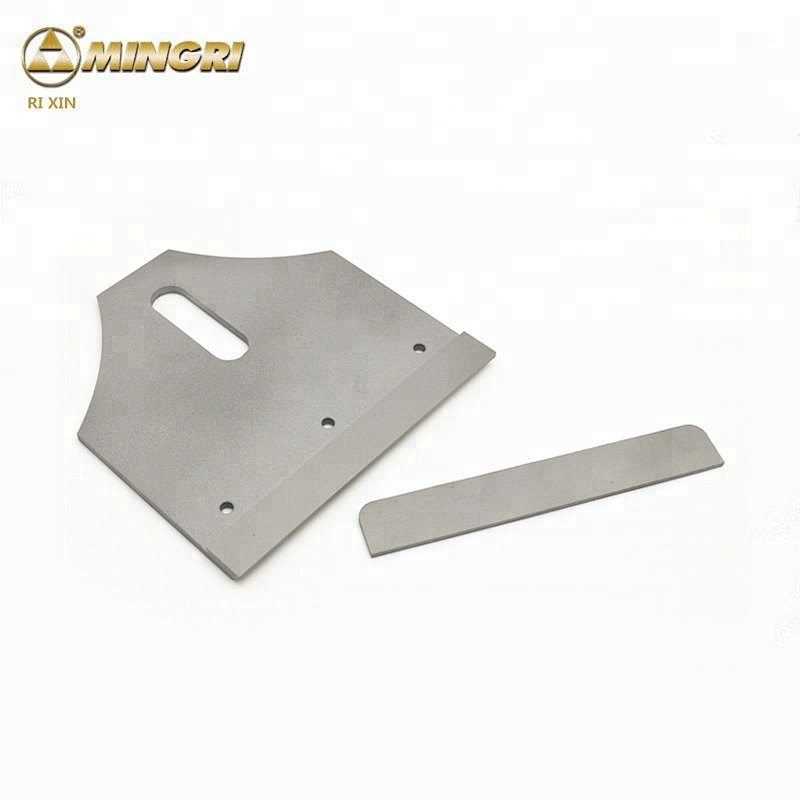

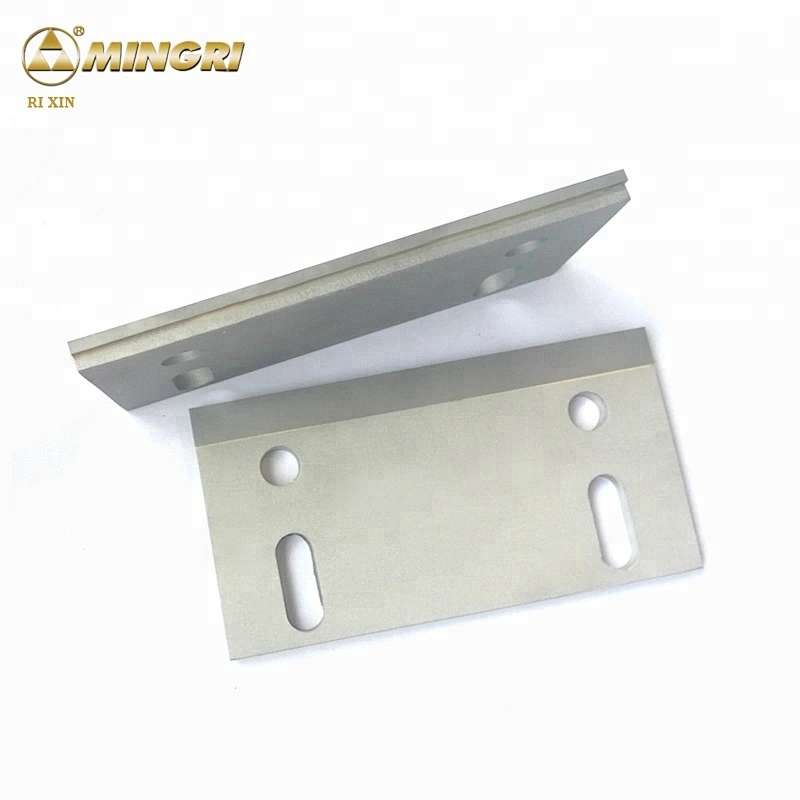

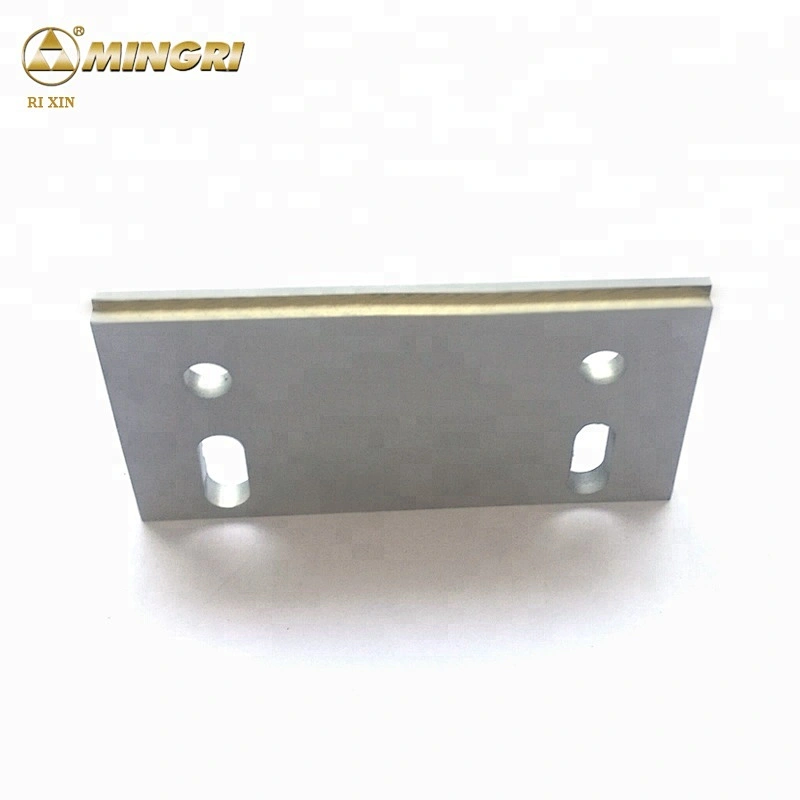

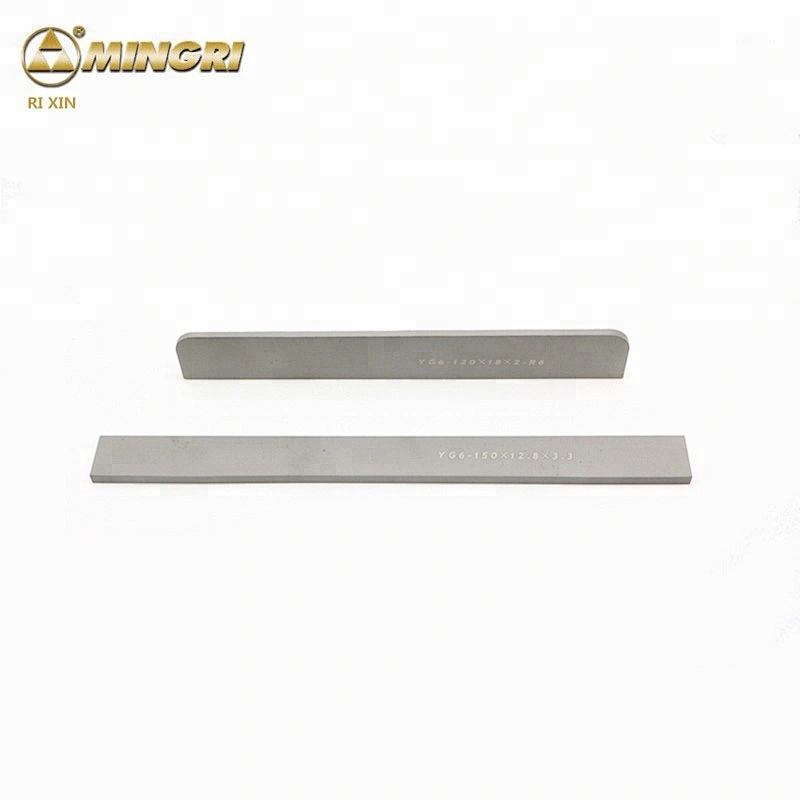

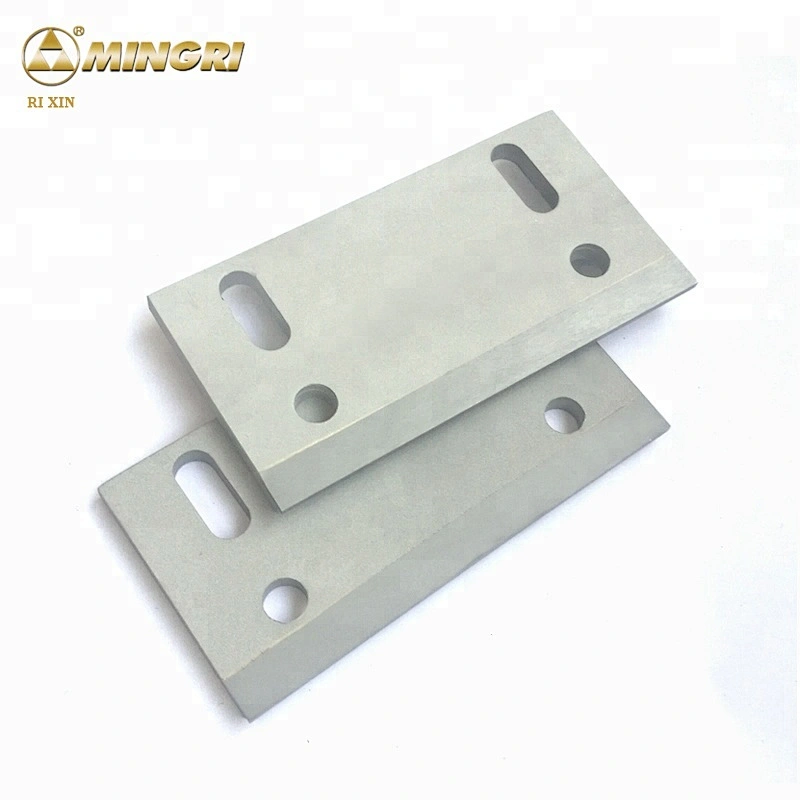

- Product name:Tungsten Carbide Blade Tips for Conveyor Belt Cleaner
- Application:Conveyor Belt Cleaner / conveyor belt scraper / scraper blade
- Certification:ISO9001:2008,ISO9001:14001
- Service:OEM & ODM
- Trial order:Acceptable
- Material:virgin tungsten carbide
- Grade:K10 K20 K30 YG6 YG8 YG11C all size available
- Payment:L/C, T/T etc
- Shipment:by sea or by air
- Delivery:within 20 workdays after payment done
- Place of Origin:CN;HUN
- Brand Name:RIXIN
- Model Number:Carbide Blade for Conveyor Belt Cleaner-1
High Quality Widia / Cemented Carbide / Tungsten Carbide Blade Tips for Conveyor Belt Cleaner
| Item | Tungsten carbide strip |
| Grade | K10, K20, K30, YG6, YG8, YG6A, YS2T, YG10X ETC. |
| Sizes | standard or customized.. |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | scraper blade, conveyor belt cleaner. |
Why are tungsten carbide blades used on belt cleaners?
Tungsten carbide tipped blades provide superior cleaning efficiency. They also feature a lower lifetime cost—due to their durability—compared to many other blade types. Traditionally, tungsten carbide blades have been compatible only with vulcanized belts. Today, technical advancements with certain blade options make these blades more compatible with mechanically spliced belts as well.
Are all tungsten carbide blades the same?
• Absolutely not! Carbide is a composite of carbide granules and binder metals that provides a very hard, long-wearing material for belt cleaner blades.There are several ways to vary the mixture.
• Some low cost carbides can have inferior wear resistance which results in short blade life. Others have poor impact resistance and can chip out—potentially causing damage to the belt.
• Many blade tips are weakened with voids or binder pooling due to inferior production processes. Bargain-priced carbide isn’t always a bargain.
Why choose a tungsten carbide blade. Look for blades that offer:
• Better cleaning efficiency. When optimally tensioned, the thin, hard blade will provide
superior cleaning performance.
• Good value. When you consider lifetime cost vs. initial cost, a tungsten carbide blade’s durability and lower required maintenance often makes up the cost difference over the life of the blade.
• Versatility. Some designs can be used with mechanical belt fasteners.
Where to use tungsten carbide blades.
• Highest cleaning efficiency is another attribute that makes tungsten carbide the right choice
in applications where unbeatable performance is required.
• Highly abrasive materials are commonly conveyed on belts that use these wear-resistant blades.
• Reduced maintenance is the reason why many users choose carbide-tipped blades; they’re well worth the investment in applications where less durable blade materials result in unacceptable wear rates, cause frequent retensioning tasks and increase maintenance costs.
Grades of High Quality Widia / Cemented Carbide / Tungsten Carbide Blade Tips for Conveyor Belt Cleaner
Properties and applications of carbide strips | ||||
Grade | Density | T.R.S | Hardness HRA | Performance & application recommended |
YM6 | 14.9 | 2400 | 90.5 | Good wear resistance, used for hard wood, used for processing original wood, aluminum section bar, brass rod and cast iron. |
YM6A | 14.85 | 2000 | 92.5 | Wear resistance higher than YM6, used for processing hard wood, original wood, aluminum section bar, brass rod and cast iron. |
YM8 | 14.7 | 2800 | 89.8 | High wear and impact resistance , suitable for machining dry wood, soft wood and non-ferrous metal section bar. |
YM2T | 14.25 | 2400 | 92 | Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. It is suitable for machining refractory alloys, stainless steel, high manganese steel, etc. |
YS25 | 13.0 | 2200 | 91 | Wear resistance and strength comparatively higher, suitable for machining cast iron, non-ferrous metal and non-metal materials. |
YM25 | 14.45 | 3000 | 91.8 | Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous,metal and non-metallid materials. |
Other grades of strips may be offered according to customers' requirement. | ||||
High Quality Widia / Cemented Carbide / Tungsten Carbide Blade Tips for Conveyor Belt Cleaner
Length: 5-330mm
Width: 5-330mm
Thickness: 1.5-66mm
Other sizes can be offered aacording to customers requirements.
High Quality Widia / Cemented Carbide / Tungsten Carbide Blade Tips for Conveyor Belt Cleaner
High Quality Widia / Cemented Carbide / Tungsten Carbide Blade Tips for Conveyor Belt Cleaner
We are specialized in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.
High Quality Widia / Cemented Carbide / Tungsten Carbide Blade Tips for Conveyor Belt Cleaner
Workshop
We have powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops and physical and chemical labs for inspection. We have hundreds of updated equipments to make sure month capacity 50 tons and excellent quality.
How to ensure the high quality standard?
Do you want to know the details?
Please follow......
Production & Testing
All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.
