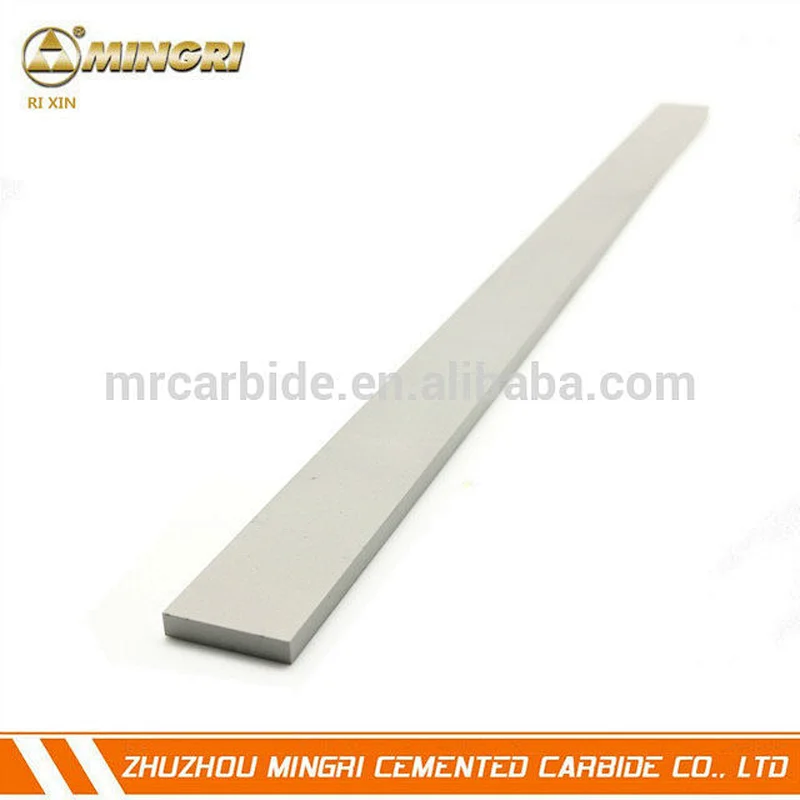

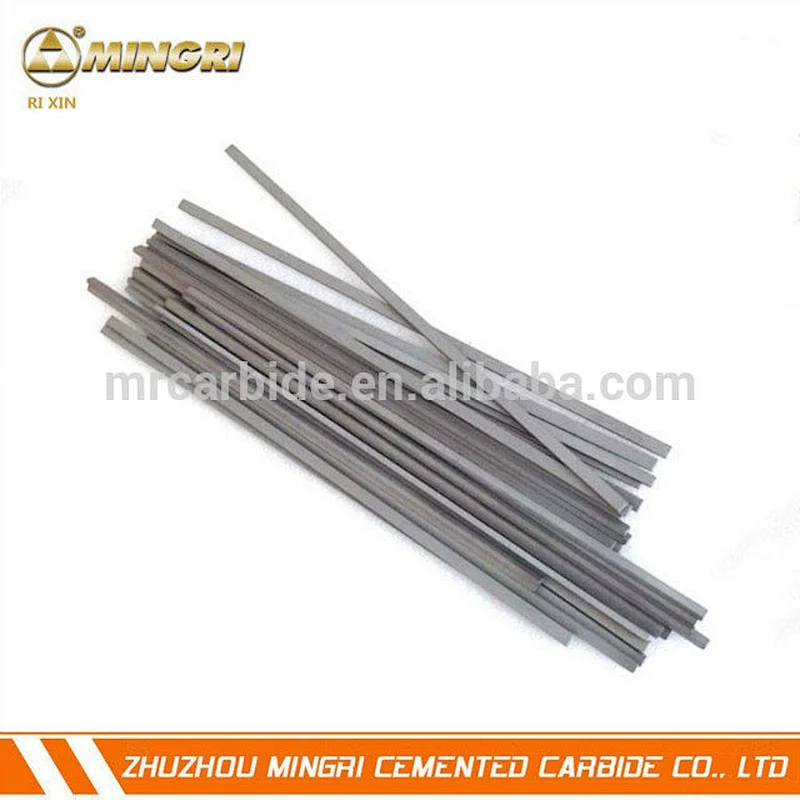

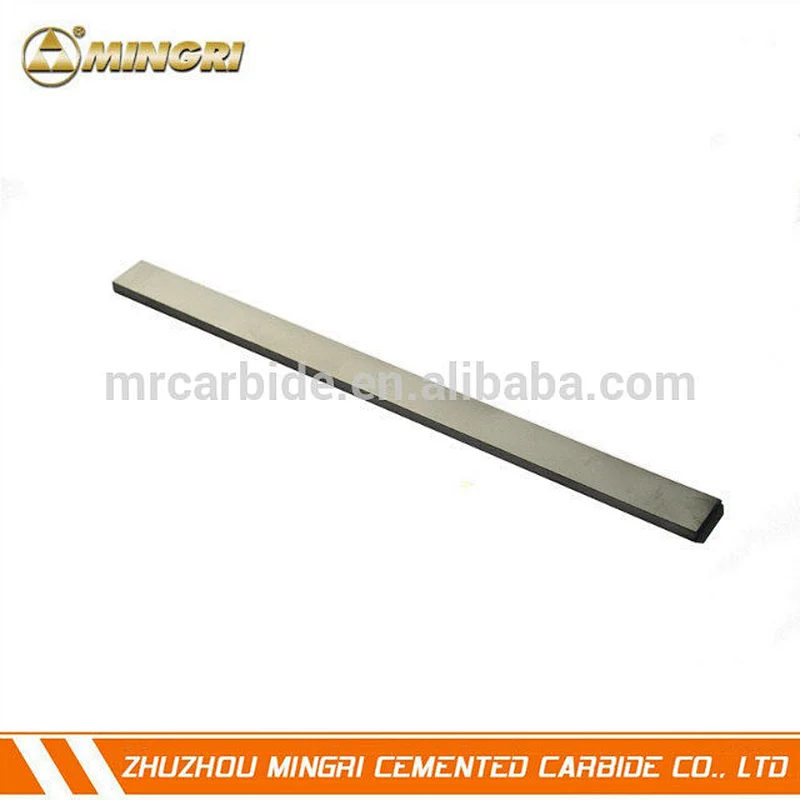

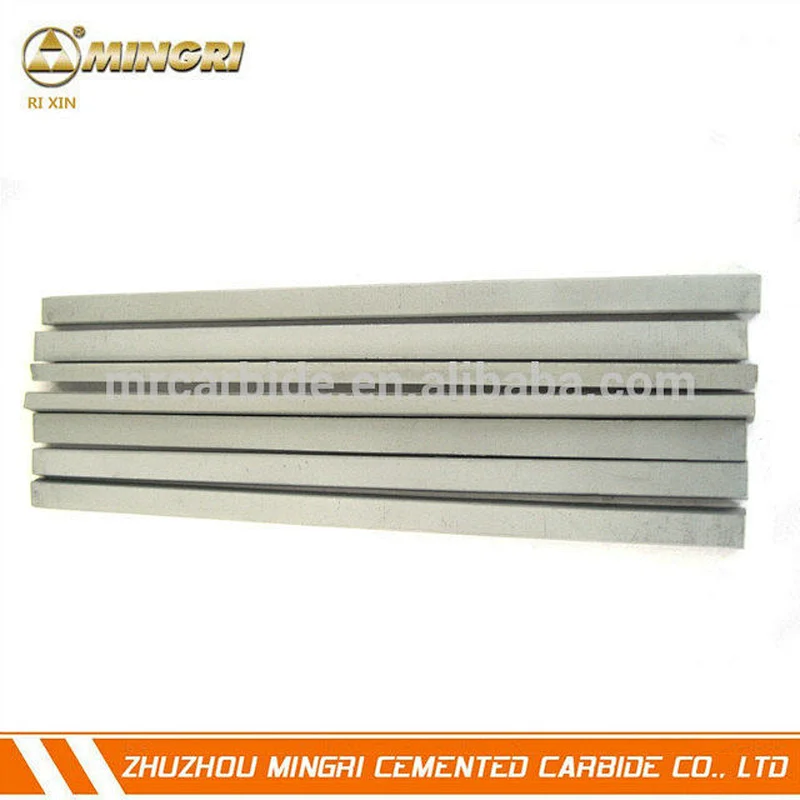

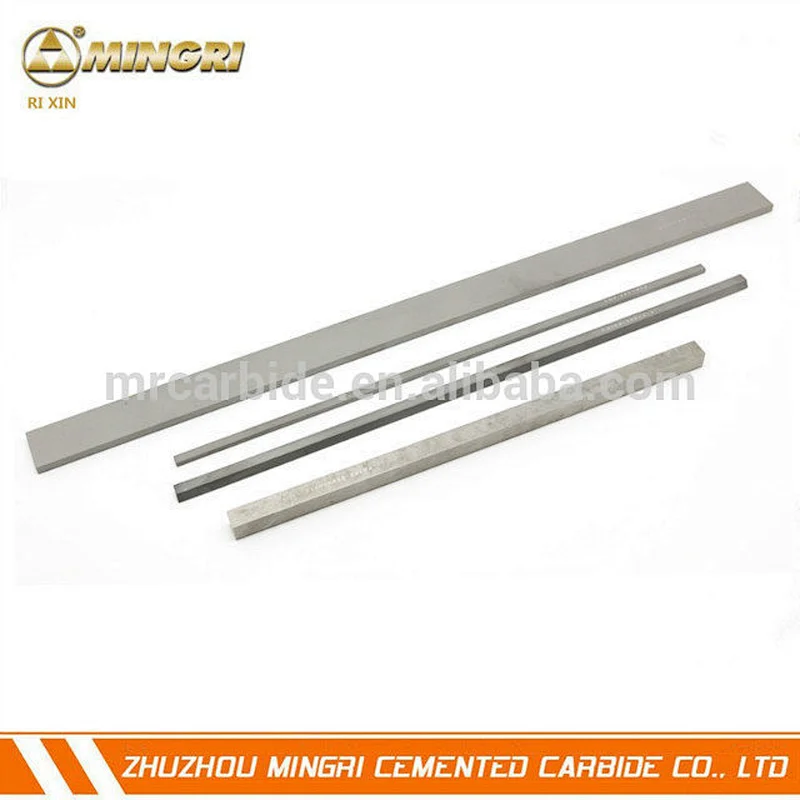

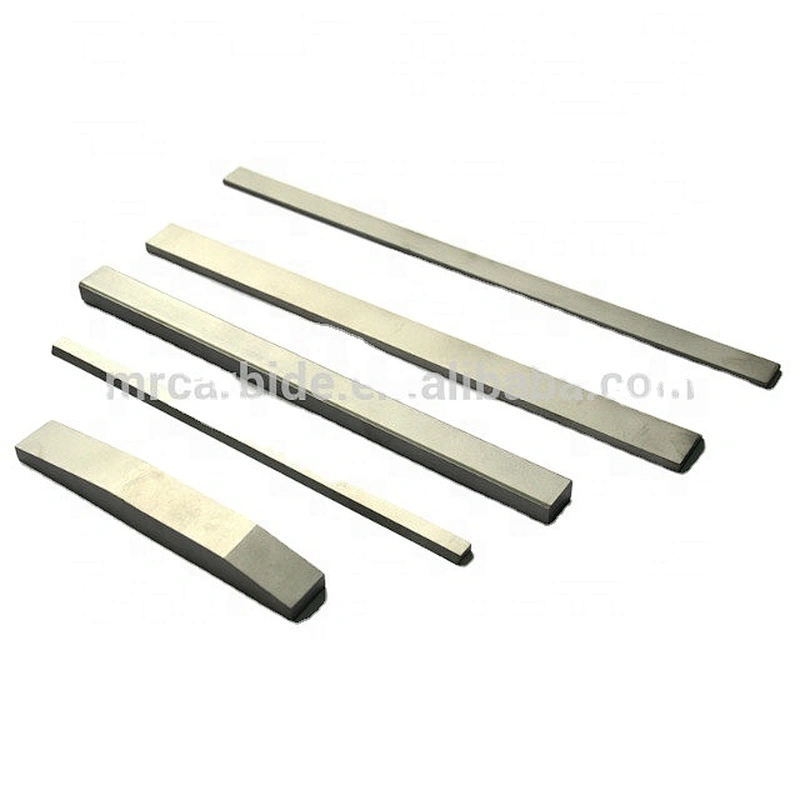

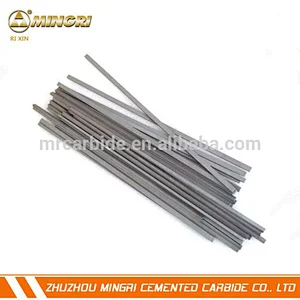

YG6 YG8 Tungsten Carbide Strips for sand making VSI crusher machine

YG6 YG8 Tungsten Carbide Strips for sand making VSI crusher machine

Model NO.: VSI strip-01
Price:: US $ 27.69-27.69 / pieces
Delivery: FOB
Minimum order quantity: 100 pieces
Supply Ability: 50tons pieces / Month
Country of Origin: China
Stock Time: 15 Days

Quantity:

Product Description

Material:WC+CO
Product name:Cemented carbide strip
Surface treatment:sand blasting

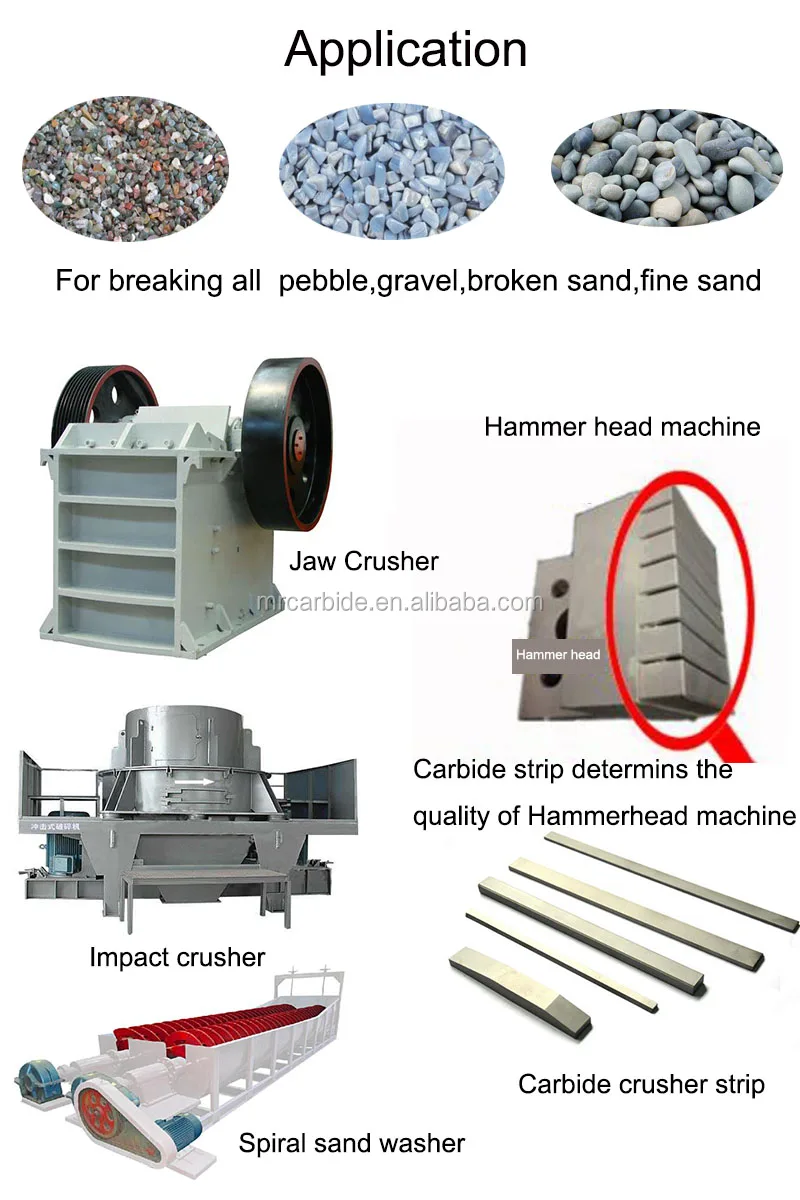

Application:breaking stone to sand
Features:High hardness
Furnace:Hip sintering
Type:Ground/Blank
Usage:stone breaking
Grade:YG6/YG8
Color:Silver Gray
Place of Origin:CN
Brand Name:Rixin
Model Number:VSI strip-01

YG6 YG8 Tungsten Carbide Strips for sand making hard alloy

Grade& application

Grade	Density	HRA	T.R.S	Performance&Application
RX8D	14.7	90.5	2400	Suitable for breaking limestone, rock, sandy shale, iron-poor rock, silicified argillaceous sandstone, copper-bearing pyrite
RX8	14.7	90	2800	Suitable for crushing hard sandstone, quartzite, dense silicified dolomite, silicified quartzite, iron ore, diorite, granite, etc.
RX8C	14.7	88.5	2600	Suitable for metamorphic sandstone, granite porphyry, granite, ordinary limestone, open-air granite, dolomite, magnetite, etc.
RX11C	14.4	87	2700	Suitable for crushing medium hard and hard granite, hornblende, siliceous plate Rock, copper-bearing pyrite, marble, sandstone, basalt, etc.
RX 15	14.1	87	3000

Description:

HIP sintering, wear resistance,good impact resistance,high bending strength,high bonding strength.
Widely used for motors,electronic progressive dies and punching blank material
Often used for machining refractory alloy,hard wood,aluminum section bar,brass rod and cast iron.
Available OEM and ODM services .

Grades,properties and application of cemented carbide strips:

Grade-Density(g/cm³)-Hardness(HRA)-T.R.S(Mpa)-Application recommend

Grade YG6-14.9-90.5-2400-Good wear resistance,suitable for machining hard wood,raw wood,aluminum section bar,brass rod and cast iron.

Grade YG6A-14.8-92.5-2000-Wear resistance higher than YG6,suitable for machining hard wood,raw wood,aluminum section bar,brass rod and cast iron.

Grade YG8-14.7-89.8-2800-High wear and impact resistance,suitable for machining dry wood,soft wood and non-ferrous metal section bar.

Grade YS2T-14.2-92.0-2400-Fine grain alloy,with high wear reistance,bending strength,bonding resistance and thermal strength.It’s suitable for machinng refractory alloys,stainless steel,high manganese steel and etc.

Grade YS25-13.0-91.0-2200-Wear resistance and strength comparatively higher,suitable for machining cast iron,non-ferrous metal and non-metallid materials.

Grade YL10.2-14.4-91.8-3000-Wear resistance and strength comparatively higher,suitable for machining cast iron,non-ferrous metal and non-metallid materials.

Remark:Other grades and size can be offered as per customer requirements.

Products packing:

We prefer inner package to ensure the products won’t get damaged between each other.

Firstly packed in small box fixed with cotton or foam.Then packed in a big carton or using wood carton box if needed.Or packed as per client requests.

Company profile:

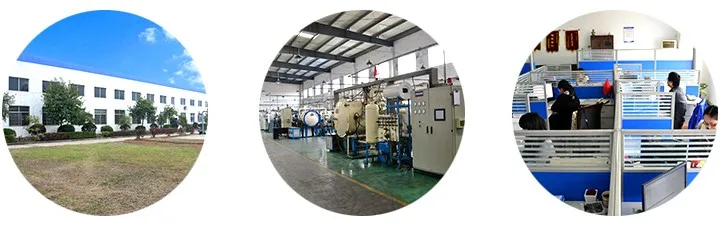

Zhuzhou Mingri Cemented Carbide Co.,Ltd Located in Liyu industrial area,Zhuzhou city,Hunan province,China,owns an area of over 30000 sm,we have up-to-date production lines,advanced facilities,a staff of over 130 professional and technical staff.We also have been awarded of ISO9001:2008 and ISO14001:2004 certificates.

What kind of products can we provide?

Our main products including tungsten carbide dies for screws and nuts,TBM cutter bits,percussion bits,tungsten carbide plates,strips,rods,saw tips,buttons,sealing rings and etc.We have customers throughout China,Europe,America,Austrilia,Japan,Taiwan and Southeast Asia.

What’s our advantages ?

Advanced production lines ensure all of our customers' demands,over 50 tons production capacity,strict quality control,keep strictly of bulk delivery date,with which,we can gain a very good reputation in Tungsten carbide industry !

We are looking forward to cooperating with you.

Our advantages:

1.Strong R&D team. Professional engineers serve for clients, recommending product and grades as per your applications. We also offer after-sale service.

2.Strong Mould R&D team. We support customization of products as per requirements, and ensure high working efficiency and product quality.

3.Successful cooperation case: We cooperate with clients in domestic and abroad, and get good feedback from them.
