- Product name:Widia Tungsten Cemented Carbide Strips for VSI Crusher Rotor Tip
- Material:WC+Cobalt
- Service:ODM,OEM
- Surface:Grinding, Polishing, Sand-blasted
- Application:Hammer cursher, vsi crusher, sand maker
- Features:Good wear resistance, impact resistance, High bending strength
- Grade:YG6, YG8, YK05, KK06H, YG8C, ZD15, YG9C, YG10C, YG11C, YG13C
- Performance:TRS > 3000 N/mm3, Hardness: 85-92HRA
- Size:OEM Accepted
- Trial order:Acceptable
- Place of Origin:CN;HUN
- Brand Name:RI XIN
- Model Number:tungsten carbide crusher bar-2

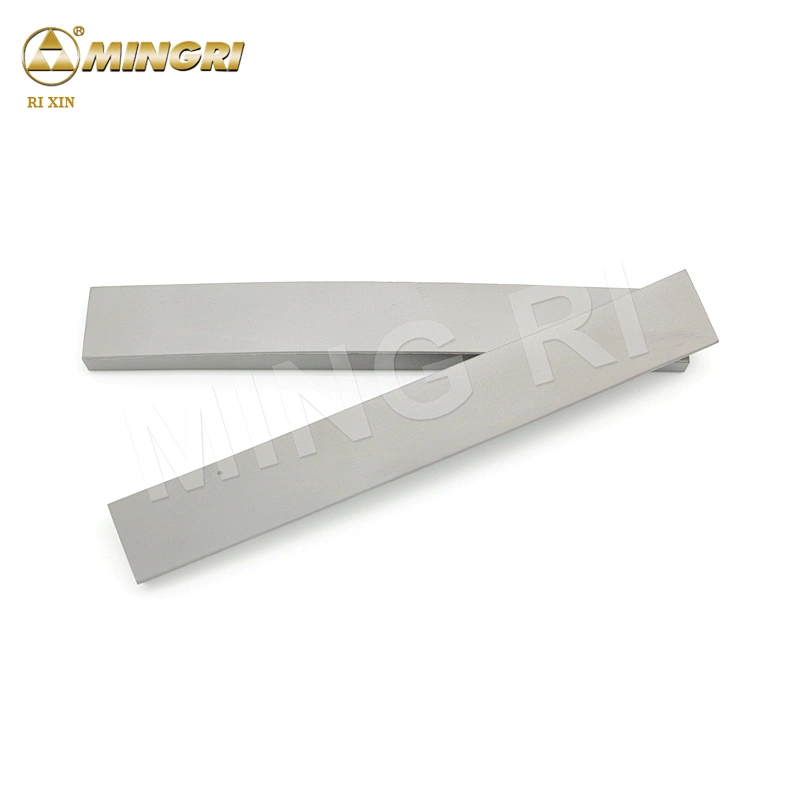

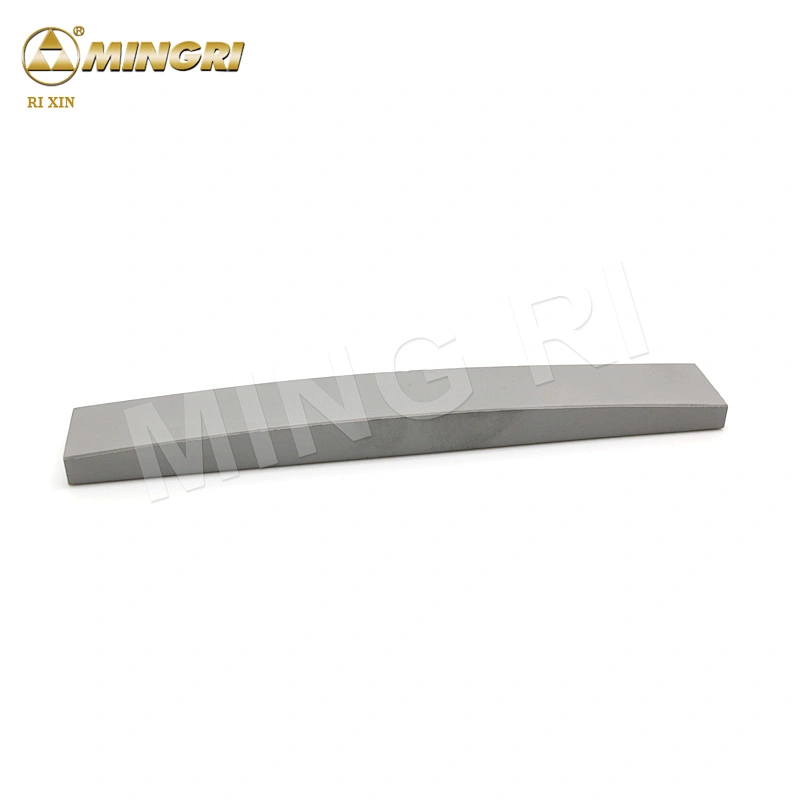

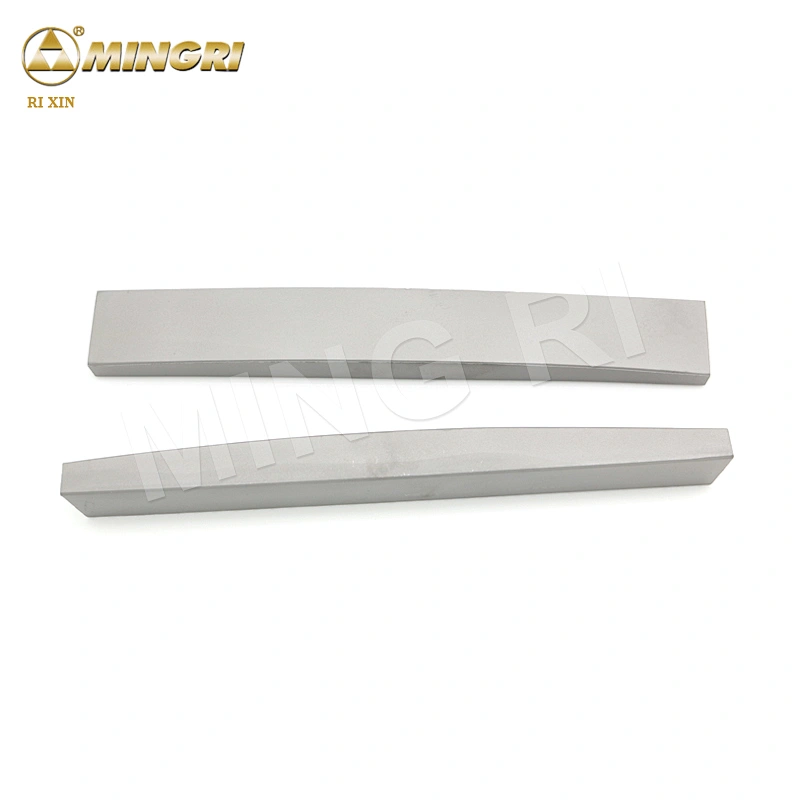

Widia Tungsten Cemented Carbide Strips for VSI Crusher Rotor Tip
Item | Tungsten carbide strip |
Grade | YG6, YG8, YK05, KK06H, YG8C, ZD15, YG9C, YG10C, YG11C, YG13C, YG15C, YG15. |
Sizes | customized or standard |
Brand | Rixin |
Country of Origin | Zhuzhou, China |
Usage | Hammer cursher, vsi crusher, sand maker |

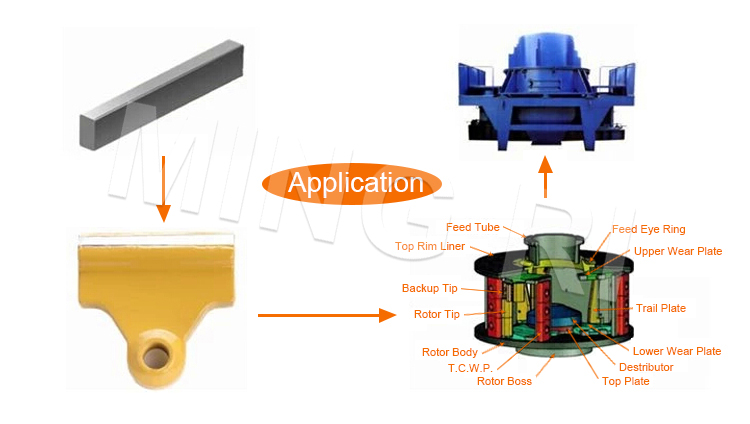

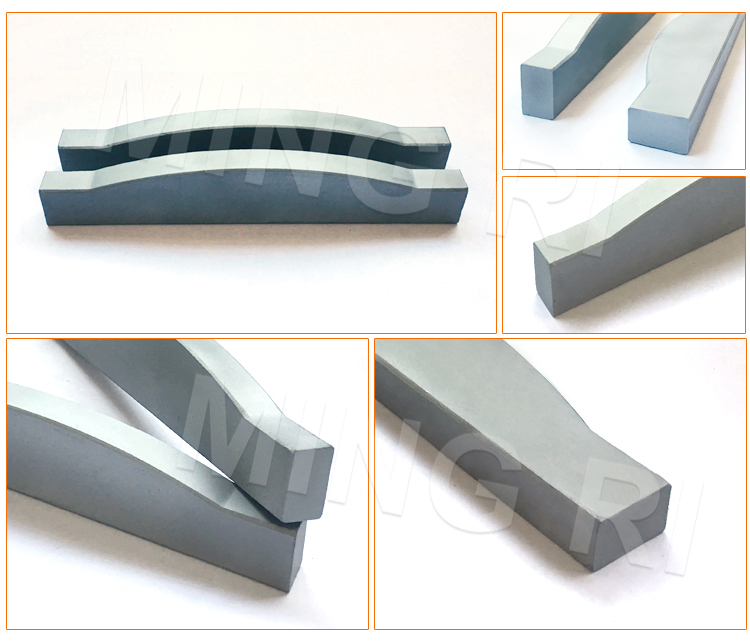

Tungsten Carbide Crusher Hammer Rectangular Bar for Sand Making Machine, in another way sand making machine wear block, belongs to the core part of the vertical impact crusher (sand making machine). It is widely used in mines, sand, cement, metallurgy, hydropower engineering, ore processing and other industries with its strong wear resistance and high impact toughness, improves the life of sand making machines.

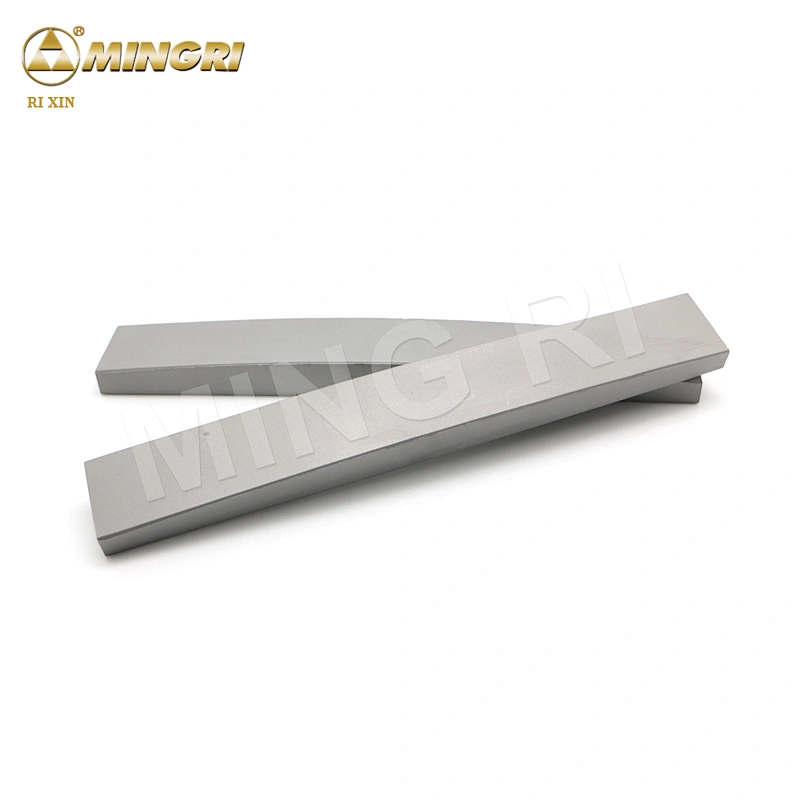

Widia Tungsten Cemented Carbide Strips for VSI Crusher Rotor Tip
Grade | Density | T.R.S | Hardness | Performance & application recommended |
g/cm3 | MPα | HRA | ||
MK4 | 15.1 | 1800 | 90 | Mainly used as small buttons for percussion bits to cut soft and medium hard formations. |
MK6 | 14.9 | 2100 | 90 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring. |
MK6 | 14.7 | 2400 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
MR06H | 15 | 3000 | 90.5 | Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks. |
MK15 | 14 | 2500 | 87.5 | Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks. |
MK10 | 14.7 | 2450 | 88.5 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
MK15 | 14.7 | 2450 | 87.8 | Suitable to strips, conical buttons for rotary,percussion-resistant, geological prospecting,buttons, cut soft and medium hard formations. |
MK20 | 14.4 | 2550 | 87 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
MK25 | 14.5 | 2600 | 87.5 | Primarily for the buttons and inserts of rotary percussion bits to cut medium hard and very hard formations. |
MK30 | 14.4 | 2600 | 87 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
MK40 | 14.2 | 2650 | 86.5 | Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations. |
MK50 | 14 | 2700 | 86.5 | For oil cone drill bits, for medium soft and medium -hard rocks. |
Other grades can be offered according to customers' requirement.

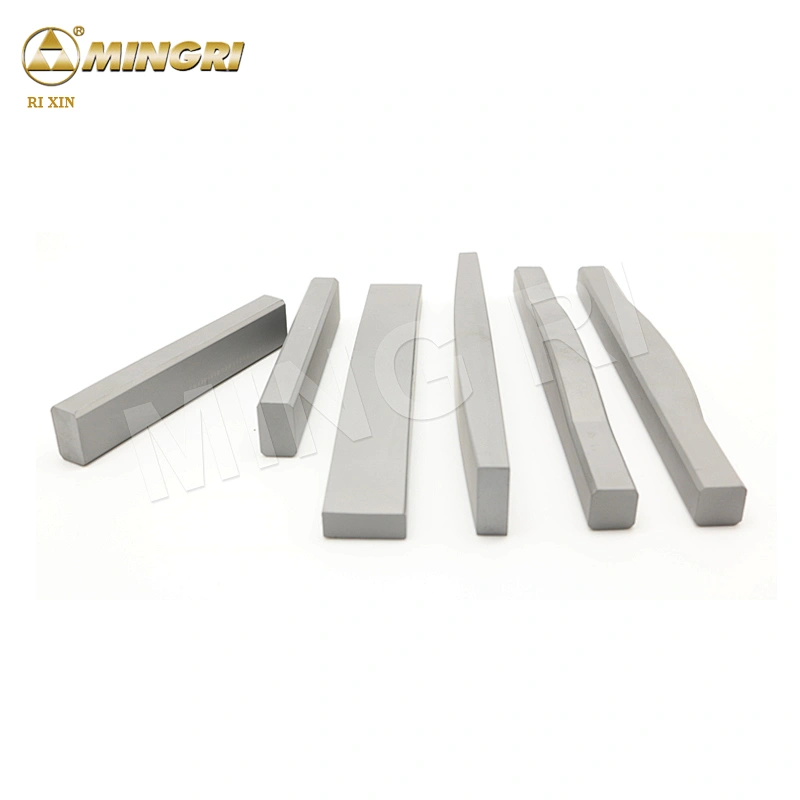

Widia Tungsten Cemented Carbide Strips for VSI Crusher Rotor Tip

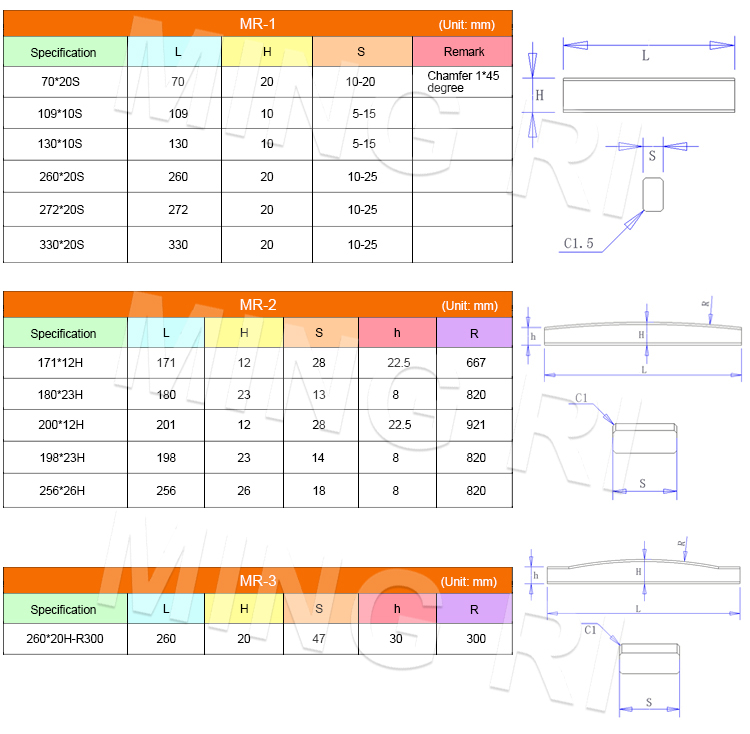

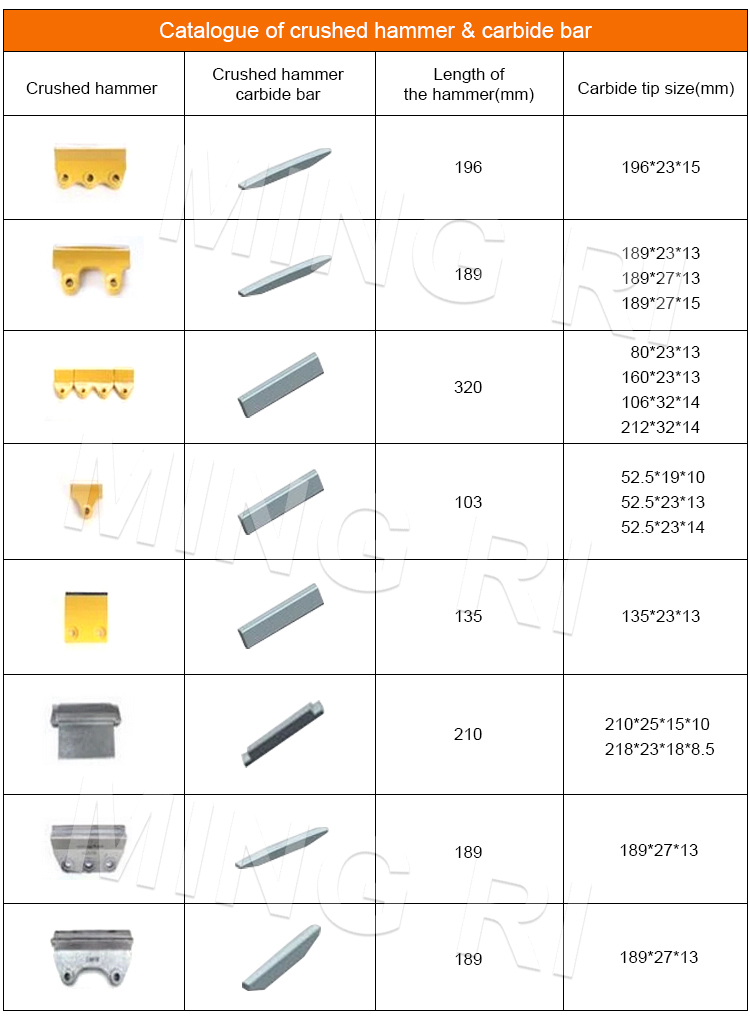

Other sizes can be offered aacording to customers requirements.
Widia Tungsten Cemented Carbide Strips for VSI Crusher Rotor Tip
| Packing | Paper+paper boxes+exported wooden cartons or paper cases. As a manufacturer, Mingri can provide any kinds of package as buyer's requirement. |
| Shipping | UPS,TNT,EMS,Fedex,DHL,or as you request. |
| Delivery | 7-10 days after confirm all details. |
Widia Tungsten Cemented Carbide Strips for VSI Crusher Rotor Tip

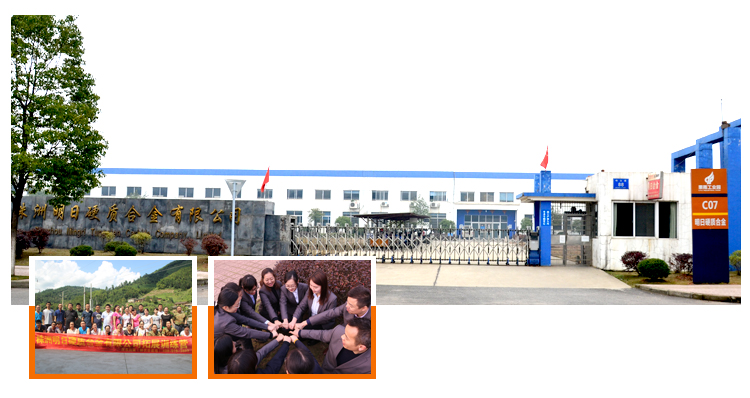

Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with the investment of 10 million dollars, area of 33300 square meters and 160 staffs. We have obtained 35 patents in invention, utility model and design , and passed ISO9001:2015 Certification in quality and GB/T 24001-2004/ISO 14001:2004 Certification in environment. offering all kinds of high quality tungsten carbide products and technical services to all clients. Our products are exported to US, Europe, Japan, Taiwan and South-east Asia etc. We have won support and trust from customers both home and abroad.

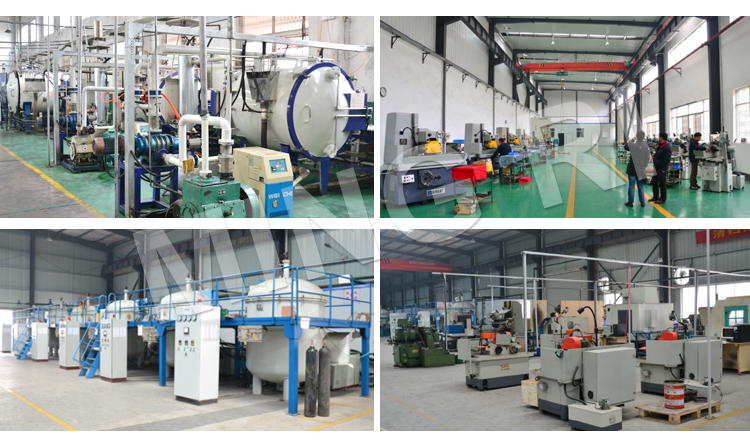

Workshop

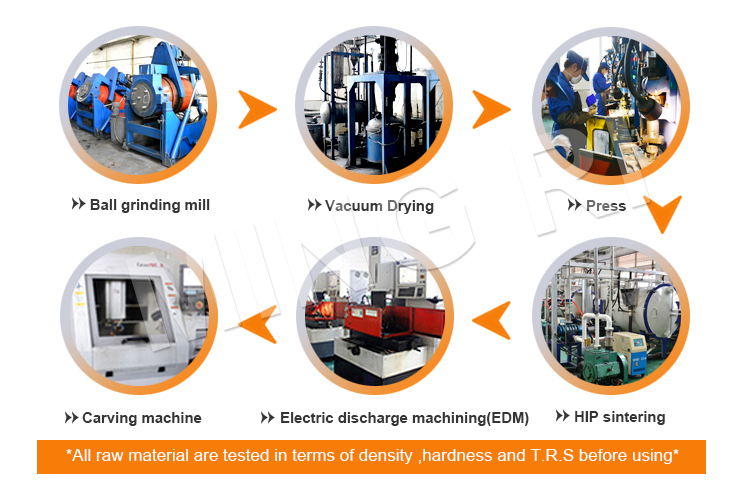

We have powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops and physical and chemical labs for inspection. We have hundreds of updated equipments to make sure month capacity 50 tons and excellent quality.
How to ensure the high quality standard?
Do you want to know the details?
Please follow......

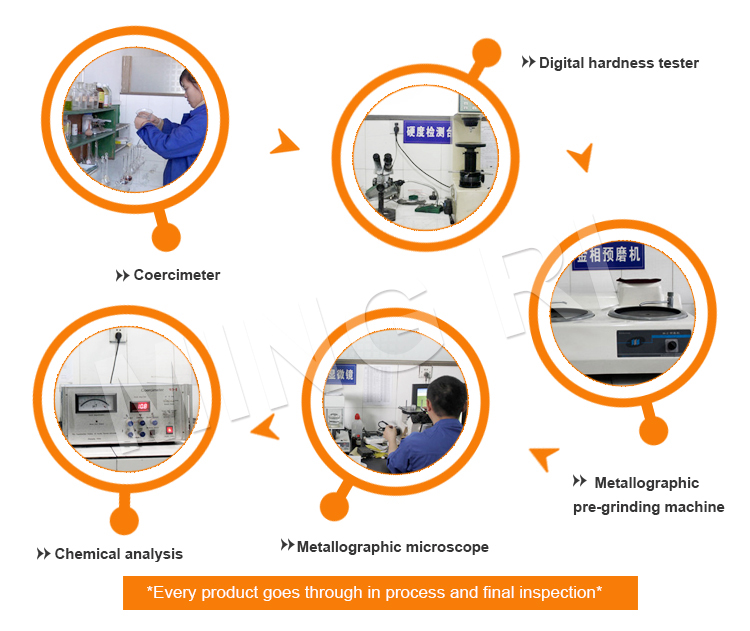

Production & Testing
All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.
We passed ISO9001:2000 in 2003 and keep improving the quality everyday. We have been always trying our best to provide our customers with high quality, the best price and satisfactory service.
Team and Exhibitions
