- Product name:Tungsten carbide strip block sheet flat bar
- Application:For crush glass
- Certification:ISO9001:2008,ISO9001:14001
- Service:OEM & ODM
- Trial order:Acceptable
- Material:virgin tungsten carbide
- Grade:K10 K20 K30 YG6 YG8 YG11C all size available
- Payment:L/C, T/T etc
- Shipment:by sea or by air
- Delivery:within 20 workdays after payment done
- Place of Origin:CN;HUN
- Brand Name:Rixin
- Model Number:scraper knives-01

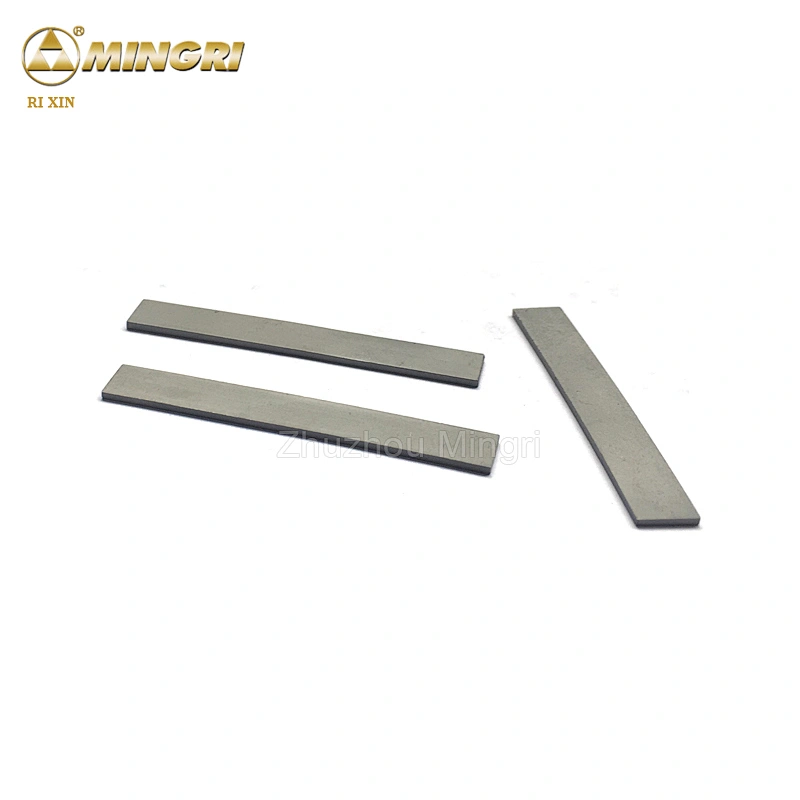

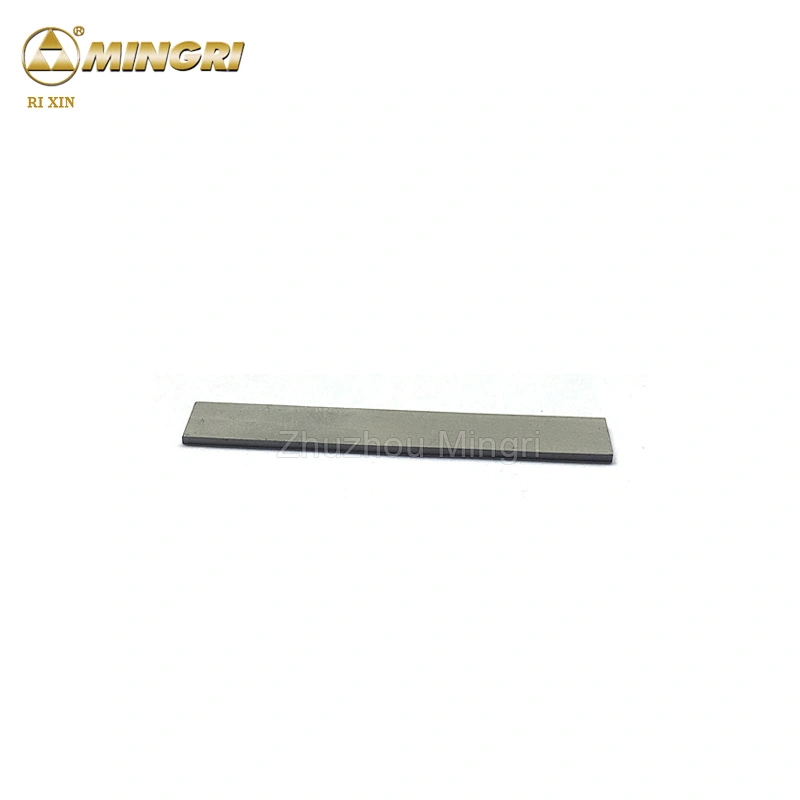

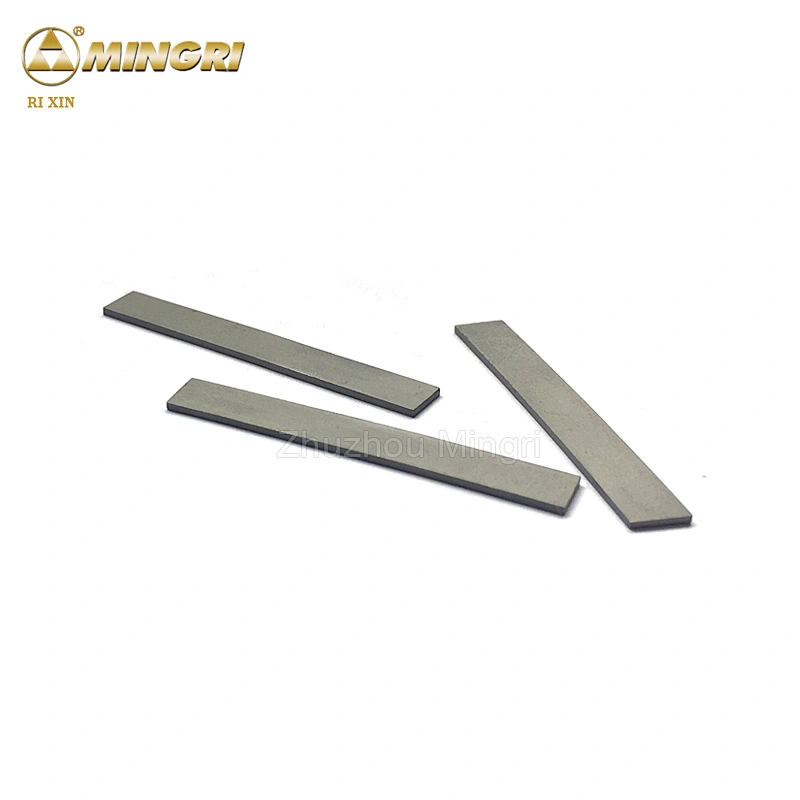

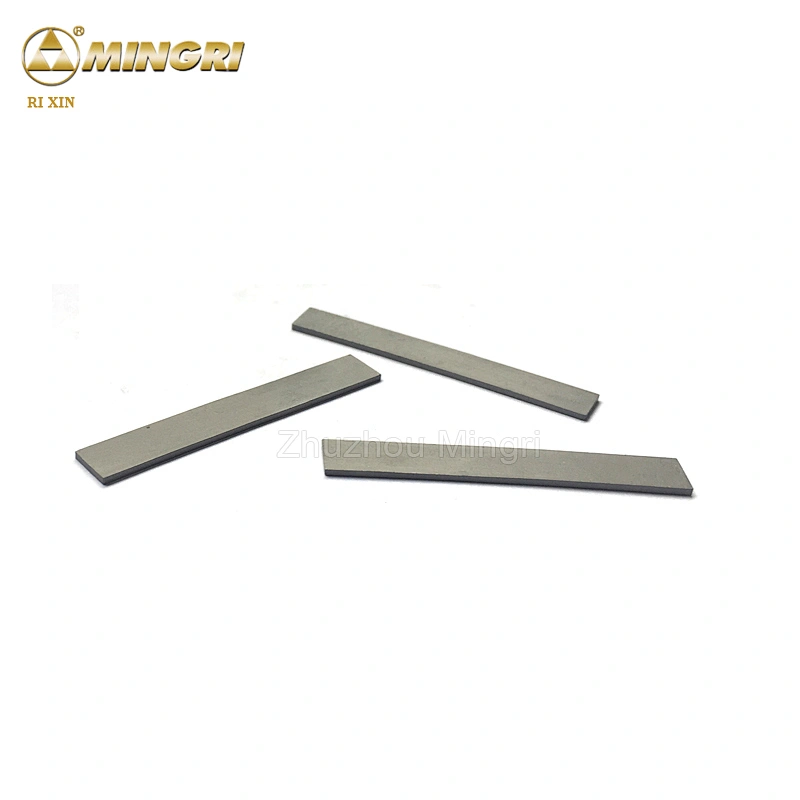

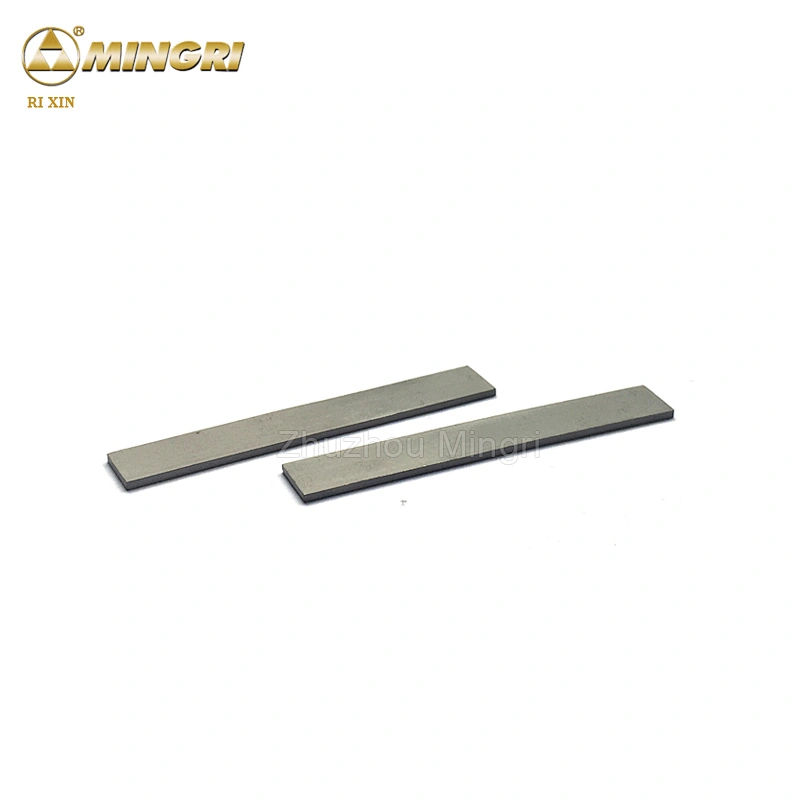

K10 K20 factory price wear resistance tungsten carbide strips for crush glass
Grades of K10 K20 factory price wear resistance tungsten carbide strips for crush glass
| Properties and applications of carbide for strips | ||||||||
| Grade | Density | T.R.S MPa | Hardness HRA | Performance & application recommended | ||||
| YM6 | 14.9 | 2150 | 90 | Good wear resistance, used for hard wood, used for processing original wood, aluminum section bar, brass rod and cast iron. | ||||
| YM6A | 14.9 | 1860 | 92 | Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum section bar, brass rod and cast iron. | ||||
| YM8 | 14.7 | 2320 | 89.5 | Wear and percussion resistance , used for processing hard wood, soft wood, ferrous and non-ferrous. | ||||
| YM2T | 14.5 | 2350 | 92 | Fine carbide, High wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc. | ||||
| YM25 | 14.5 | 2150 | 92.2 | Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous,metal and non-metallid materials. | ||||
| Other grades of strips may be offered according to customers' requirement. | ||||||||
Normal Dimension
| Type | T*W*L (mm) | T (mm) | W (mm) | L (mm) |
| FS05 | T x 5 x 320 | 2.0~15.0 | 5 | 320 |
| FS06 | T x 6 x 320 | 2.0~15.0 | 6 | 320 |
| FS07 | T x 7 x 320 | 2.0~15.0 | 7 | 320 |
| FS08 | T x 8 x 320 | 2.0~15.0 | 8 | 320 |
| FS09 | T x 9 x 320 | 2.0~15.0 | 9 | 320 |
| FS10 | T x 10 x 320 | 2.0~15.0 | 10 | 320 |
| FS11 | T x 11 x 320 | 2.0~15.0 | 11 | 320 |
| FS12 | T x 12 x 320 | 2.0~15.0 | 12 | 320 |
| FS13 | T x 13 x 320 | 2.0~15.0 | 13 | 320 |
| FS14 | T x 14 x 320 | 2.0~15.0 | 14 | 320 |
| FS15 | T x 15 x 320 | 2.0~15.0 | 15 | 320 |
| FS16 | T x 16 x 320 | 2.0~15.0 | 16 | 320 |
| FS17 | T x 17 x 320 | 2.0~15.0 | 17 | 320 |
| FS18 | T x 18 x 320 | 2.0~15.0 | 18 | 320 |
| FS19 | T x 19 x 320 | 2.0~15.0 | 19 | 320 |
| FS20 | T x 20 x 320 | 2.0~15.0 | 20 | 320 |
| FS22 | T x 22 x 320 | 2.0~15.0 | 22 | 320 |
| FS25 | T x 25 x 320 | 2.0~15.0 | 25 | 320 |
| FS28 | T x 28 x 320 | 2.0~15.0 | 28 | 320 |
| FS30 | T x 30 x 320 | 2.0~15.0 | 30 | 320 |
| FS32 | T x 32 x 320 | 2.0~15.0 | 32 | 320 |
| FS35 | T x 35 x 320 | 2.0~15.0 | 35 | 320 |
| FS40 | T x 40 x 320 | 2.0~15.0 | 40 | 320 |
| FS45 | T x 45 x 320 | 2.0~15.0 | 45 | 320 |
| FS50 | T x 50 x 320 | 2.0~15.0 | 50 | 320 |
| FS55 | T x 55 x 320 | 2.0~15.0 | 55 | 320 |
| Tolerance (mm) | ||
| L | >150 | -0~+L*2% |
| W | ≤8.0 | -0~+0.35 |
| 8.0~25.0 | -0~+0.50 | |
| 25.0~35.0 | -0~+0.70 | |
| >35.0 | -0~+1.20 | |
| T | ≤15.0 | -0~+0.40 |
| Flatness (mm) | ||
| W | ≤20.0 | ≤0.50 |
| >20.0 | ≤0.60 | |
Next please choose the types that you want

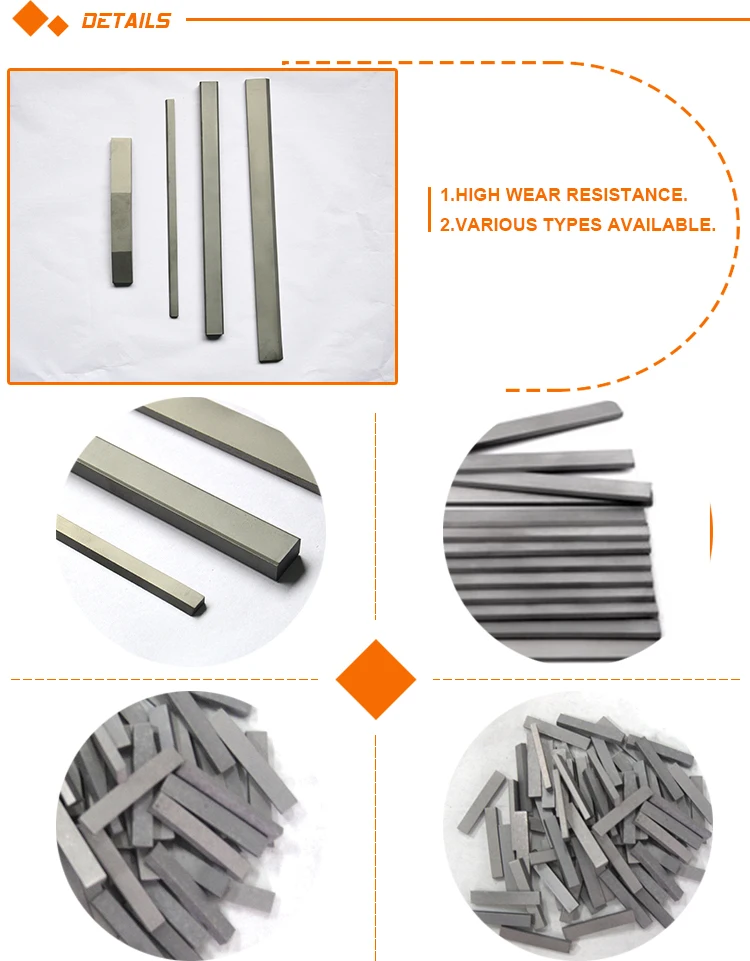

Product types of finished hard alloy k10 carbide strip
How to ensure the high quality standard?
Do you want to know the details?
Please follow......

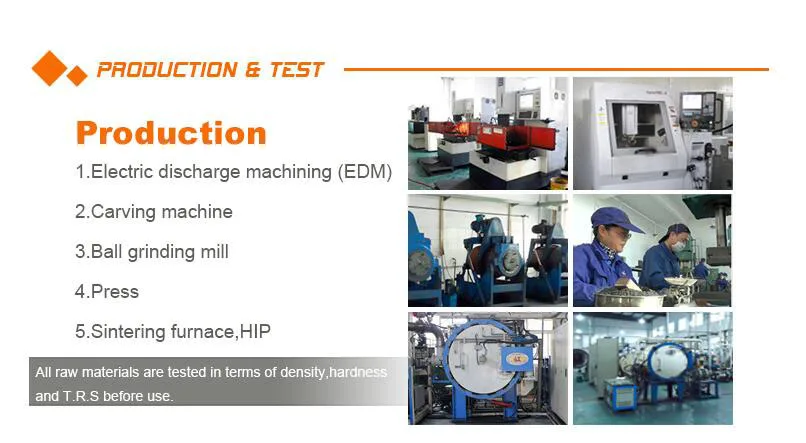

1, Soon after the order is confirmed, K20 carbide stripproducts will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine

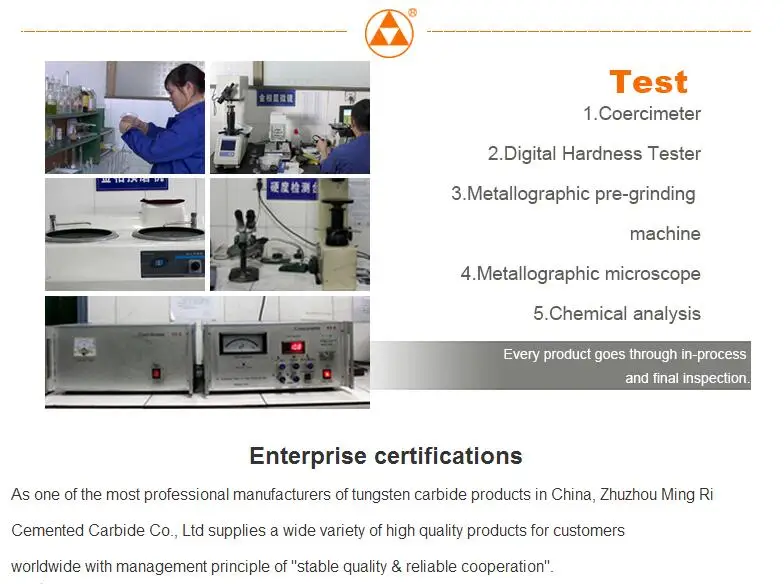

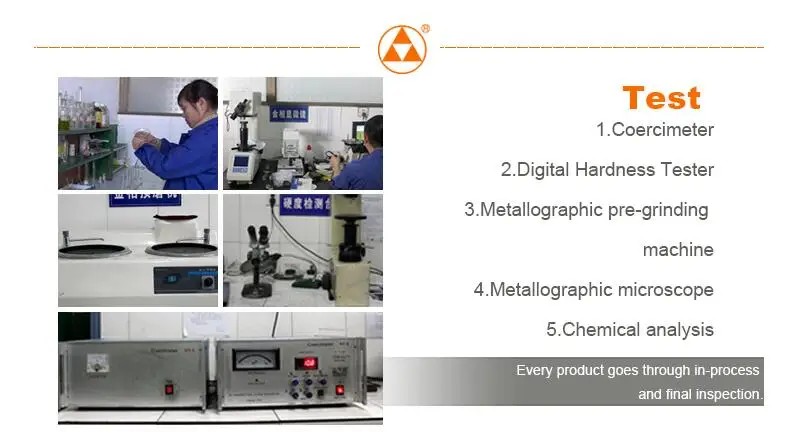

2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of K20 carbide stripsamples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production
3, Bulk production ,press the raw materials to shape blanks,and all K20 carbide strip must be passed by semi finished inspection,
4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.
5, 1). cleaning/tumbling is to make the K20 carbide strip look more beautiful.
2).The K20 carbide strip can be ground according to customers’ order to a tolerance of +/-0.05
Enterprise certifications
As one of the most professional manufacturers of tungsten carbide products in China, Zhuzhou Ming Ri Cemented Carbide Co., Ltd supplies a wide variety of high quality products for customers
worldwide with management principle of"stable quality & reliable cooperation".
We passed ISO9001:2000 in 2003 and keep improving the quality everyday. We have been always trying our best to provide our customers with high quality, the best price and satisfactory services.
Why choose us?
1.Zhuzhou Mingri has the richest molds stock of carbide strips
2.Over 19 years of stable relationship with our customers.
3.The most advanced tooling house.
4.The largest production capacity and fastest delivery.
5.The most reliable testing machines for all specifications.
6.The best and reliable after service.
Hello,konw more details about sending an effective inquiry email
is convenient for you and save time for everyone.
| Packing | Carton and inner plastic box. |
| Shipping | UPS,TNT,EMS,Fedex,DHL,or as you request. |
